M1S

CNC Router

badges2

MOTORS
850W servo motors for smooth, powerful motion LED INDICATOR
LED machine status indicator CONTROLLER
Industrial handheld controller with 4.3" colour display CAST

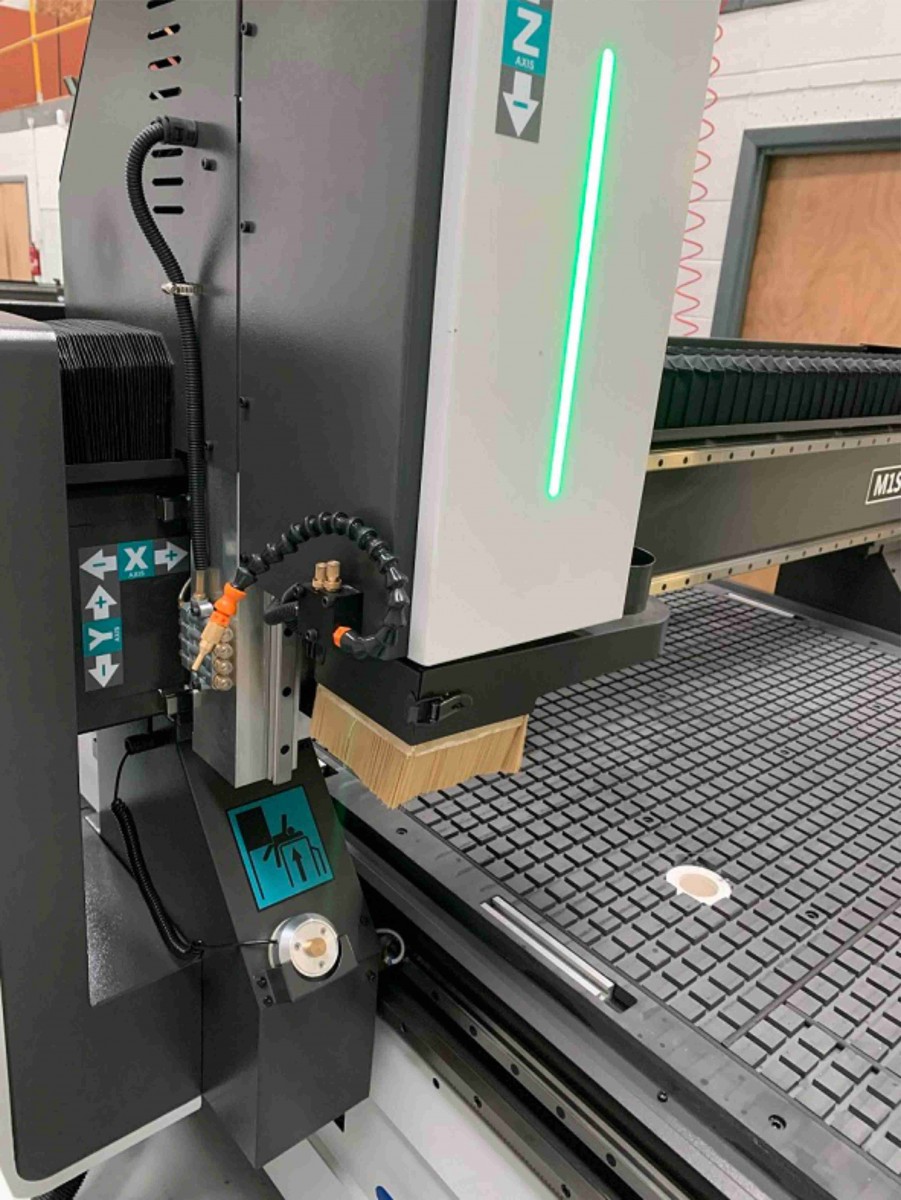

Cast Z-axis assembly for maximum rigidity WORKING AREA
High-flow vacuum bed with integrated T-slots M1S features

Industrial. Precise. Production-Ready.

Designed by us to our UK specification, the Exel CNC M1S is a top-of-the-line, pro-level, high-precision CNC router built for serious production environments. Featuring a cast Z-axis assembly, ultra-rigid heavy-duty frame, and high-speed servo drives, the M1S delivers exceptional accuracy, smooth motion and long-term reliability.

▾ Read more

Supplied from stock and comprehensively specified as standard, the M1S includes premium features throughout, making it an ideal solution for high-throughput woodworking, plastics, composites and non-ferrous machining.

M1S Finance CNC router

Specifications based on the 1300 x 2500mm working area model.

Machine Size & Capacity
Machine Dimensions (L x W x H)
3400 x 2200 x 1900mm
Working Area (X x Y x Z)
1300 x 2500 x 180mm
Weight
1800kg
Performance
Max Rapid Speed
60m/min
Max Cutting Speed
20m/min
Accuracy
0.025mm (0.001")
Build & Motion System
Construction
Heavy-duty steel frame with steel and cast gantry
X/Y Drive System
German helical rack with gear reducer
Z Drive System
Ballscrew (Taiwan)
Linear Guides
25mm linear square rails
Motors
850W servo motors
Cutting System
Spindle Options
4.5kW air-cooled, 24,000rpm, ER32
or 5.5kW water-cooled, 24,000rpm, ER25

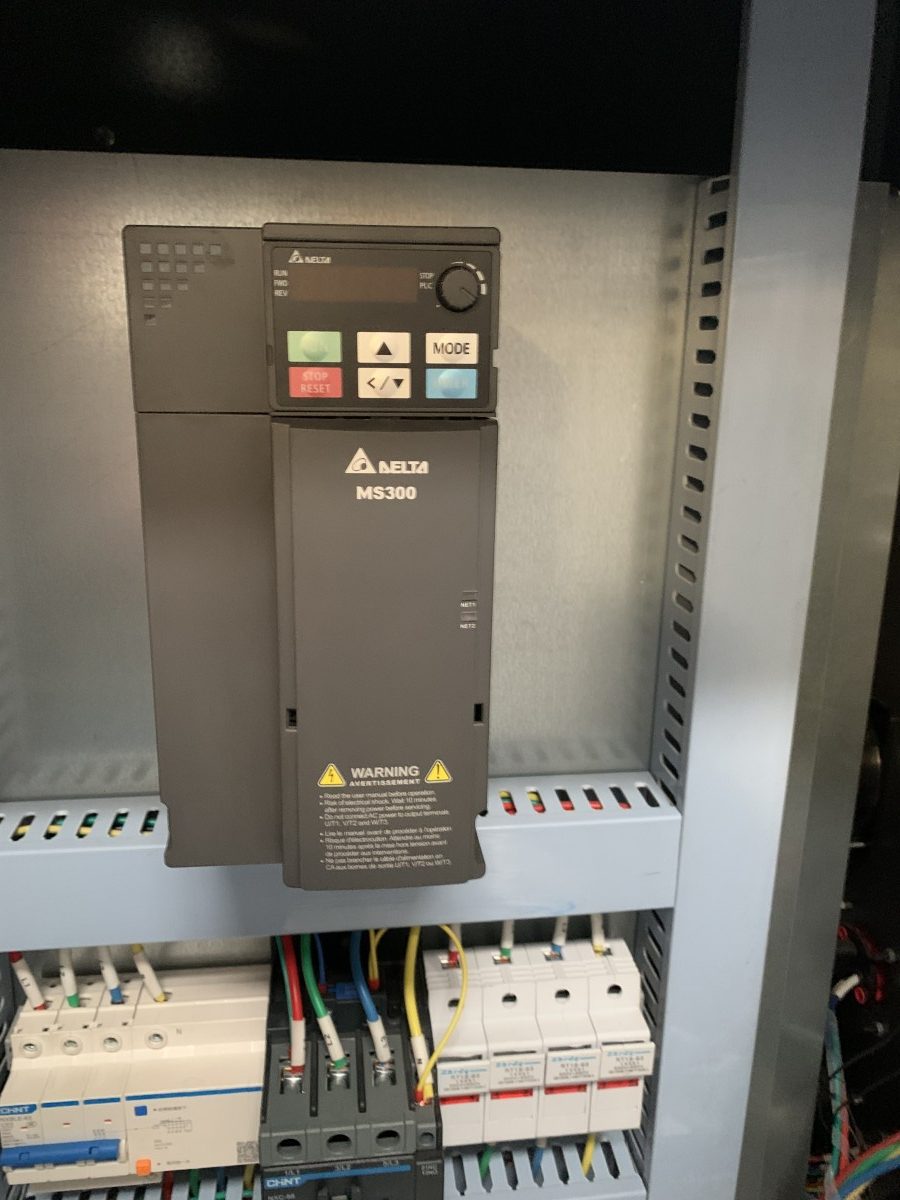

Spindle Inverter
Delta drive
Spindle Brake Resistor
Included
Tool Height Sensor
Included
Mist Cooling System
Included
Workholding & Extraction
Vacuum Bed
Yes, with integrated T-slots
Vacuum Pump
7.5kW side channel
Vacuum Pump Filter
Included
Vac Bed + Dust Controls
Located on side console
Dust Foot
Included
Dust Extraction
Twin bag extractor
Control & Operation
Control System

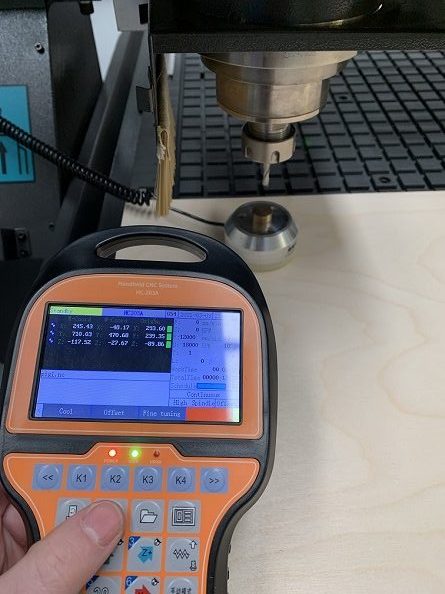

Industrial handheld controller with 4.3" colour screen
Data Transfer
USB
Machine Systems
Lubrication
Automatic oiling system
Levelling
Self-levelling feet
Technical & Power
Power Supply
3-phase, 400V, 19.4kW
Air Supply
Required for mist coolant
Software & Support
Software
UCanCam
Warranty
1 Year as standard
  • Plastic fabrication
  • Furniture production
  • Kitchens and joinery
  • Signage and advertising
  • Stairs and cabinetry
  • Composites and aerospace materials
  • Musical instruments
  • Laminates and sheet materials
  • Medical and orthotic components

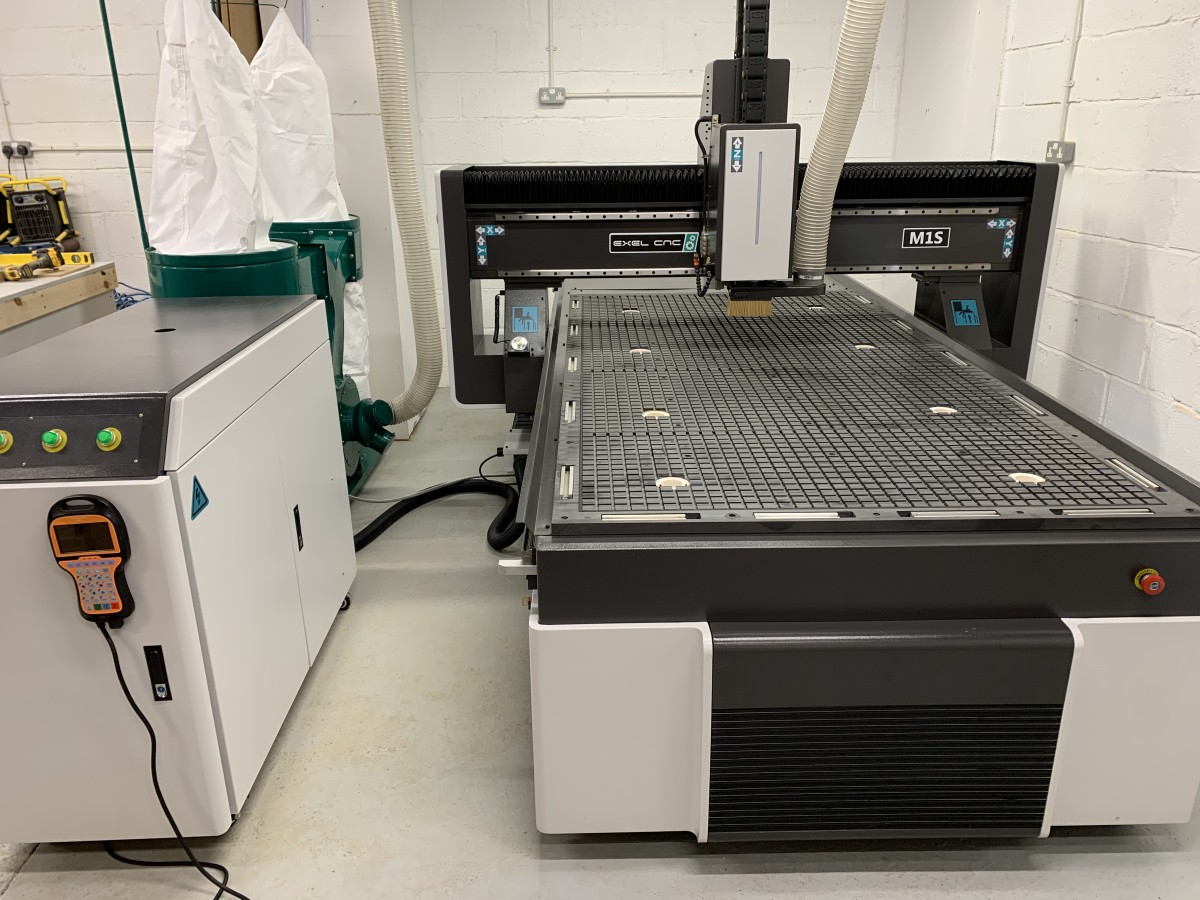

  • M1S CNC router with heavy-duty steel frame and cast gantry
  • Cast Z-axis assembly for maximum rigidity
  • 4.5kW air-cooled spindle (24,000rpm, ER32)
  • 850W servo motors
  • German helical rack and gear reducer (X/Y)
  • 25mm linear square rail guides
  • Vacuum bed with integrated T-slots

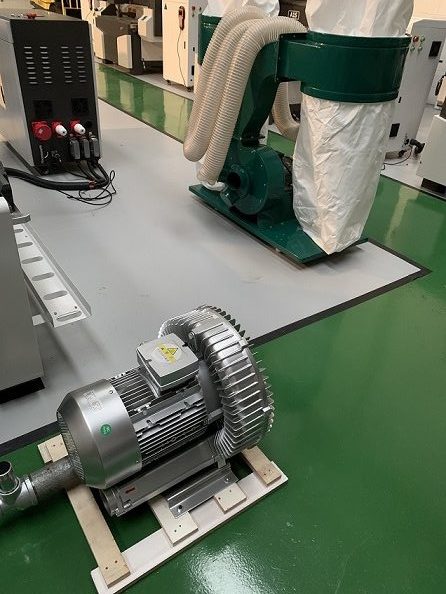

  • 7.5kW side channel vacuum pump with filter

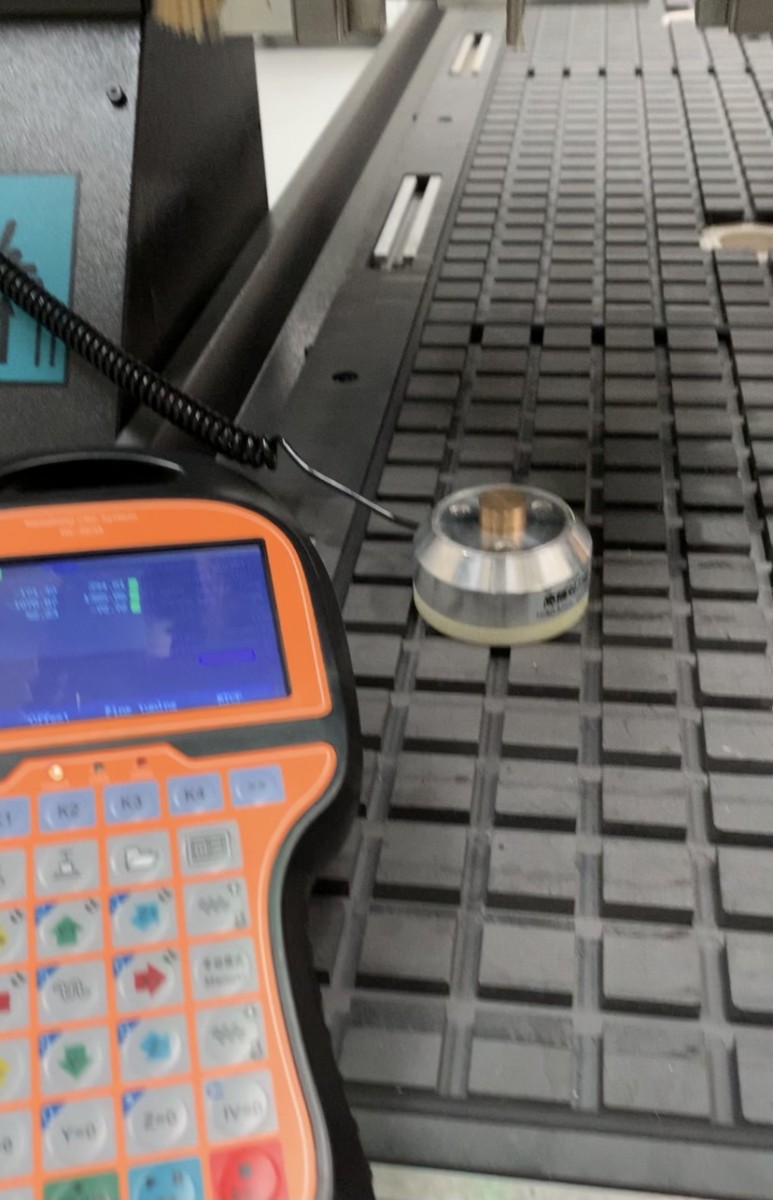

  • Automatic tool height sensor
  • Automatic lubrication (oiling) system
  • Mist cooling system included
  • Auto rise/fall dust foot

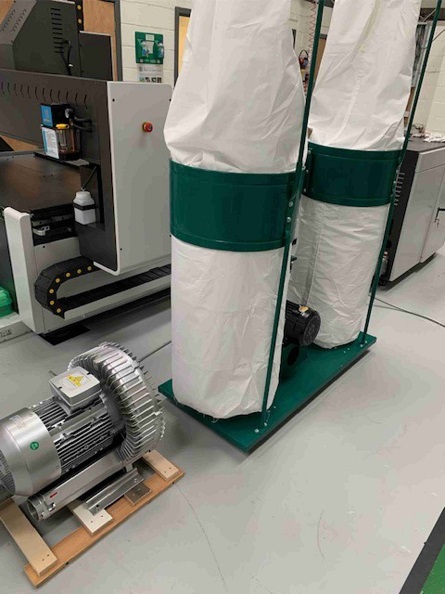

  • 3hp twin bag dust extractor

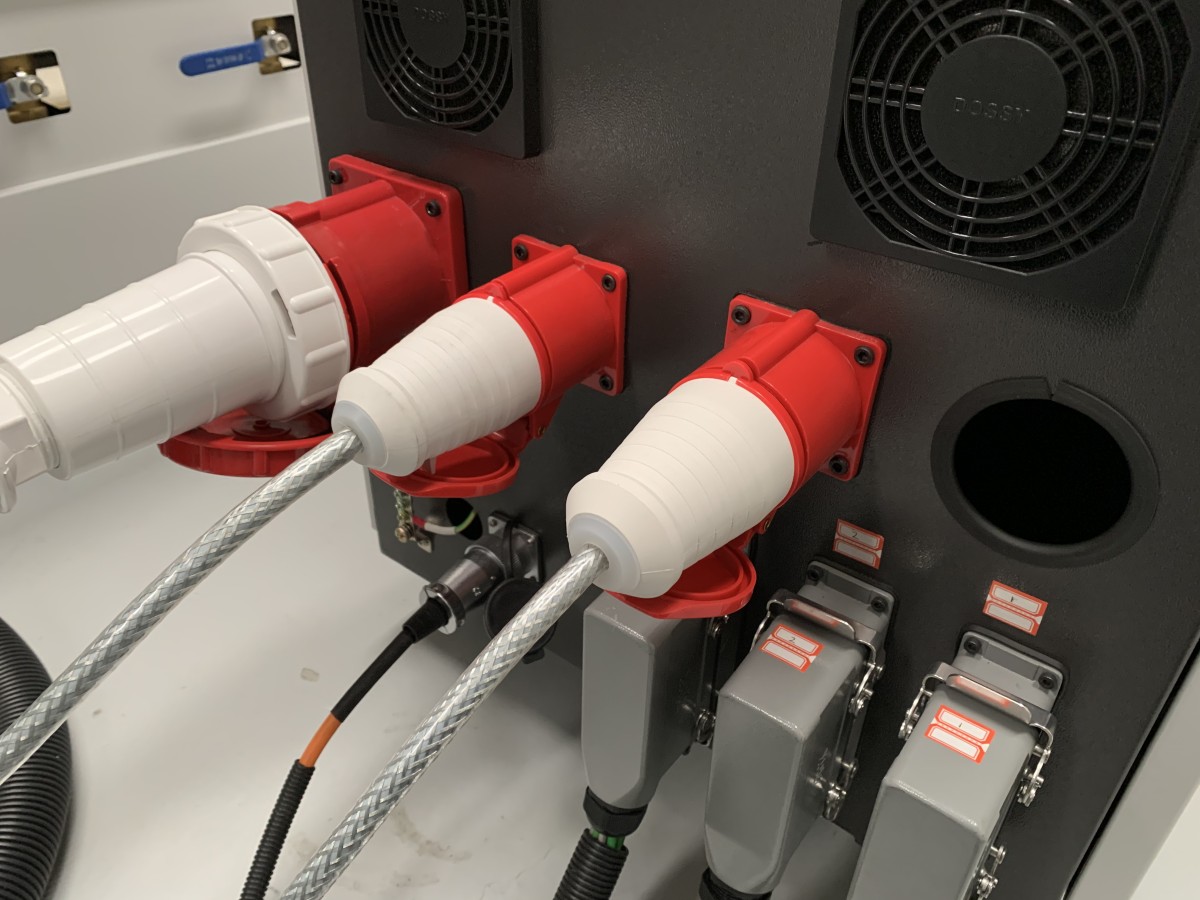

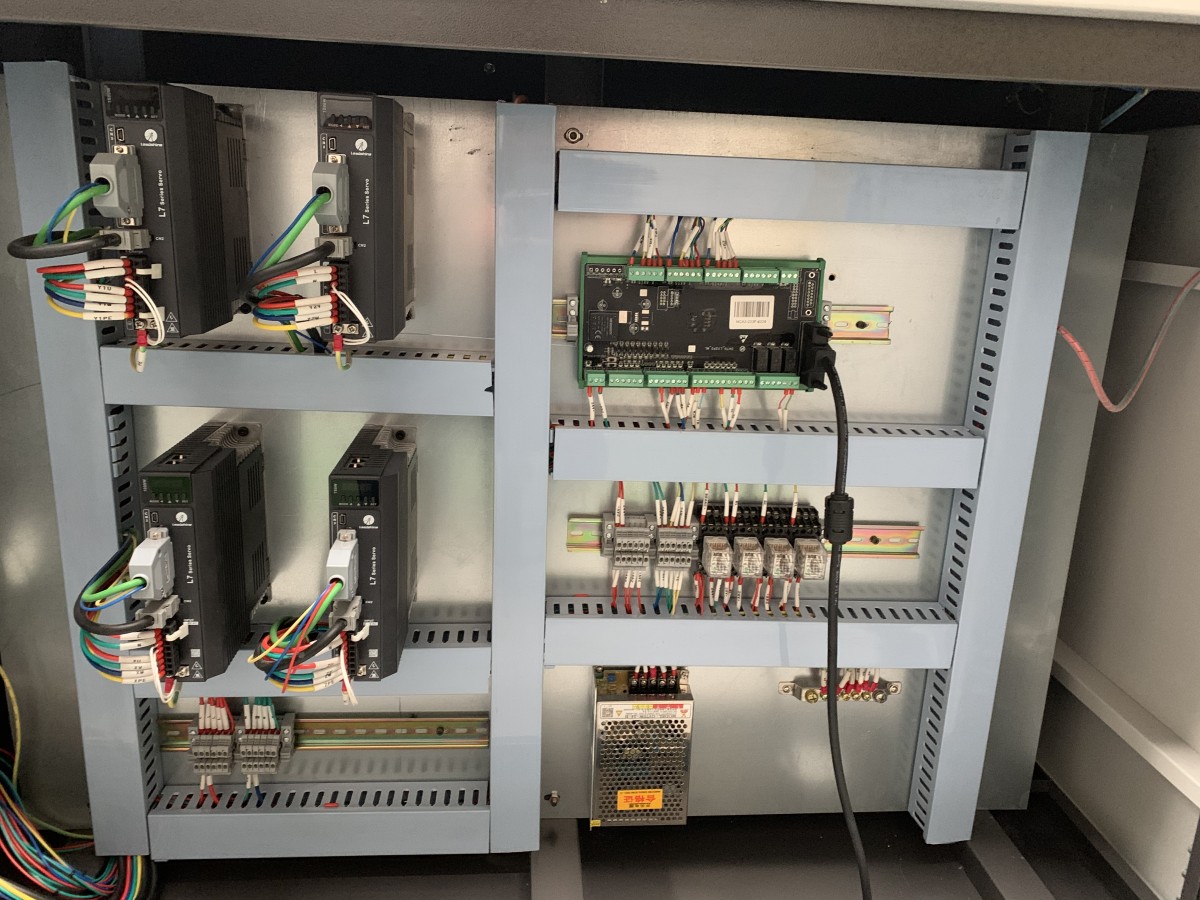

  • Side console housing electrics and controls
  • Ucancam software included
  • 12-month parts and labour warranty
Download Datasheet

Configure Your Machine

Machine Working Area
Optional Extras

TOTAL PRICE

£16,995 + VAT

Size: 1300 x 2500mm

Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.


    Includes delivery and final pricing based on your configuration.


    By submitting this form, you agree to be contacted by EXEL CNC about your quotation request and understand that delivery costs will be confirmed separately where applicable.


    By clicking send, I agree and consent to the Terms of Use and Privacy Policy, which explains how EXEL CNC use and collect personal information.


    Finance available from £386 per month*

    *Based on the 1300 x 2500mm machine price excluding VAT, with VAT payable upfront and a 60-month term.

    Finance is subject to status and eligibility. Terms and conditions apply.

    Get a finance quote

    Media

    Have a question?

    uk-icons

    The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

    Contact Us

    Industrial. Precise. Built for Production. The Exel CNC M1S CNC router is a powerful servo-driven machine designed for fast, accurate cutting across plastics, wood and composite materials. With a heavy-duty steel frame, vacuum bed and 4.5kW spindle, it delivers reliable performance for demanding daily production. For automatic tool changing and higher production output, compare the M1A ATC CNC router.
