M1A

CNC Router


Exel CNC M1S features MOTORS
850w servo motors for
smooth powerful operation
LED INDICATOR
Machine status

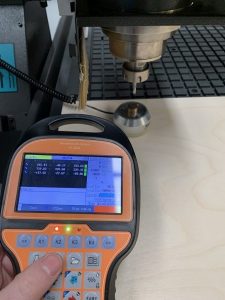

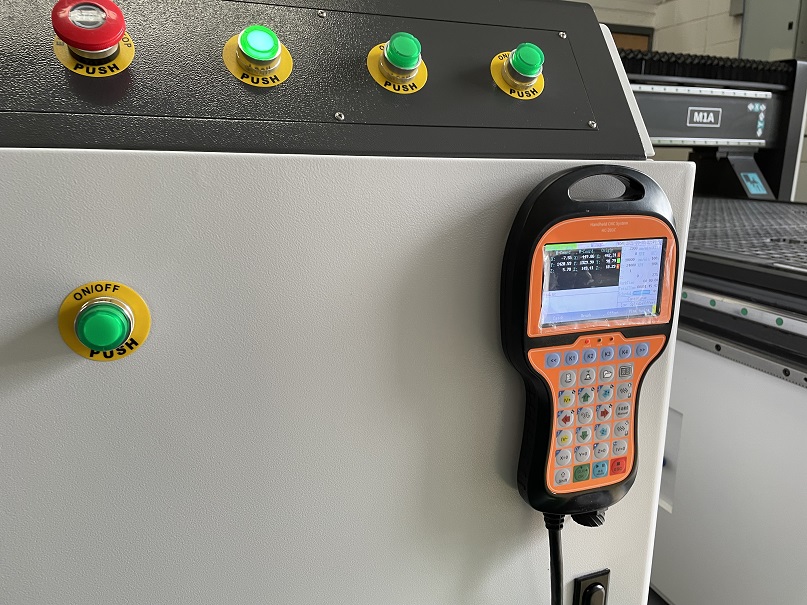

CONTROLLER
Latest generation
4.3" full colour
display

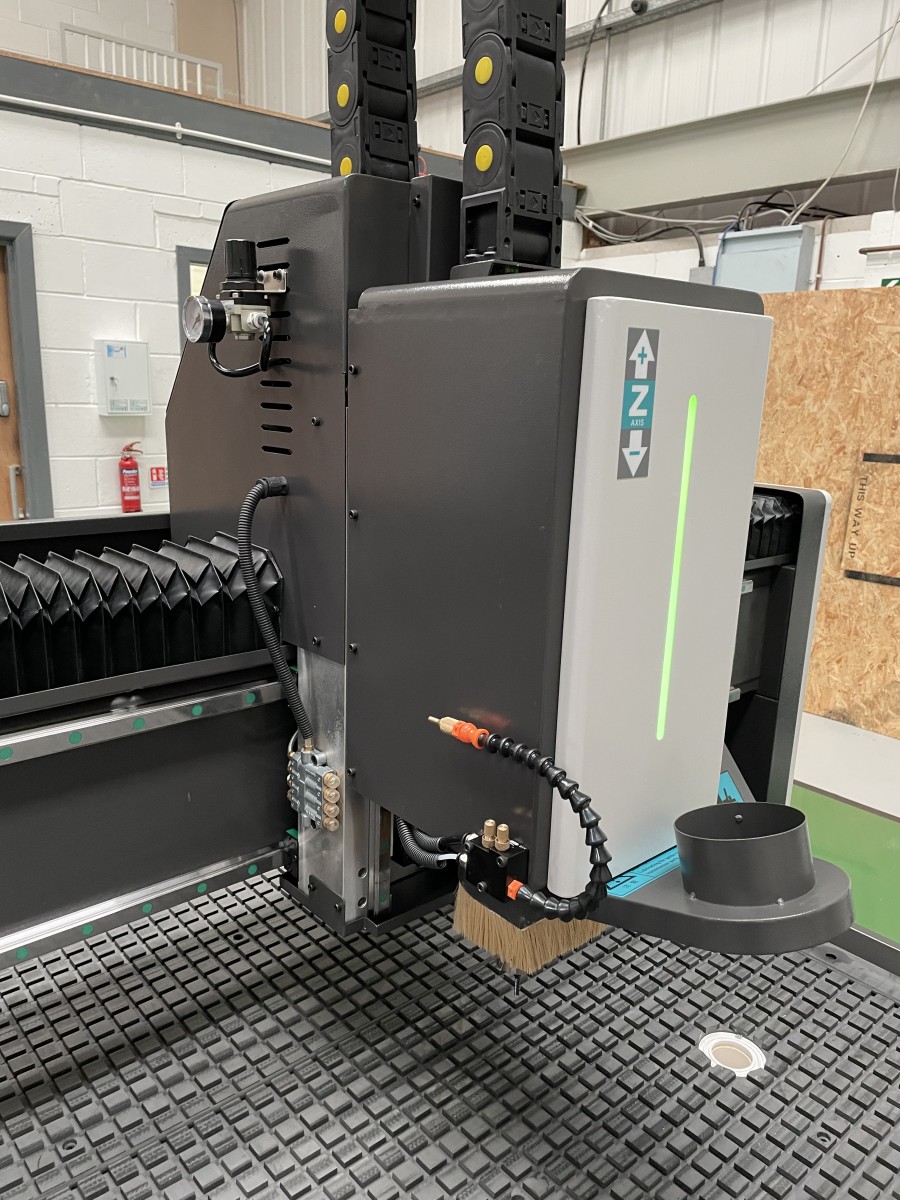

CAST
Z axis assembly for
maximum rigidity
WORKING AREA
1220x2440mm bed with 7.5kw
vacuum pump

Specification

Machine Dimensions LxWxH

3400mm x 2300mm x 1900mm


Working Area X Y Z

1300mm x 2500mm x 180mm


Weight

2200Kg


Construction

Heavy duty steel/cast Z axis


Max Rapid speed

60m/min


Max cutting speed

20m/min


Acuracy

0.025mm (0.001")


Controller

Handheld Industrial 4.3" colour screen


Data transfer

USB


Linear guides

25mm Linear square rail

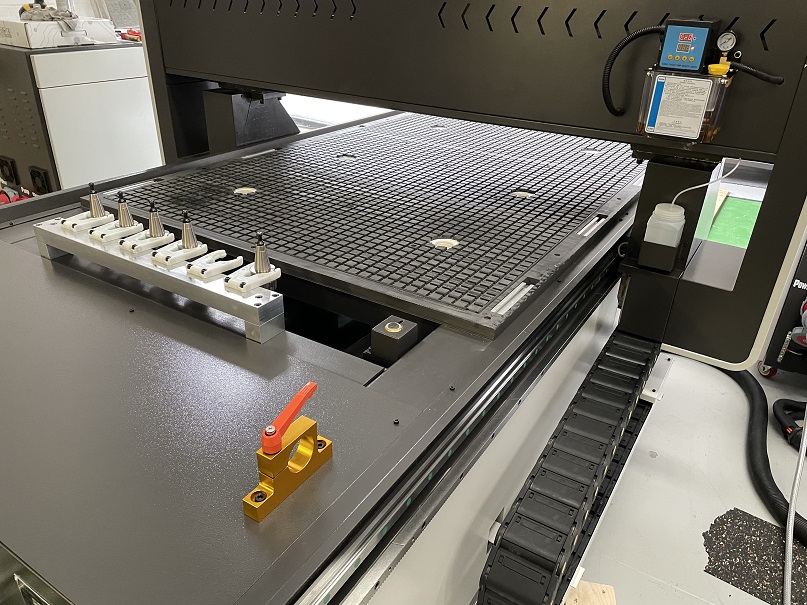

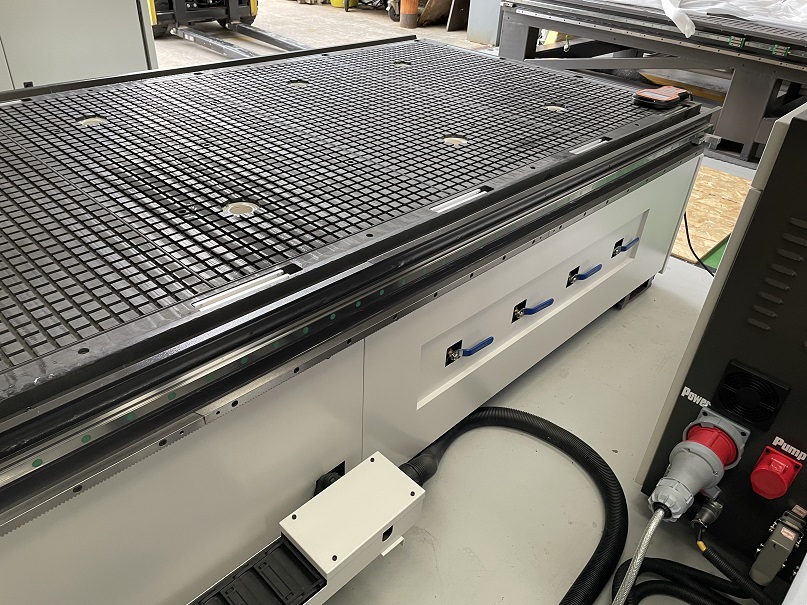

Vacuum bed

Yes, with integrated t-slots

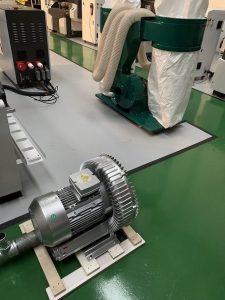

Vacuum pump

7.5Kw side channel


Vacuum pump filter

Yes, included


Vac bed + dust on/off

Yes, located on side console


X/Y drive system

Precision helical rack


Z drive system

Tbi ballscrew


Motors

servo motors 850w


Spindle

9Kw air cooled, 24k rpm, iso30 ER32

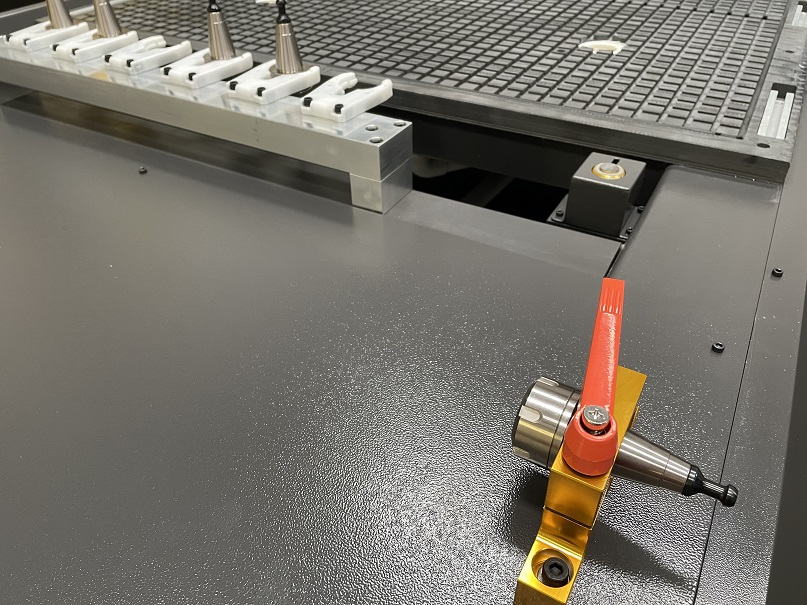

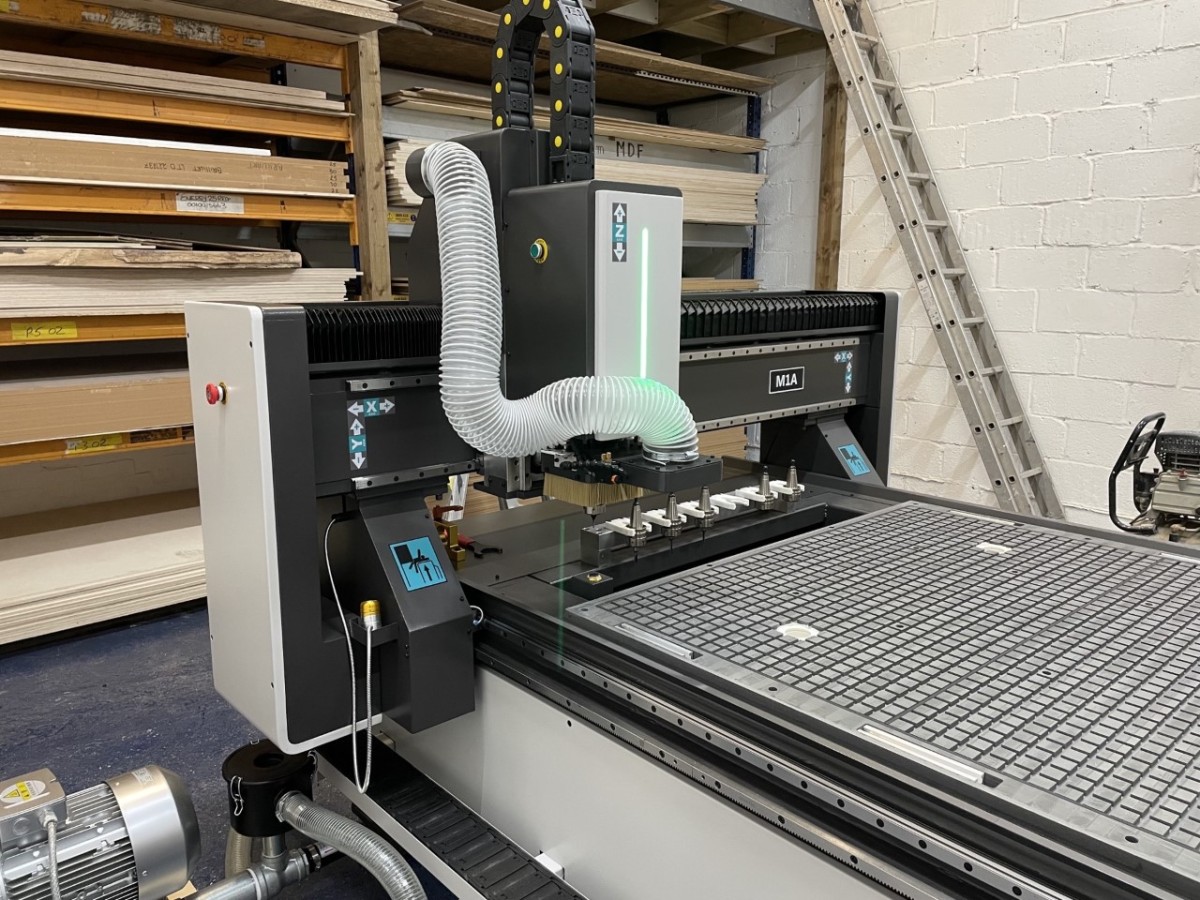

No Tools

6 tool ATC rack


Spindle inverter

Delta drive MS


Spindle brake resistor

Yes, spindle stop within 2 seconds


Auto tool height sensor

Yes


Mist coolant system

Yes, for cutting aluminium/non ferrous


Power supply

3ph, 380v+10%, 28Kw

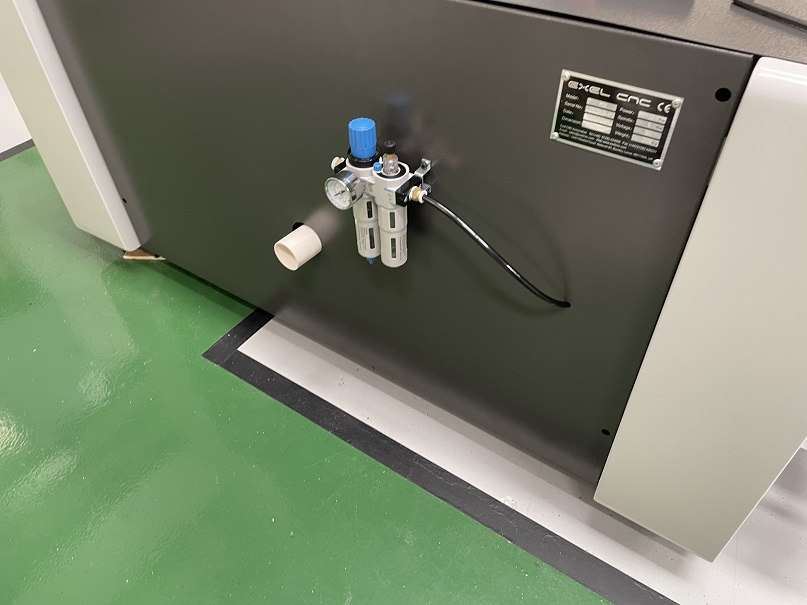

Air supply

yes, required


Levelling

Levelling damping feet


Dust foot

Yes, auto rise and fall foot included

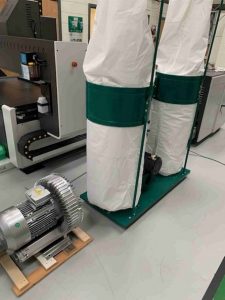

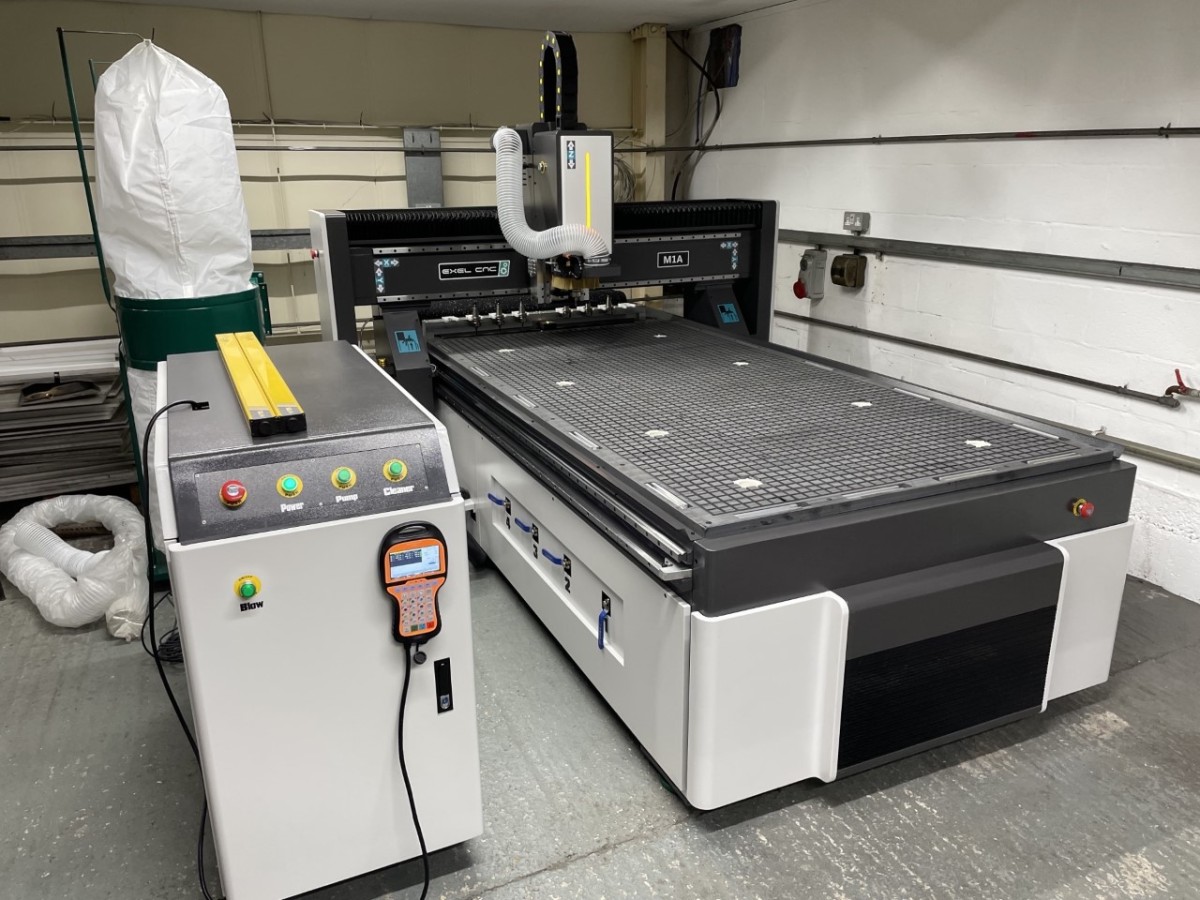

Dust extraction

twin bag extractor

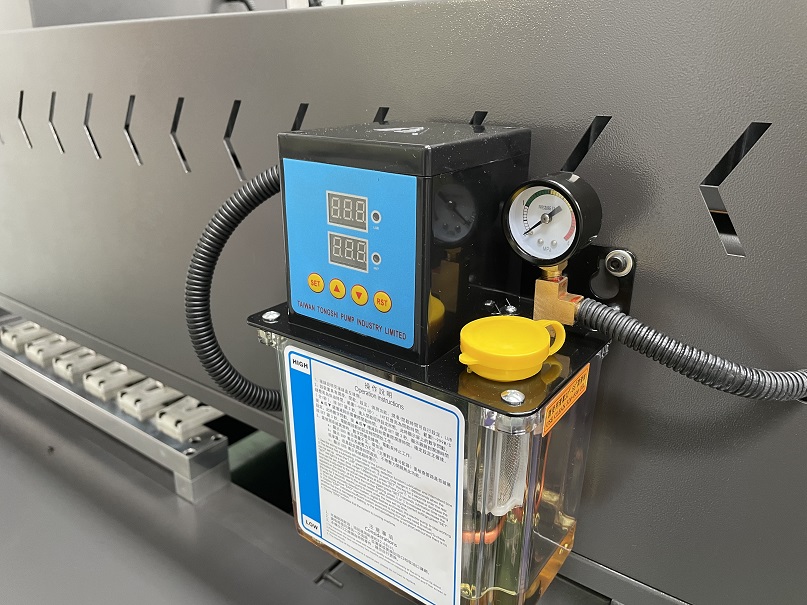

Lubrication

Automatic lubrication


Software

Ucancam


Warranty

24 months as standard

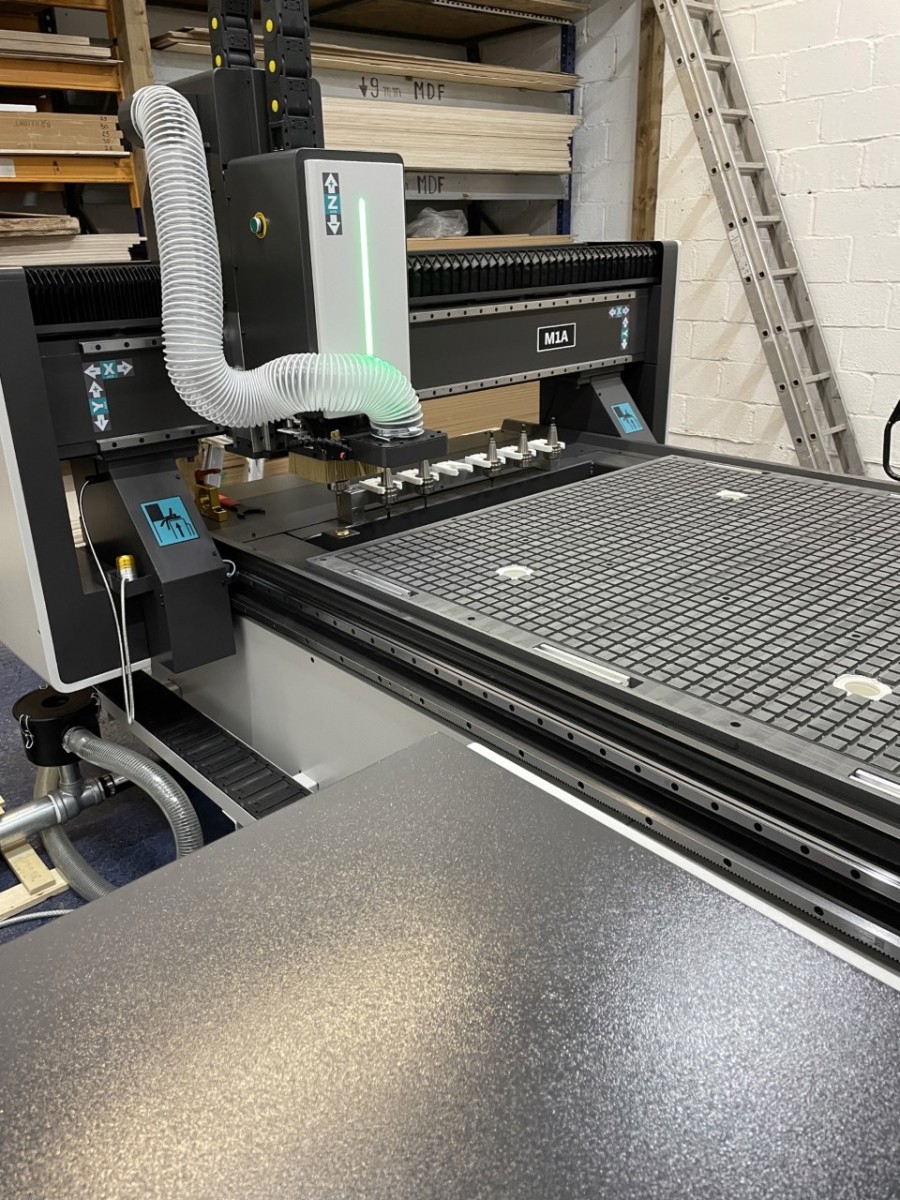

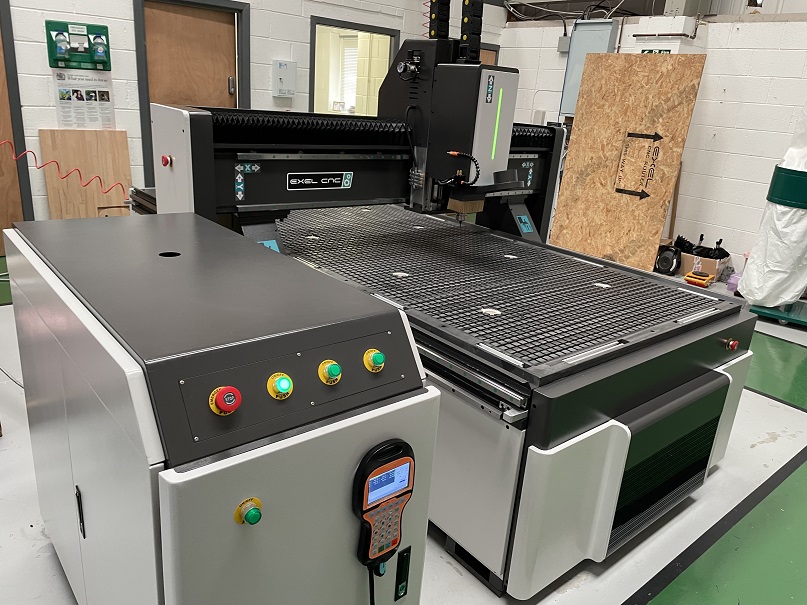

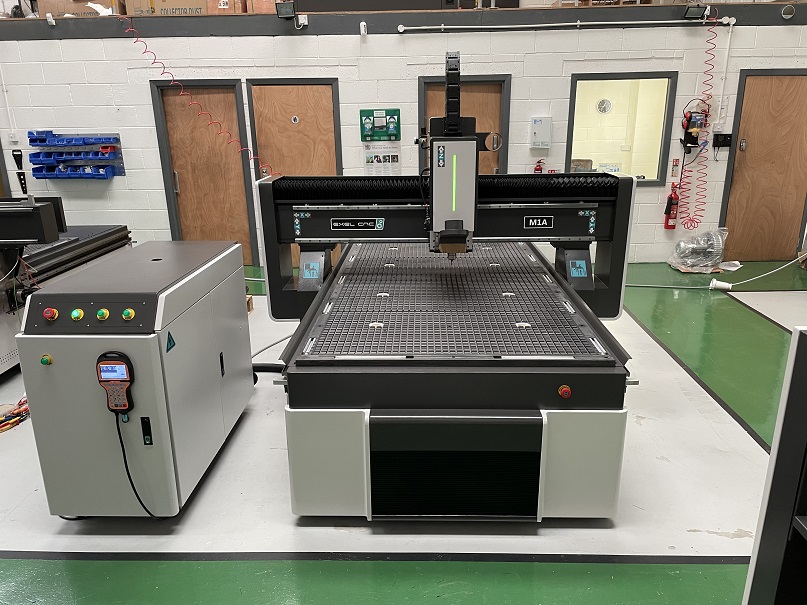

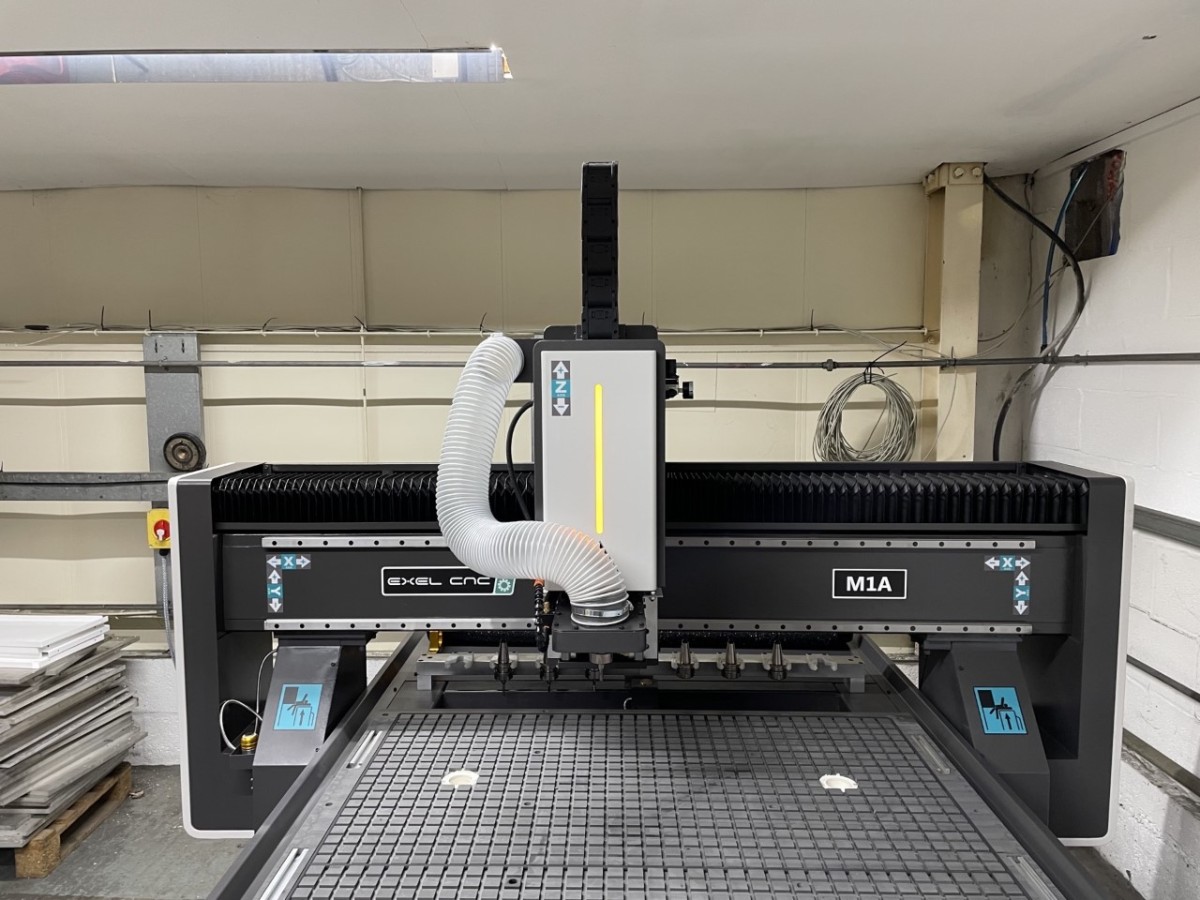

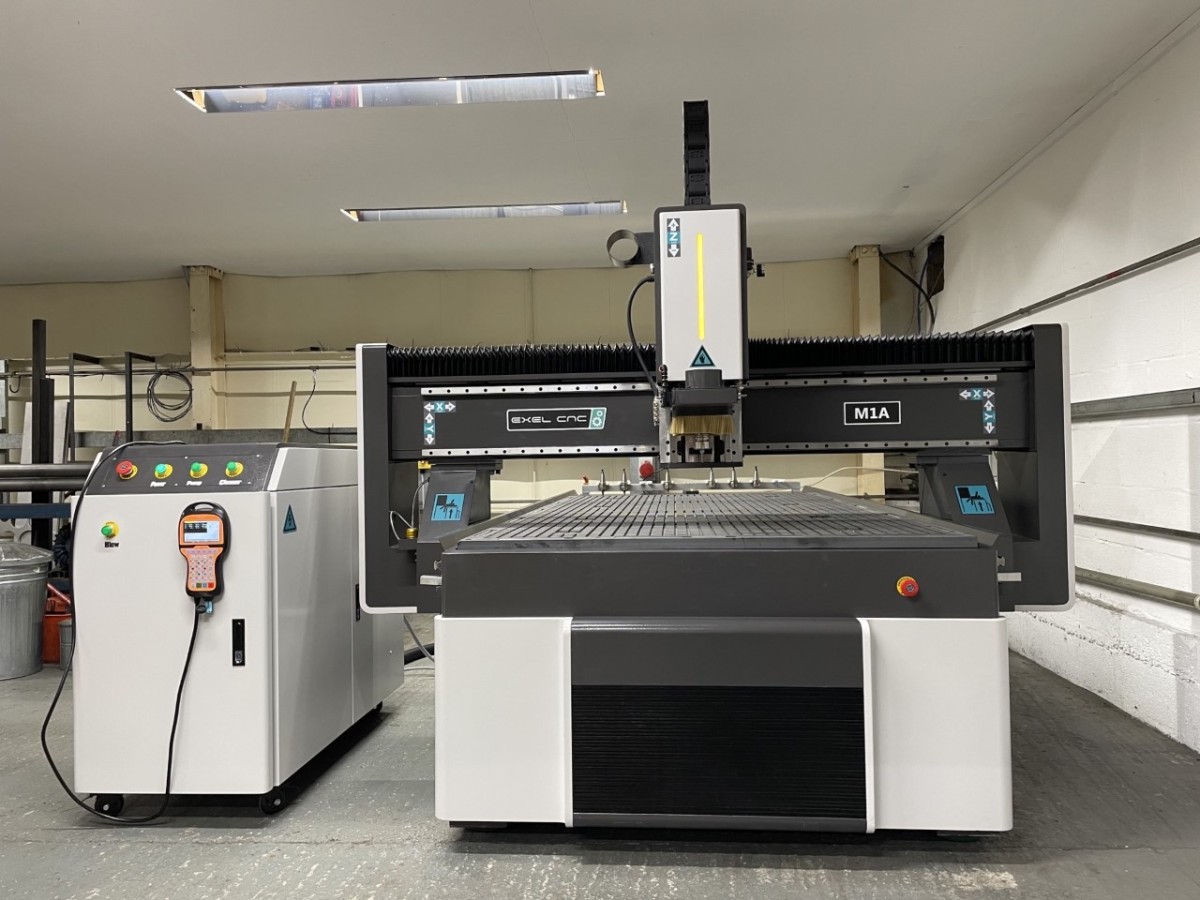

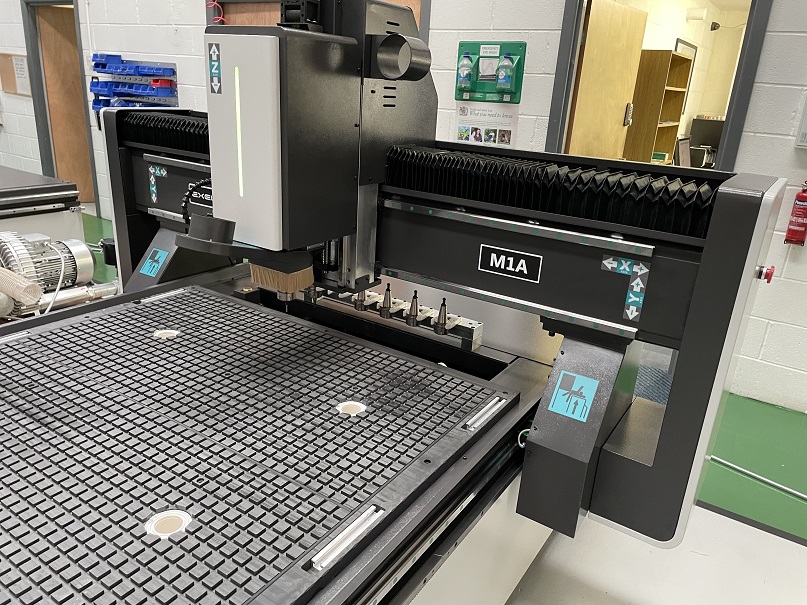

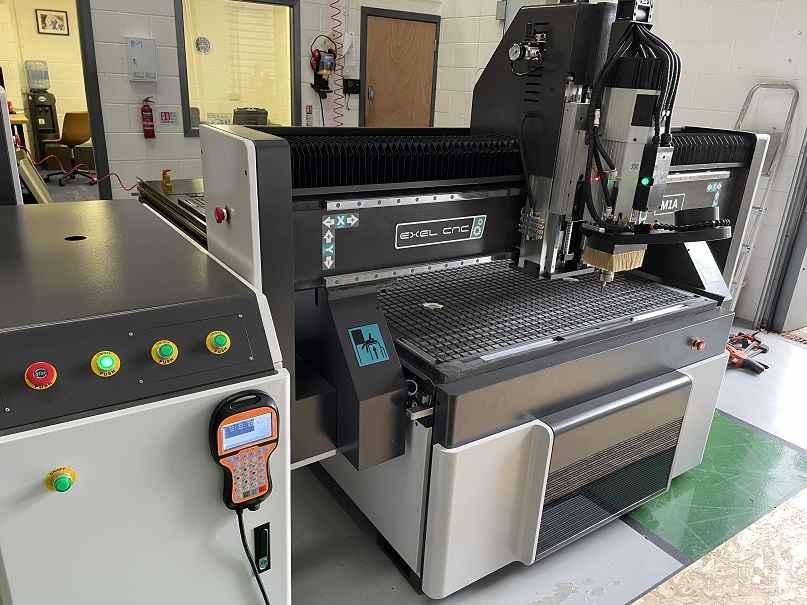

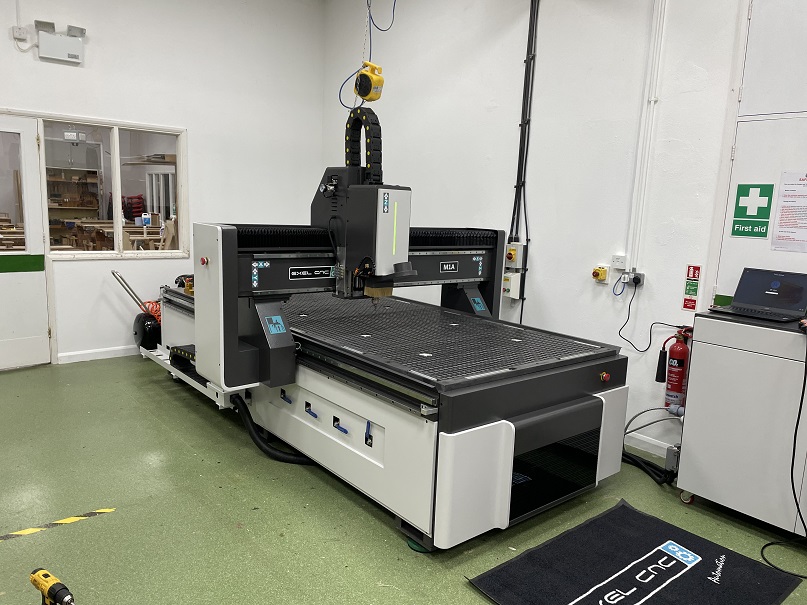

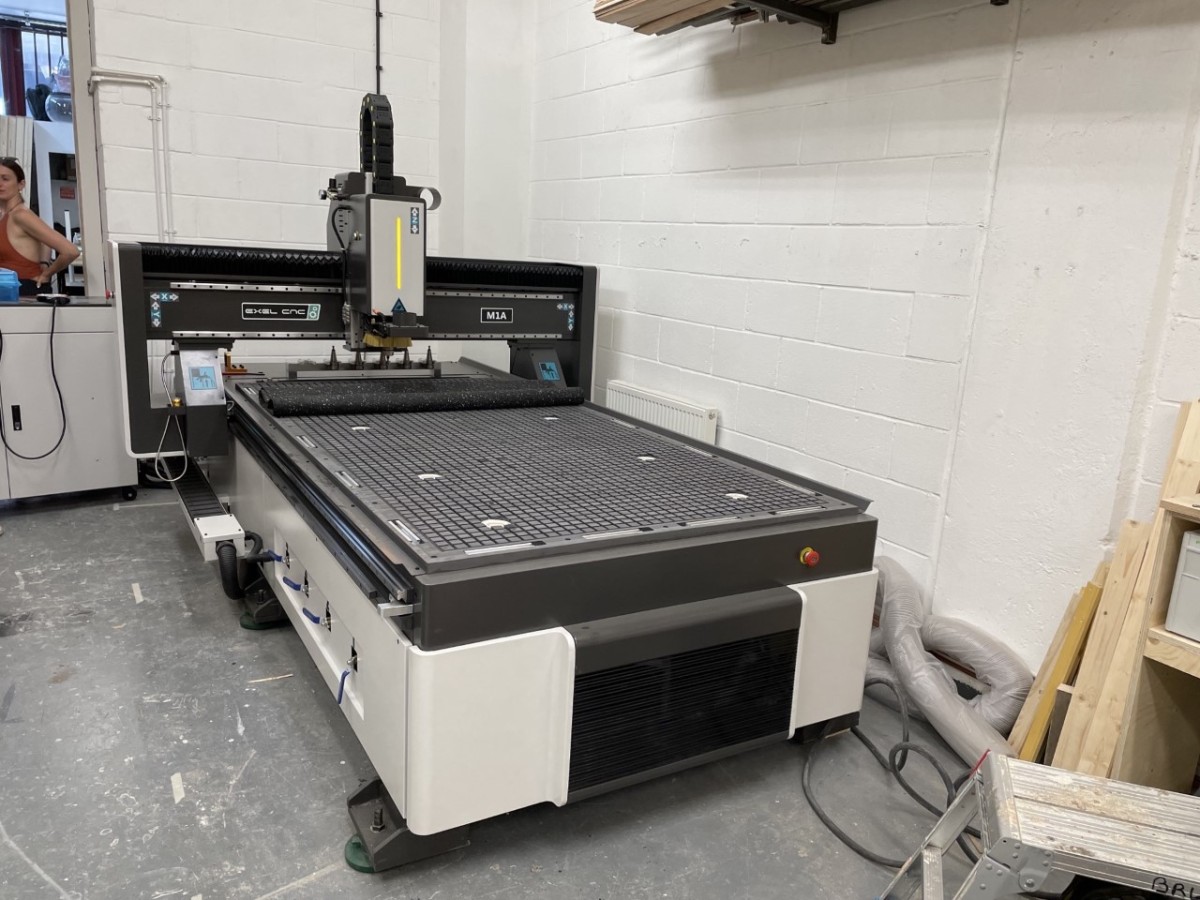

M1A CNC Router

Our M1A flagship auto tool changer series CNC router is a serious heavy duty production machine. Unrivaled in its premium class they feature a comprehensive spec from standard. Our M1A is available in 4 sizes, 1.2x2.4m, 1.5x3m, 2mx3m and 2mx4m. These are super fast, smooth, accurate CNC machines.

Read more


M1A

CNC Router

Download Datasheet

Price

£21,995 ex vat *options are available

Media

Have a question?


The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

Our M1A premium auto tool change series CNC routers are serious heavy duty machines. A host of features such as 9kw ATC spindle, cast Z axis, bellow way covers, 60m/min rapids make this a true market leader.  Our M1A is available in 4 sizes, 1.2×2.4m, 1.5x3m, 2mx3m and 2mx4m. These are super fast, smooth, accurate CNC machines.
