LM-30W

CNC Fiber Laser Marker

badges2

LASER SOURCE
Raycus 30w fiber PUSH BUTTON
Controls for laser, head
rise and fall, controller WORKING AREA
150mm x 150mm ENCLOSURE
Safety enclosure SOFTWARE
JCZ EZcad software
is quick & simple to use CNC Fiber Laser

Fast. Precise. Permanent.

The Exel CNC LM-30W is a high-performance fiber laser marking system designed for fast, accurate and permanent engraving across a wide range of materials. With marking speeds of up to 7000mm/s and excellent repeatability, it is ideal for detailed industrial marking, traceability and identification work.

▾ Read more

Suitable for engraving steel, stainless steel, aluminium, ceramics, plastics and plated materials, the LM-30W is particularly well suited to serial numbers, ID plates, automotive components and small precision parts. Its fully enclosed design ensures safe, clean operation in workshop and production environments.

Suitable for cutting:

    •
    • PCB marking
    • Jewellery engraving
    • Microchips and electronic components
    • Medical instruments
    • Stainless steel anneal marking
    • Packaging and cartons
    • Automotive components
    • Serial numbers and ID plates
  • LM-30W CNC fiber laser marking machine
  • 30W fiber laser source
  • Fully enclosed cabinet with sliding safety door
  • Sino Galvo scanner head
  • JCZ EZcad laser marking software
  • Levelling feet and castors
  • 12-month parts and labour warranty
Machine Size & Build
Machine Dimensions (L x W x H)
1000 x 750 x 1650mm
Enclosure
Sliding door, fully enclosed
Levelling
Levelling feet and castors
Weight
210kg
Marking Performance
Marking Area
150 x 150mm
Marking Speed
Up to 7000mm/s
Marking Depth
Up to 0.4mm (material dependent)
Repeat Position Accuracy
0.01mm
Laser System
Laser Type
Fiber
Laser Power
30W
Laser Source
Raycus
Scanner Head
Sino Galvo
Laser Wavelength
1064nm
Control & Software
Software
JCZ EZcad
Technical & Power
Power Consumption
500W
Power Supply
AC 220V, 50Hz
Software & Support
Warranty
1 Year as standard
Download Datasheet

Configure Your Machine

Optional Extras

TOTAL PRICE

£6,995 + VAT

Base machine price

Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.


    Includes delivery and final pricing based on your configuration.


    By submitting this form, you agree to be contacted by EXEL CNC about your quotation request and understand that delivery costs will be confirmed separately where applicable.


    By clicking send, I agree and consent to the Terms of Use and Privacy Policy, which explains how EXEL CNC use and collect personal information.


    Finance available from £167 per month*

    *Based on the base machine price excluding VAT, with VAT payable upfront and a 60-month term.

    Finance is subject to status and eligibility. Terms and conditions apply.

    Get a finance quote

    Media

    Ready to Upgrade Your Cutting Capability?

    Speak to our team today for a tailored quote, material cutting advice, or to arrange a live machine demonstration.

    Request a Quote
    Call Our Sales Team
    uk-icons

    The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

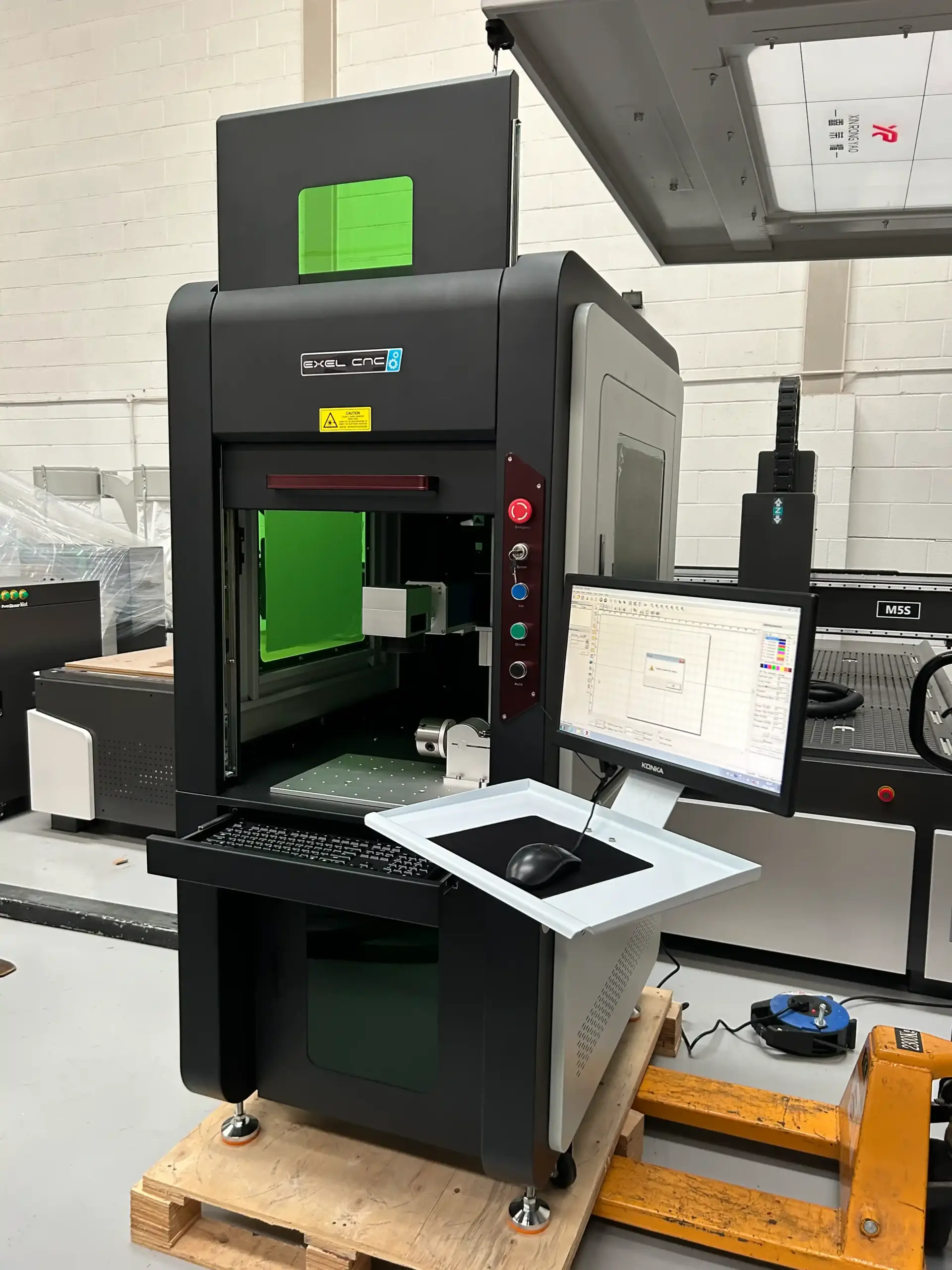

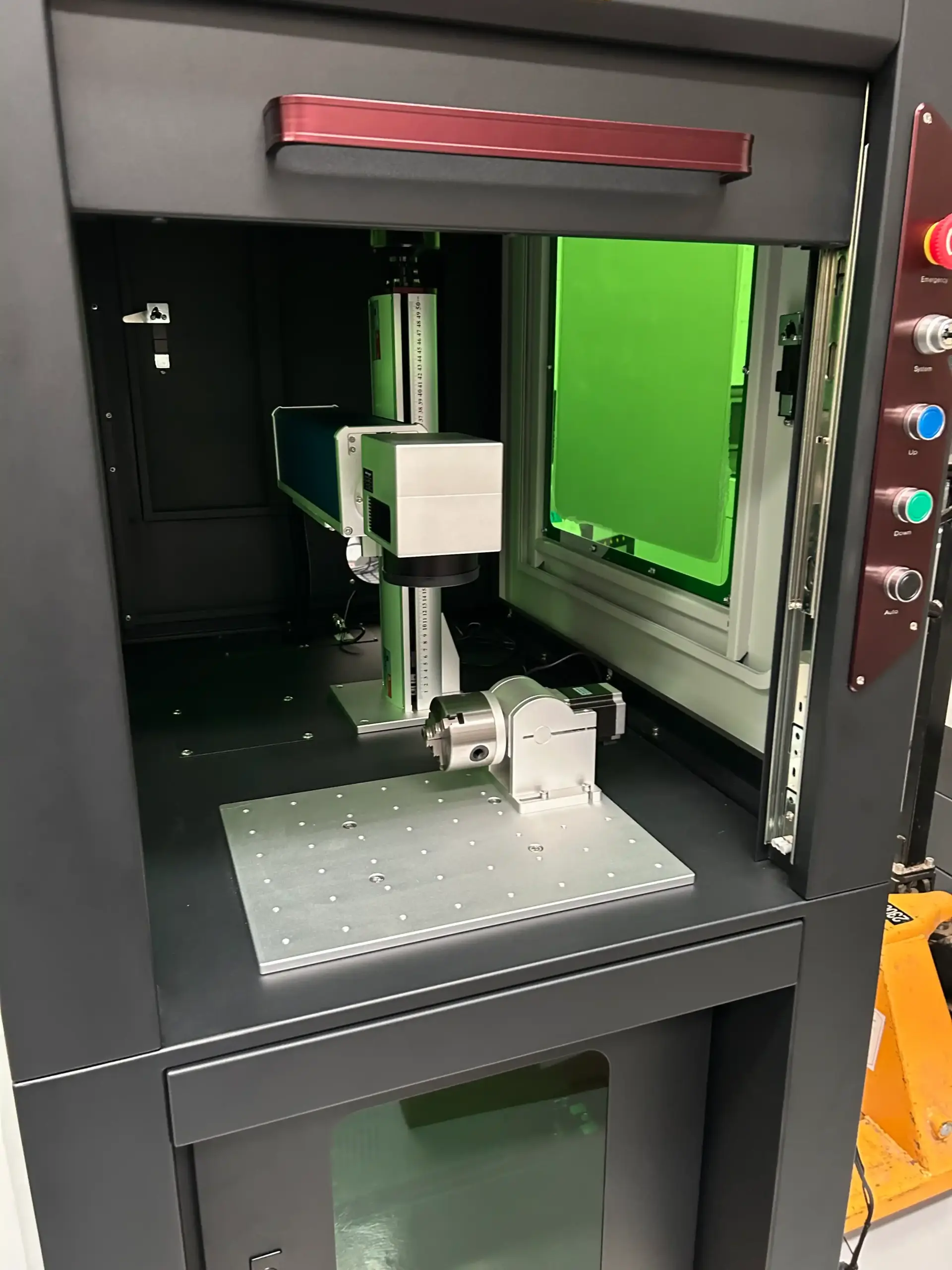

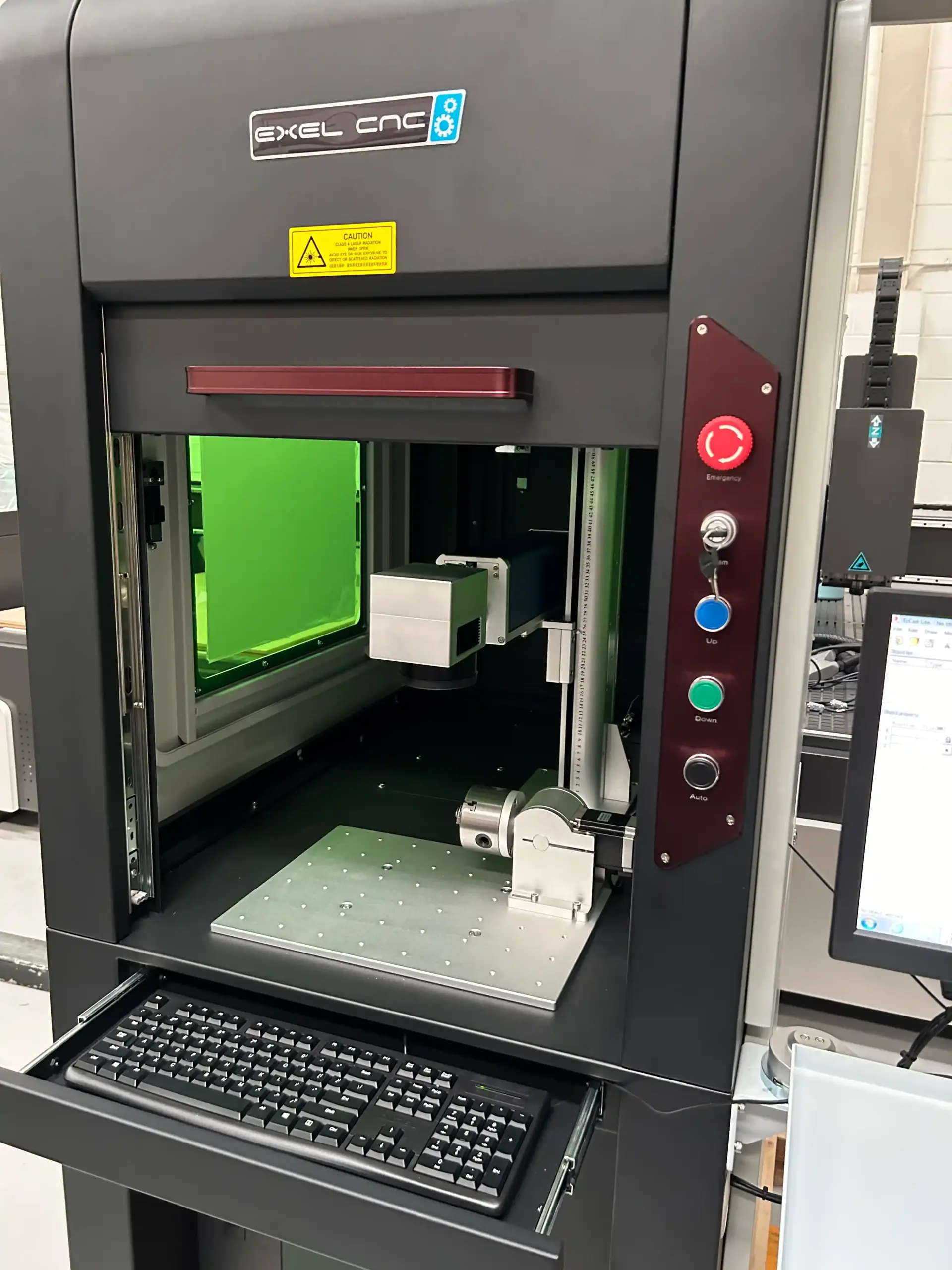

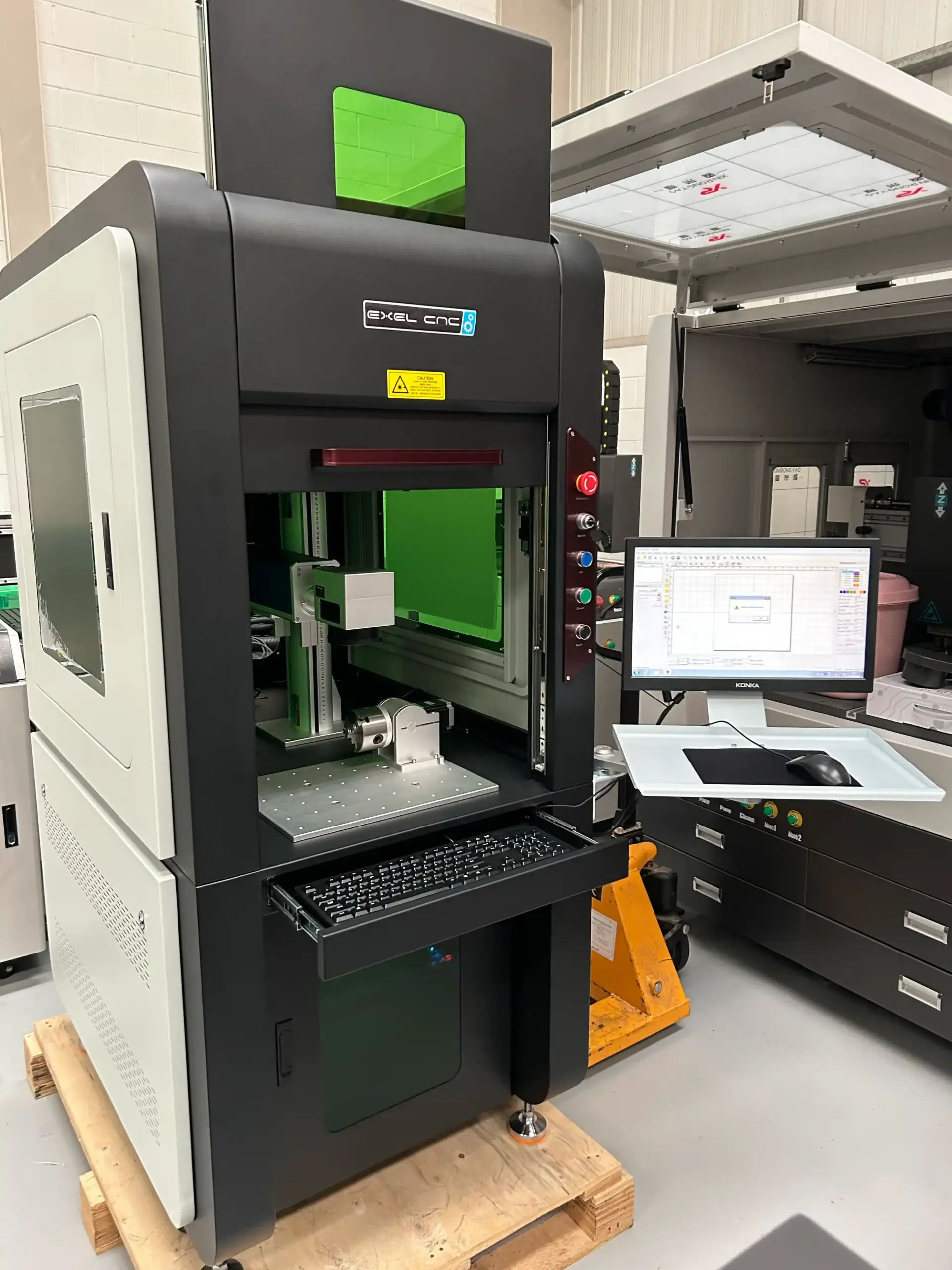

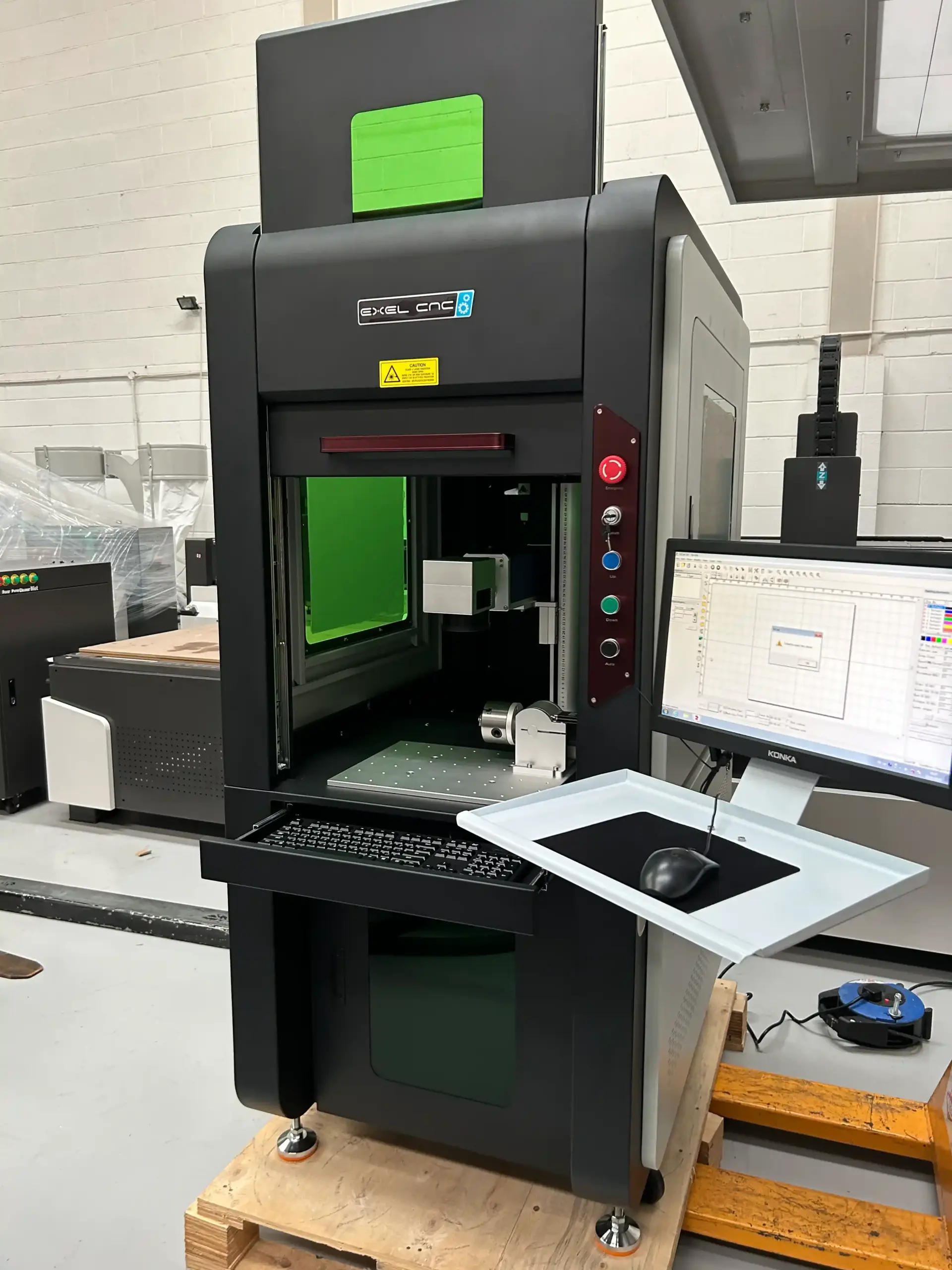

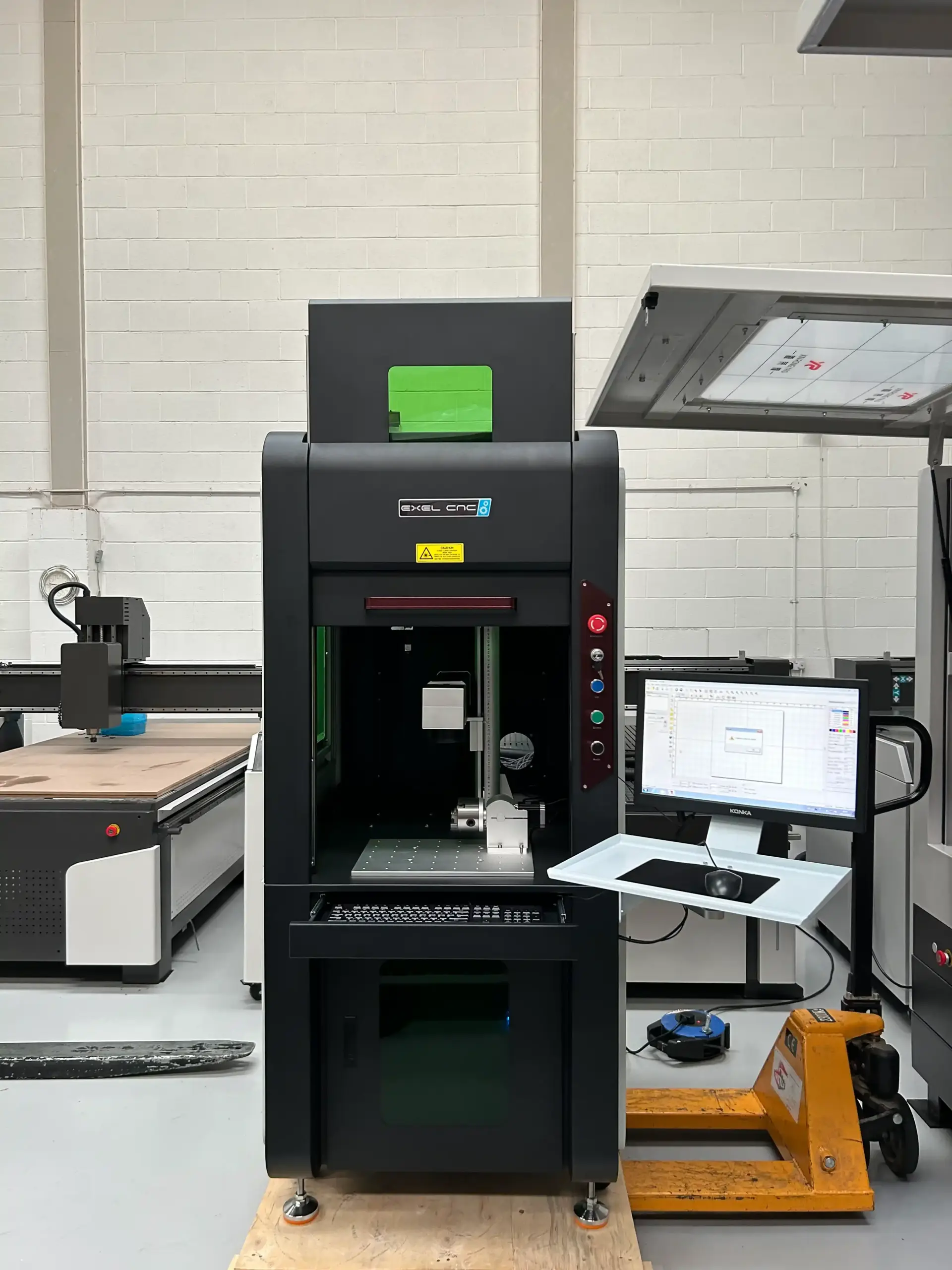

    The Exel CNC LM-30W CNC fiber laser marker is the latest in fiber laser marking technology. It comes housed in a custom made safety enclosure. A working area of 150mm x 150mm. The 30w raycus laser and sino galvo scanner head ensure super accurate and fast engraving and cutting on a wide range of materials from metals, plastics, stone, ceramics and more. These are truly versatile machines.
