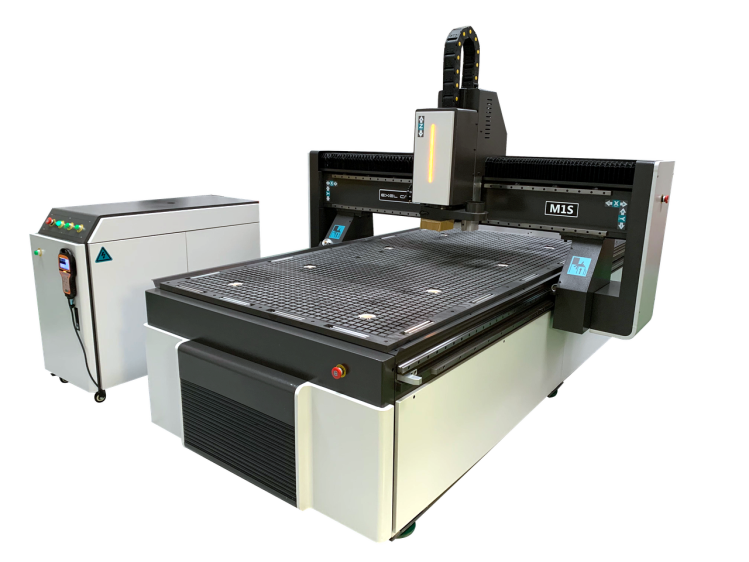

M1S CNC Routers
March 1, 2021

M5A

CNC Router


Exel CNC CNC Router MOTORS
Hybrid servo
motors
LED INDICATOR
Machine status
CONTROLLER
Latest generation
4.3" full colour
display
SPINDLE
5.5kw water cooled spindle
24k/rpm, Er25

Specification

Machine Dimensions LxWxH

3350mm x 2300mm x 2000mm


Working Area X Y Z

1220mm x 2440mm x 200mm


Weight

1600Kg


Construction

Heavy duty steel/steel gantry


Max Rapid speed

40m/min


Max cutting speed

20m/min


Acuracy

0.05mm (0.002")

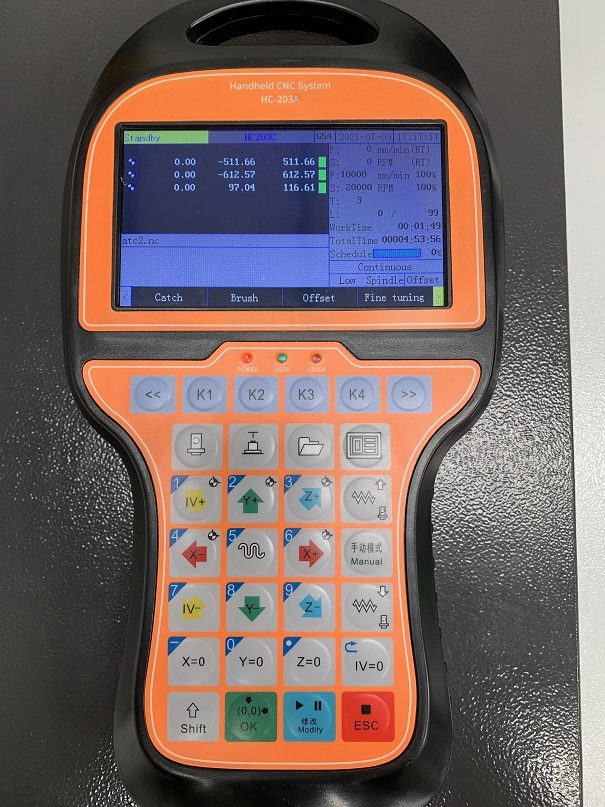

Controller

Handheld Industrial 4.3" colour screen


Data transfer

USB

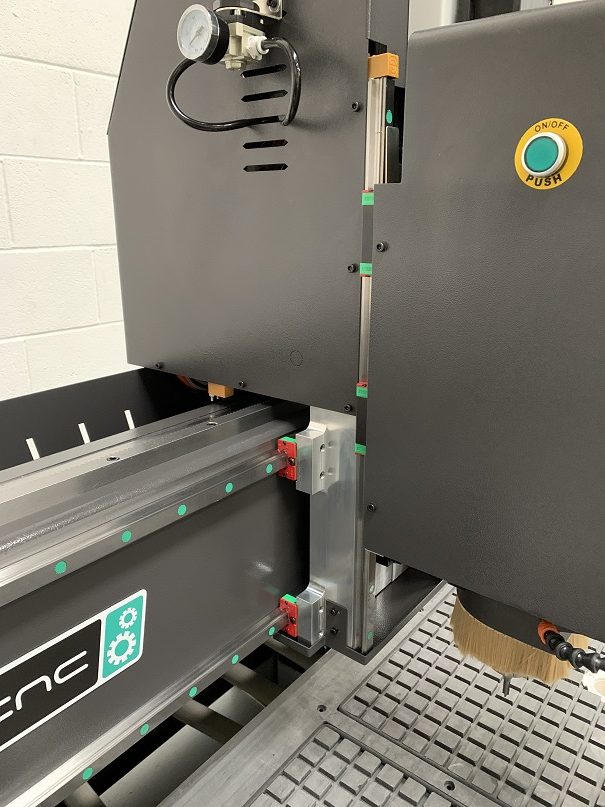

Linear guides

25mm Linear square rail Y, 20mm X/Z

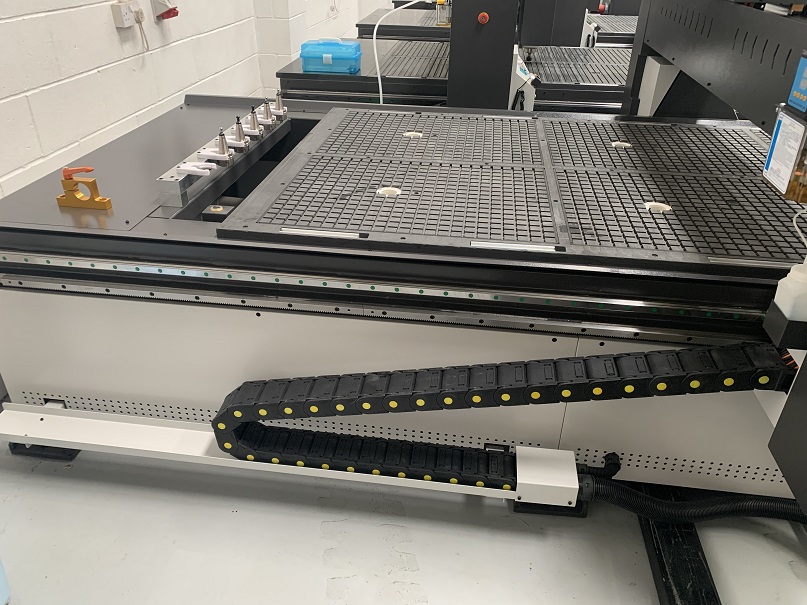

Vacuum bed

Yes, with integrated t-slots


Vacuum pump

7.5Kw side channel


Vacuum pump filter

Yes, included


Vac bed + dust on/off

Yes, located on side console


X/Y drive system

Precision helical rack


Z drive system

Tbi ballscrew


Motors

servo motors 750w


Spindle

9Kw air cooled ATC, 24k rpm ER32

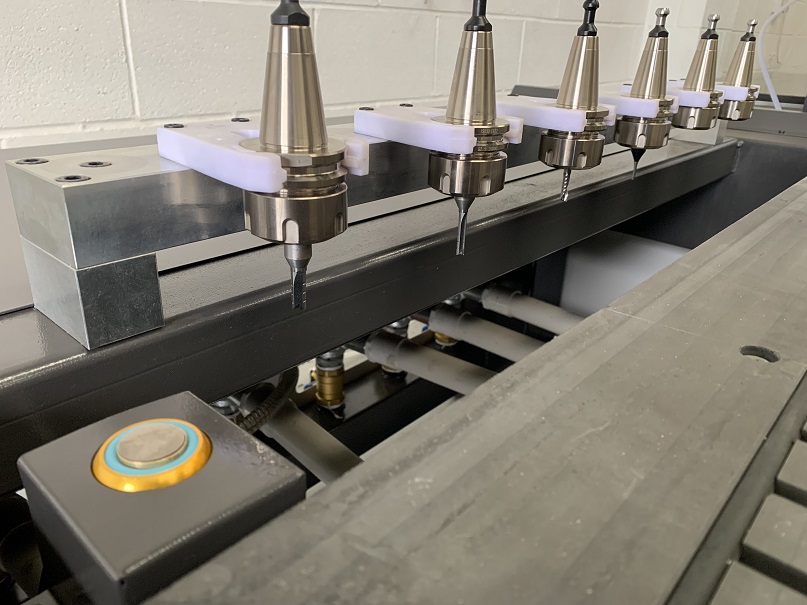

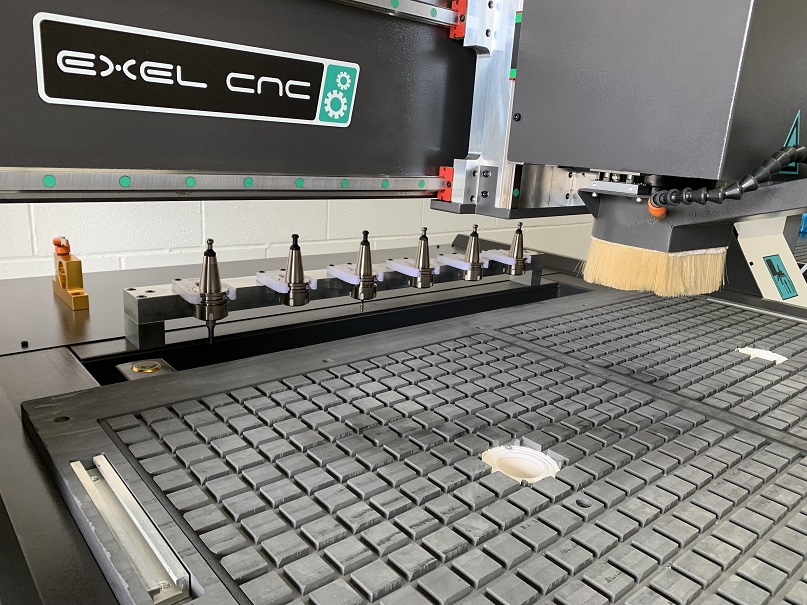

Spindle tooling

6 x iso30 tool holders included


Spindle inverter

Delta drive MS


Spindle brake resistor

Yes, spindle stop within 2 seconds


Tool height sensor

Yes fixed position


Power supply

3ph, 380v+10%, 24Kw


Levelling

Levelling damping feet


Dust extractor

3hp twin bag


Dust foot

Yes, auto rise and fall

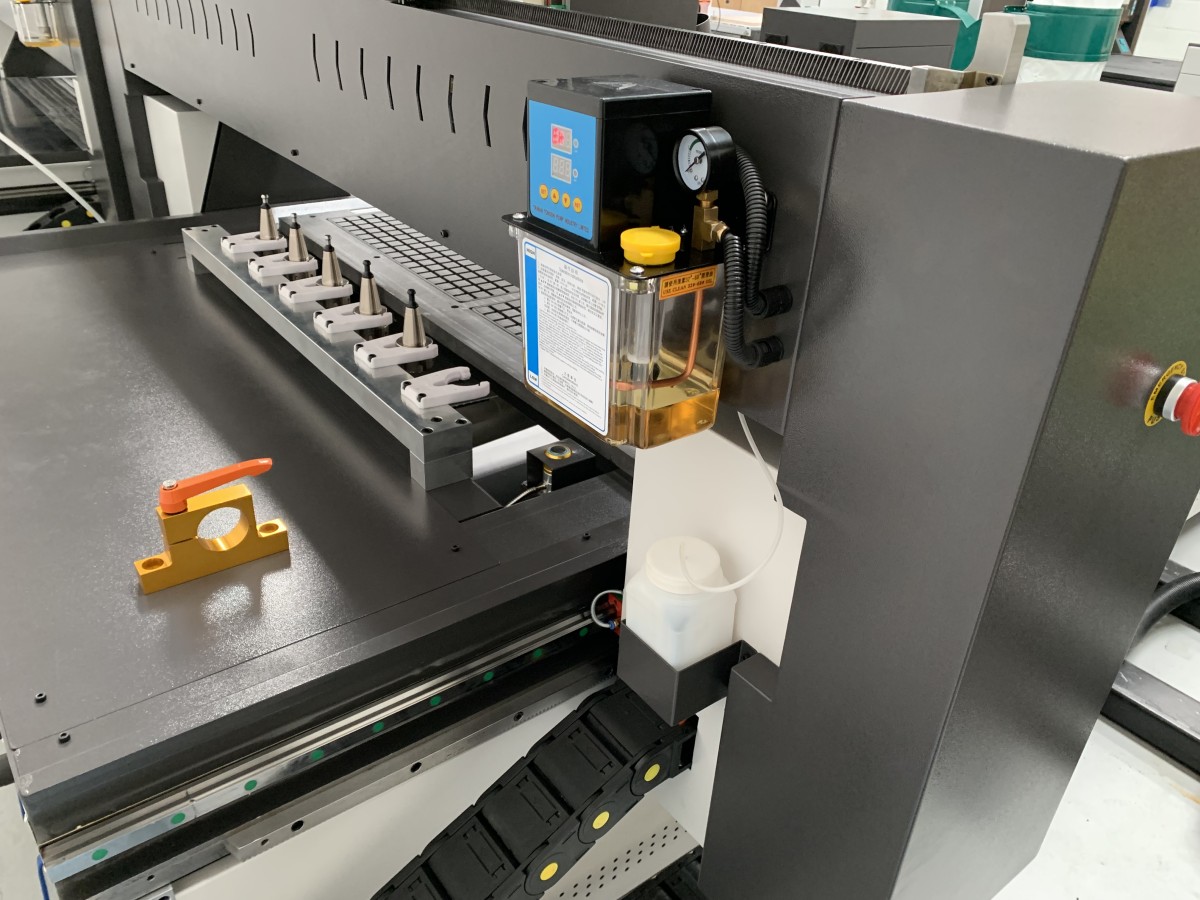

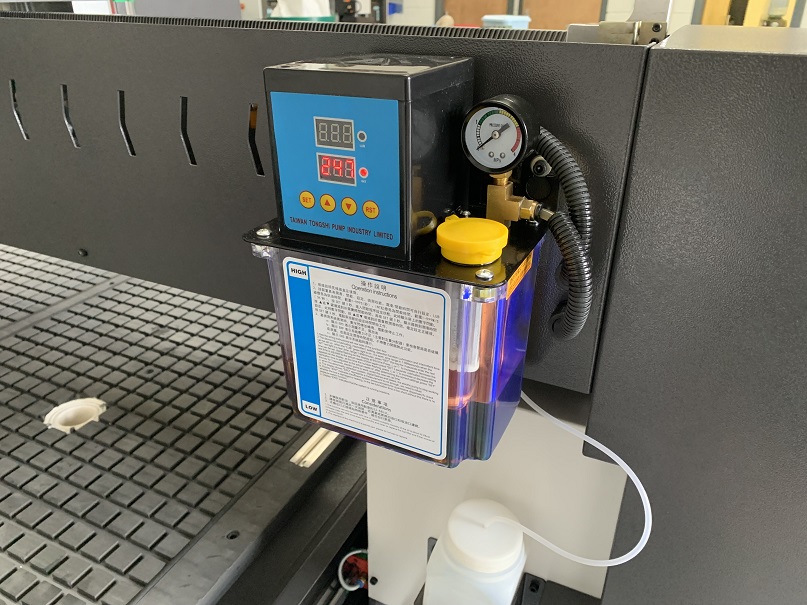

Lubrication

Automatic lubrication


Mist coolant

Included


Software

Ucancam


Warranty

12 months as standard

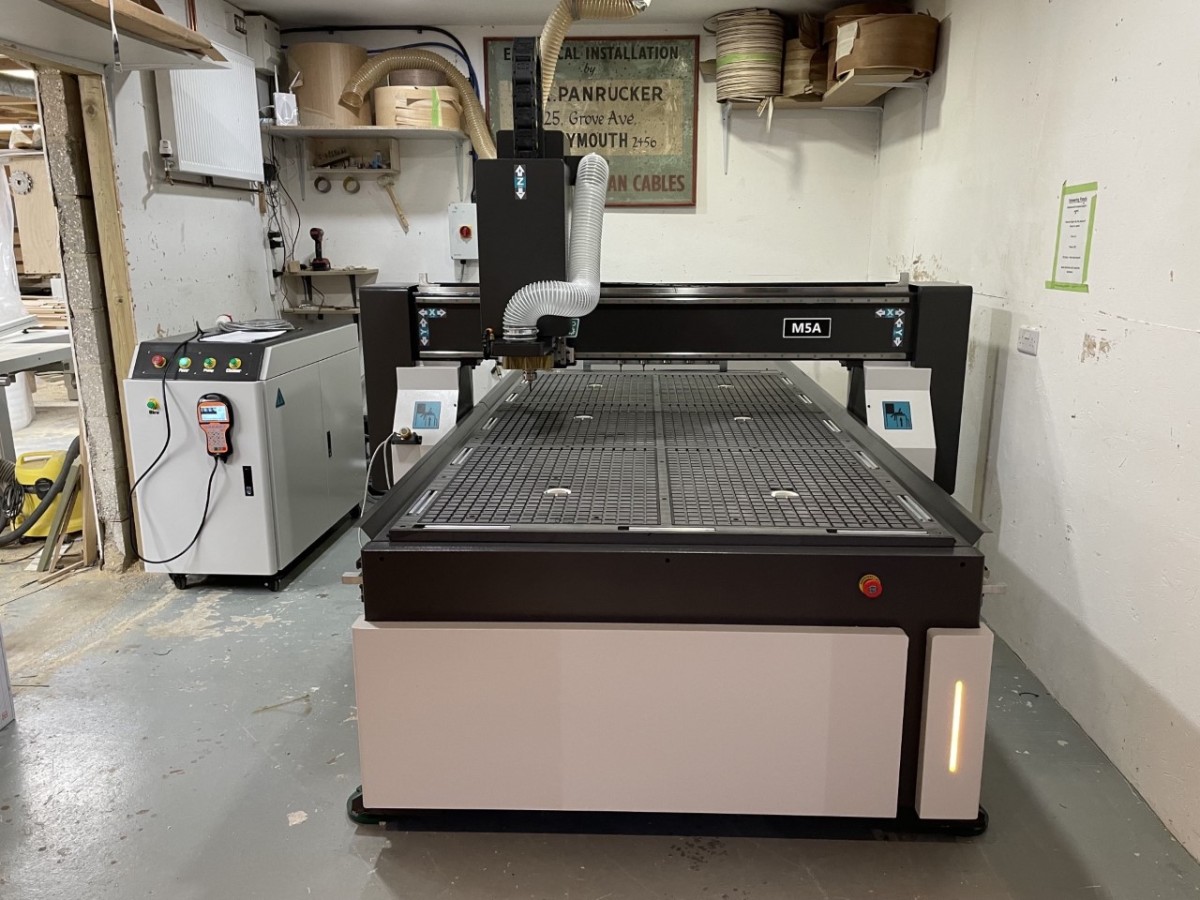

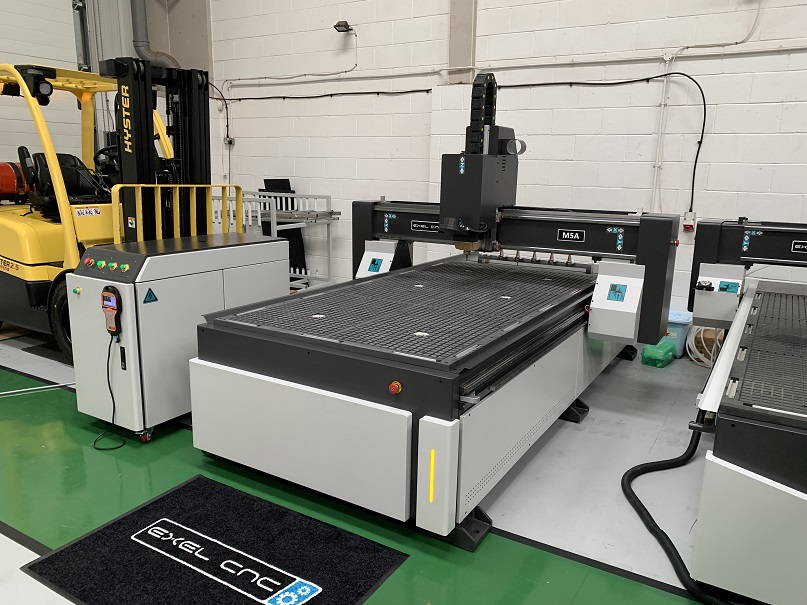

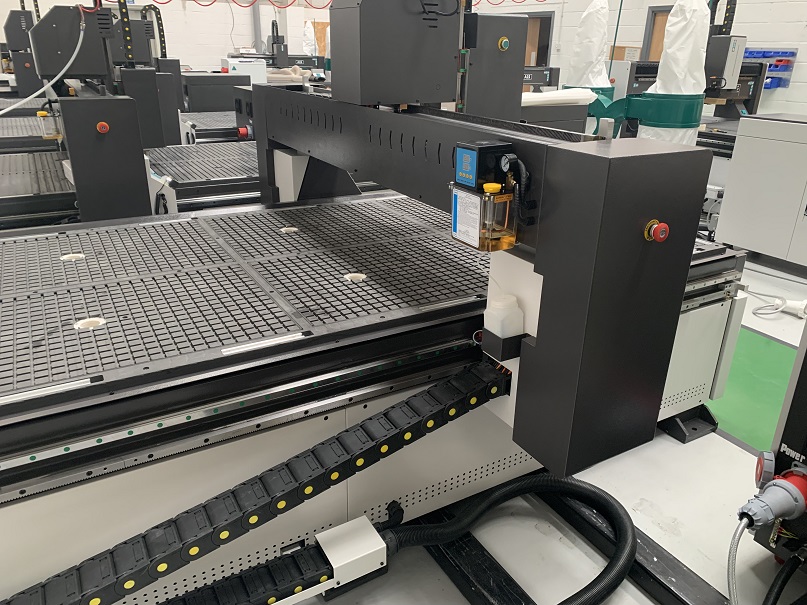

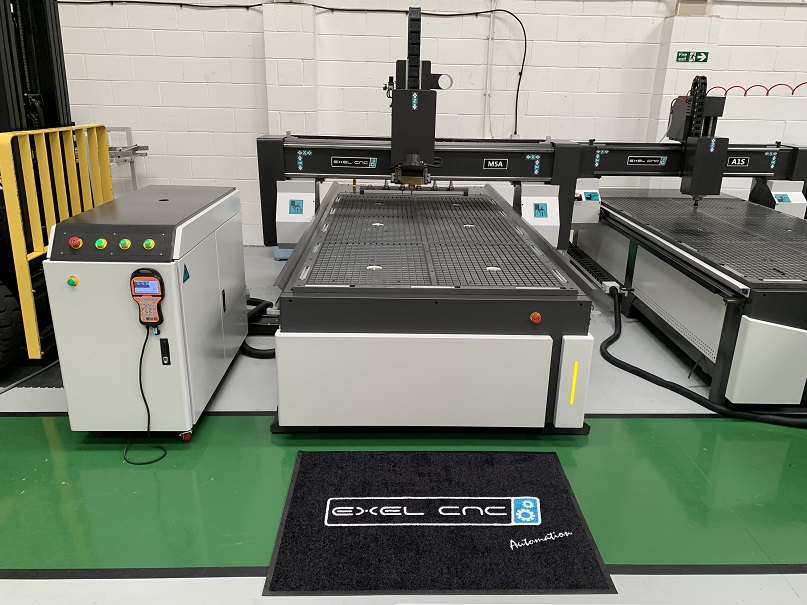

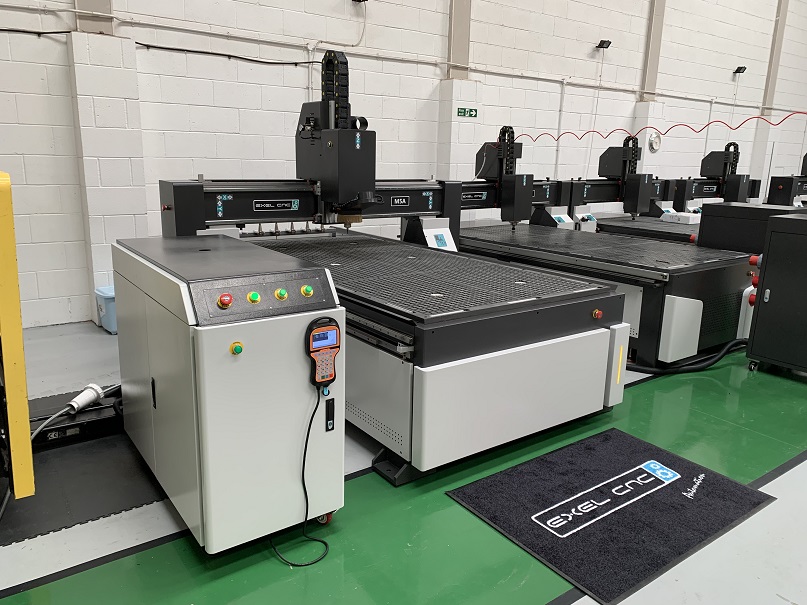

M5A CNC Router

Our M5A series CNC router is a seriously capable machine. It is designed as a high performance cost effective ATC CNC router and is comprehensively specced to include everything required right down to dust hose, clips, collets and sacrificial mat. A powerful 9kw air cooled spindle and 750watt servo motors can cut any material with ease. The M5A is fast and accurate and redefines machines at this price point

Read more


M5A

CNC Router

Download Datasheet

Price

£17,995 ex vat *options are available

Media

Have a question?


The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

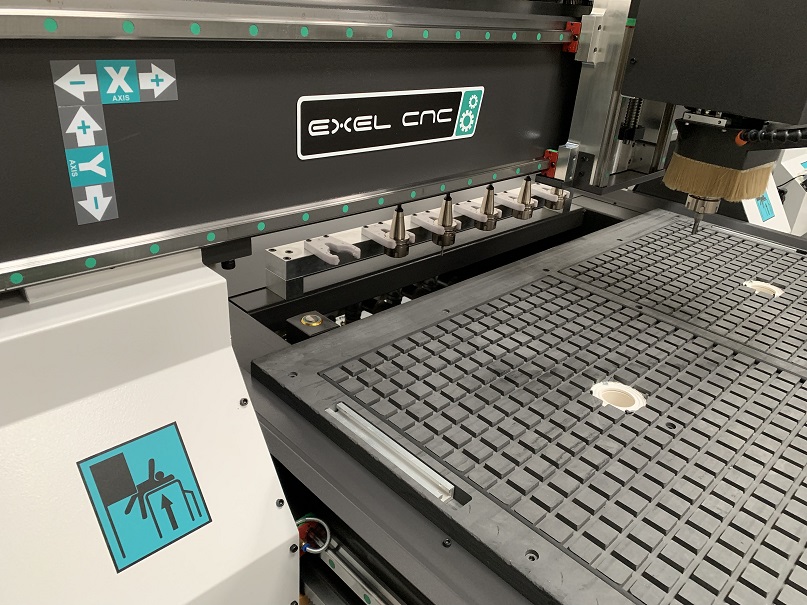

Our M5A CNC routers are high performance cost effective auto tool change machines. They come with a 6 station tool changer and powerful 9kw air cooled spindle. They can handle all materials from PVC, acrylic, wood, up to copper and aluminium. The M5A features 750w servo motors, auto dust foot, vacuum bed with 7.5Kw pump and much more. You can upgrade several options as required. Our M5A is available in 3 sizes, 1.2×2.4m, 1.5x3m, 2mx3m.
