M5A ATC CNC Router
March 1, 2021M5S
CNC Router
Hybrid servo
motors
Machine status
Latest generation
4.3" full colour
display
5.5kw water cooled spindle
24k/rpm, Er25
Specification
Machine Dimensions LxWxH3050mm x 2200mm x 1900mm
Working Area X Y Z
1220mm x 2440mm x 180mm
Weight
1600Kg
Construction
Heavy duty steel/steel gantry
Max Rapid speed
40m/min
Max cutting speed
20m/min
Acuracy
0.05mm (0.002")

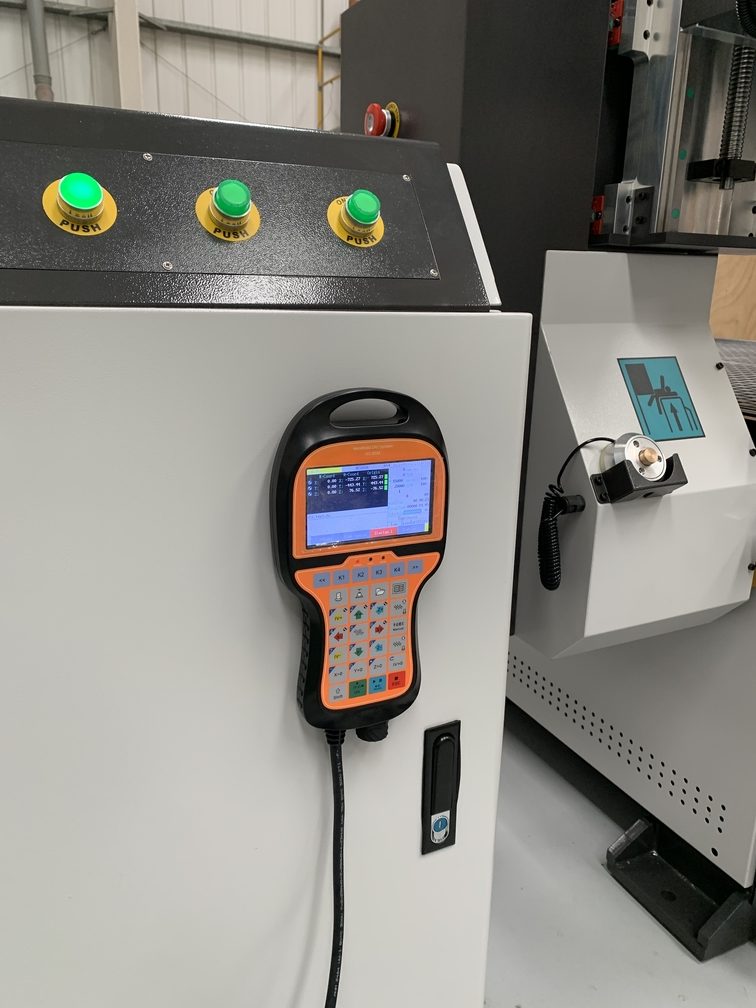

Controller
Handheld Industrial 4.3" colour screen
Data transfer
USB

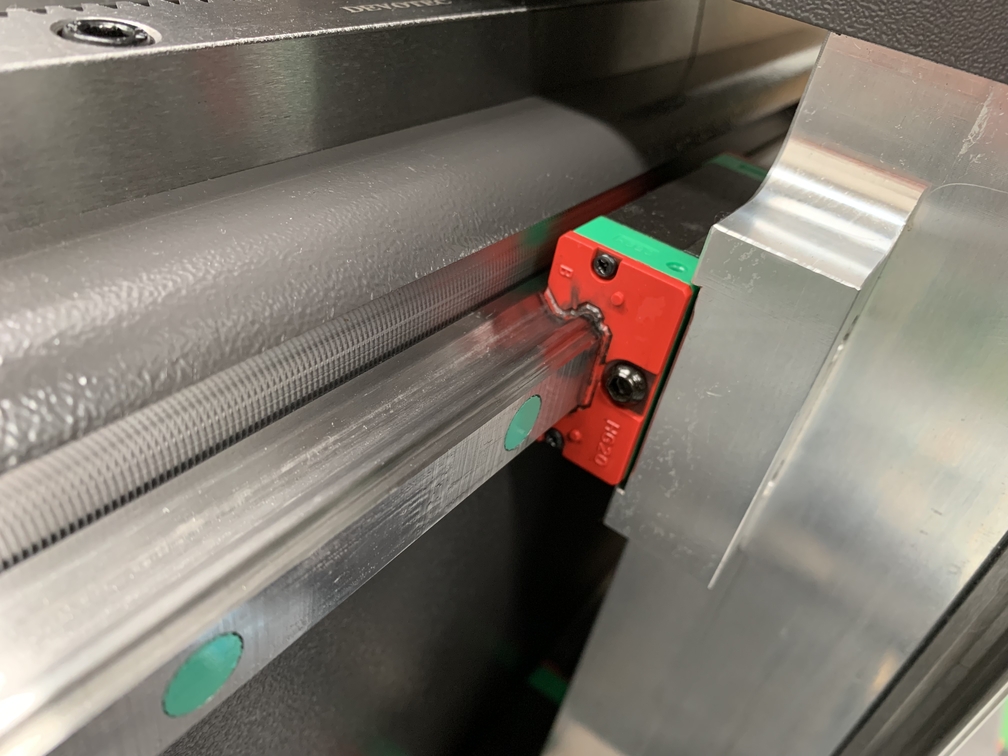

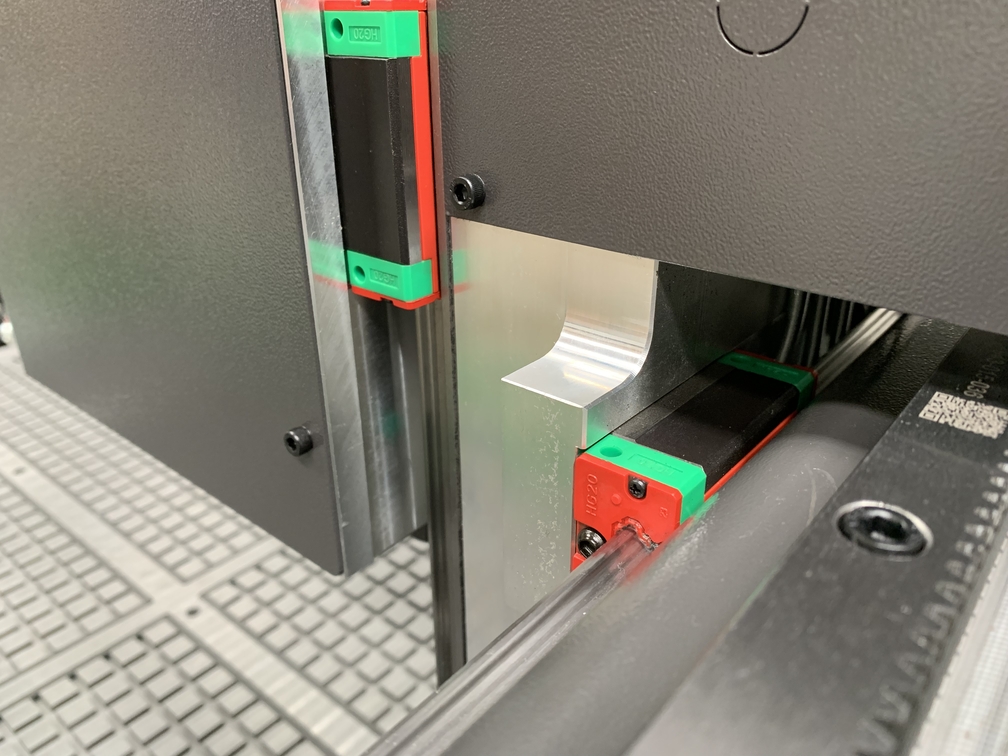

Linear guides
25mm Linear square rail Y, 20mm X/Z

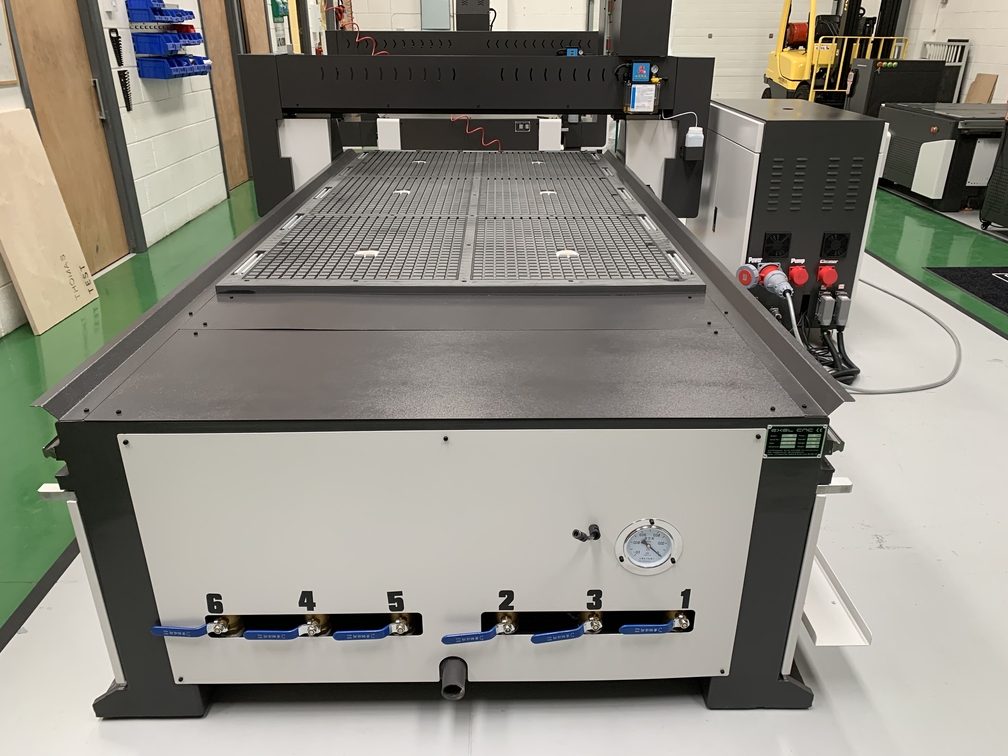

Vacuum bed
Yes, with integrated t-slots
Vacuum pump
5.5Kw side channel
Vacuum pump filter
Yes, included
Vac bed + dust on/off
Yes, located on side console

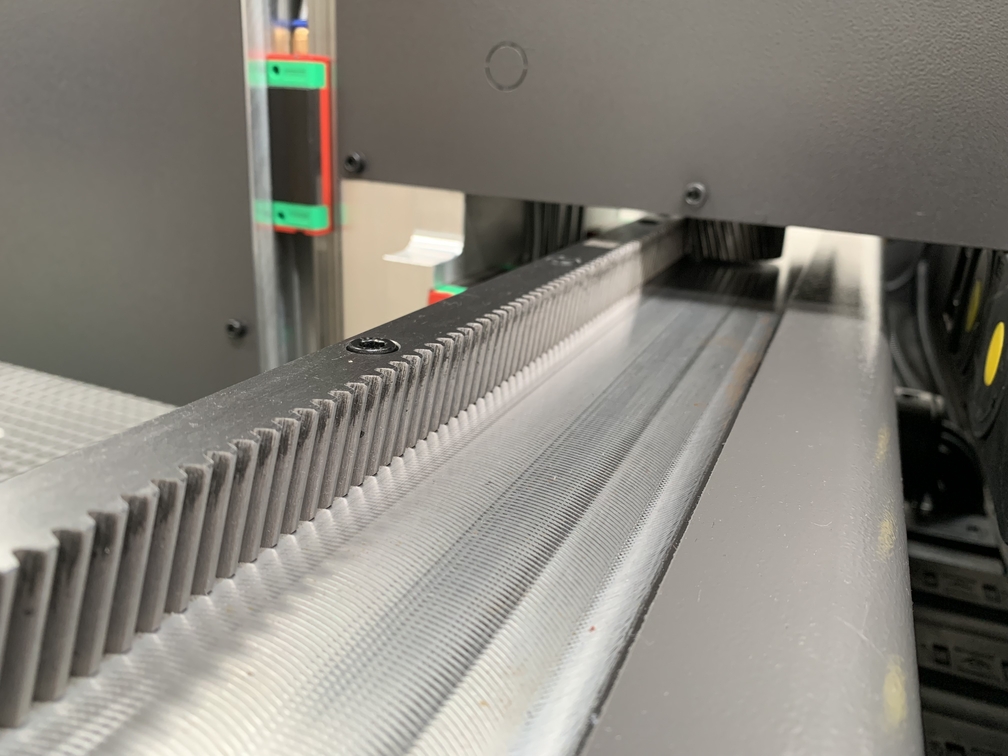

X/Y drive system
Precision helical rack

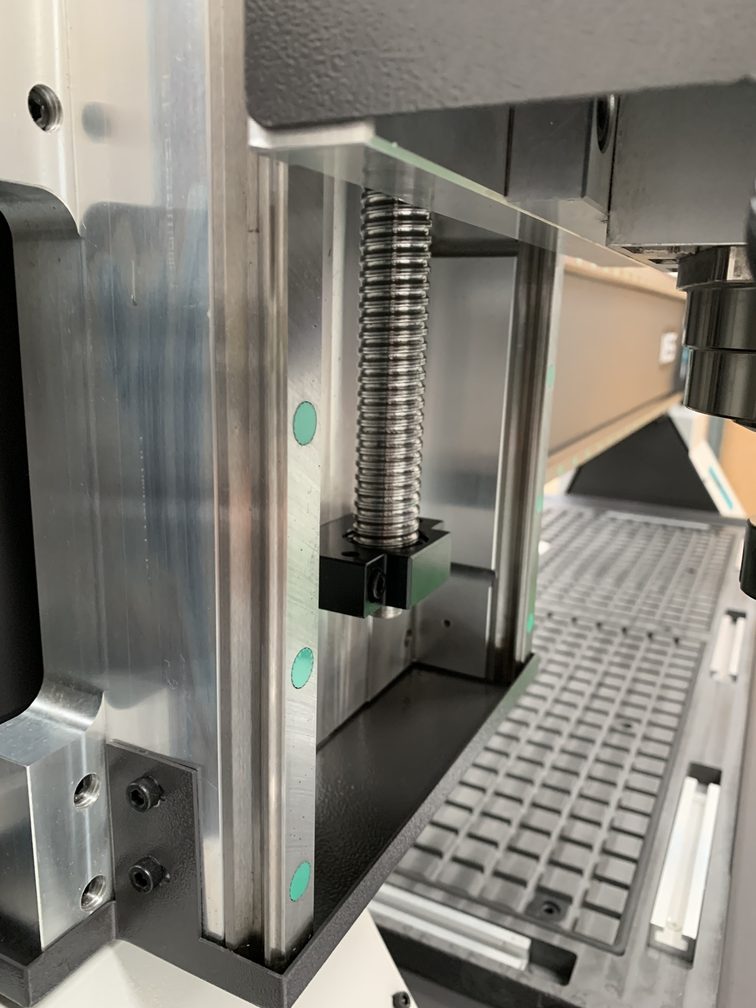

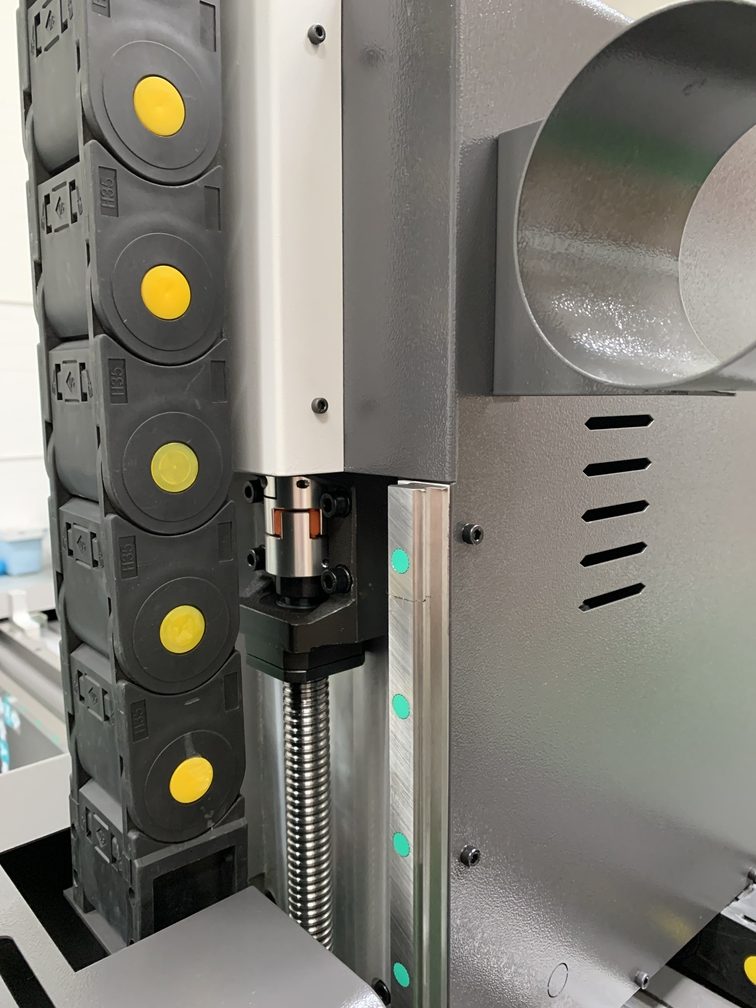

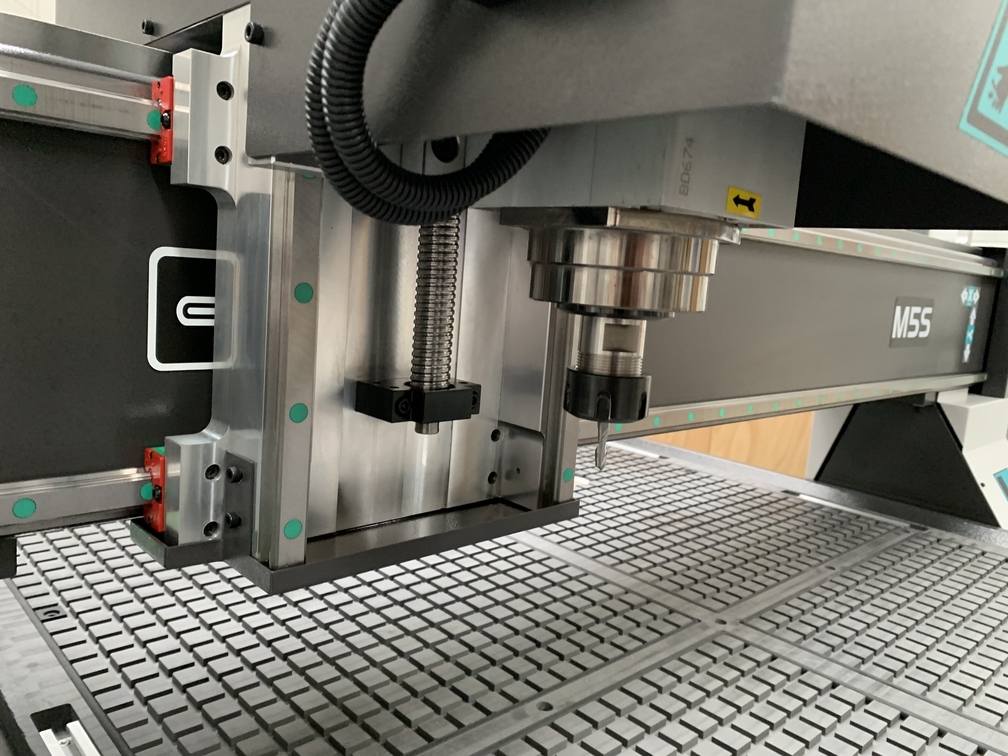

Z drive system
Tbi ballscrew
Motors
hybrid servo motors

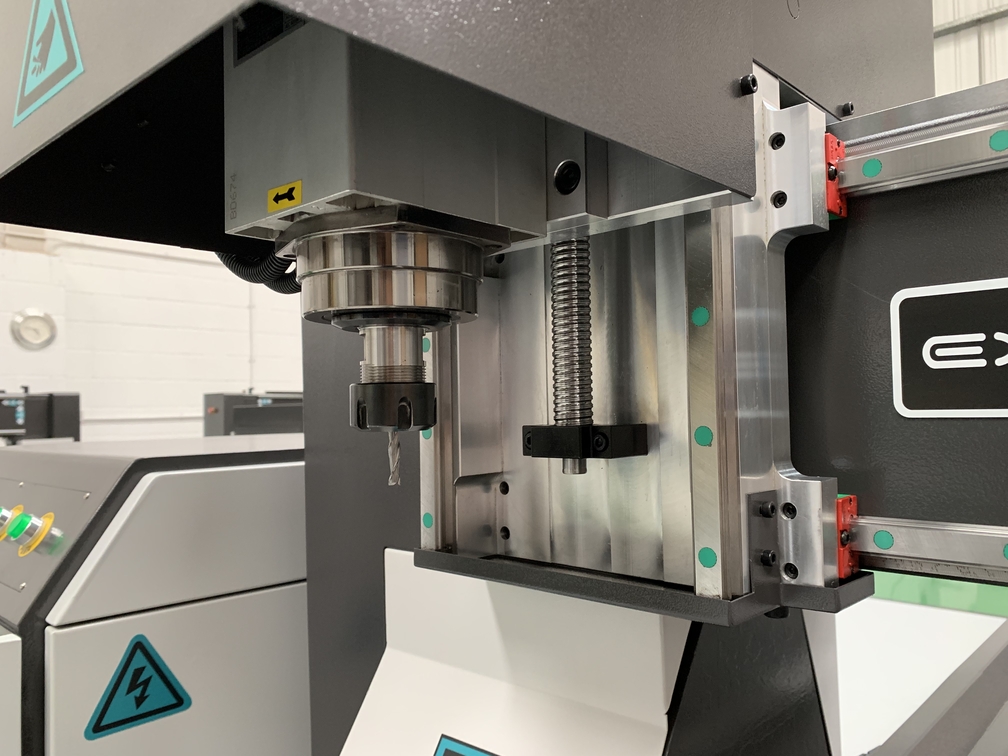

Spindle
5.5Kw water cooled, 24k rpm ER25
Spindle inverter
Delta drive MS
Spindle chiller
Yes, CW3000
Spindle brake resistor
Yes, spindle stop within 2 seconds

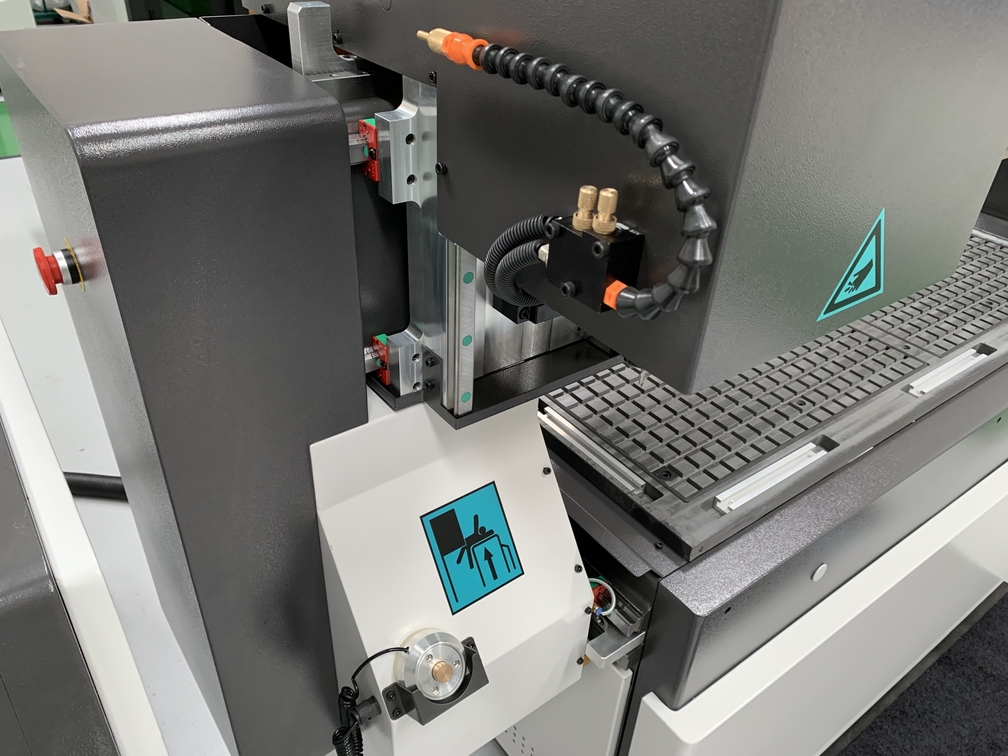

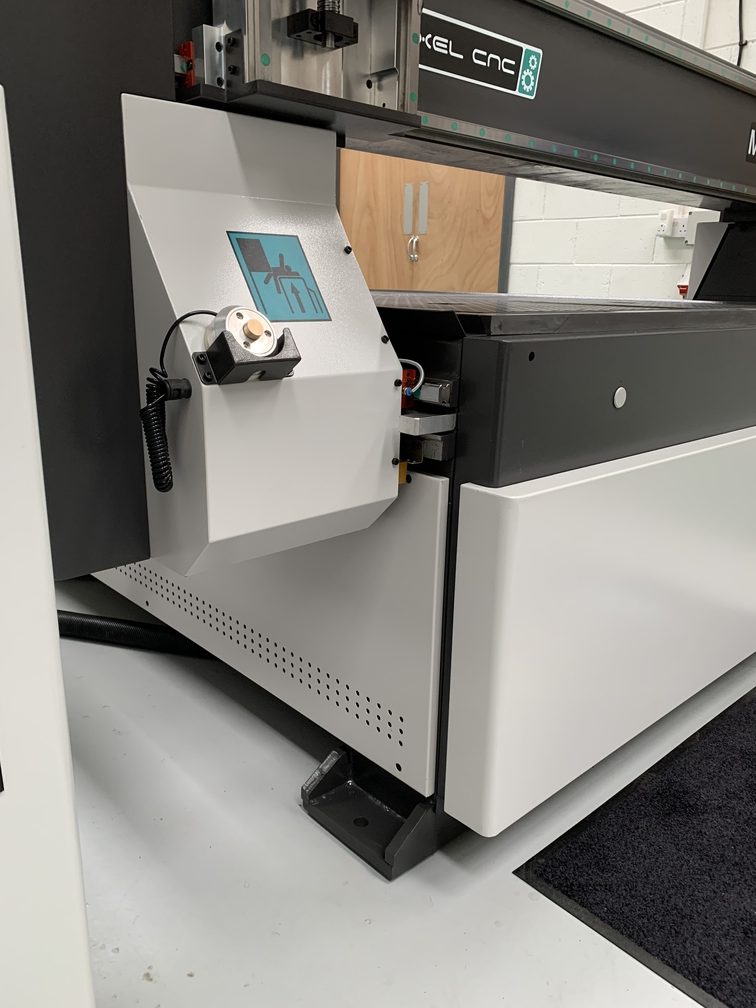

Tool height sensor
Yes
Power supply
3ph, 380v+10%, 15.6Kw
Levelling
Levelling damping feet
Dust foot
Yes, included

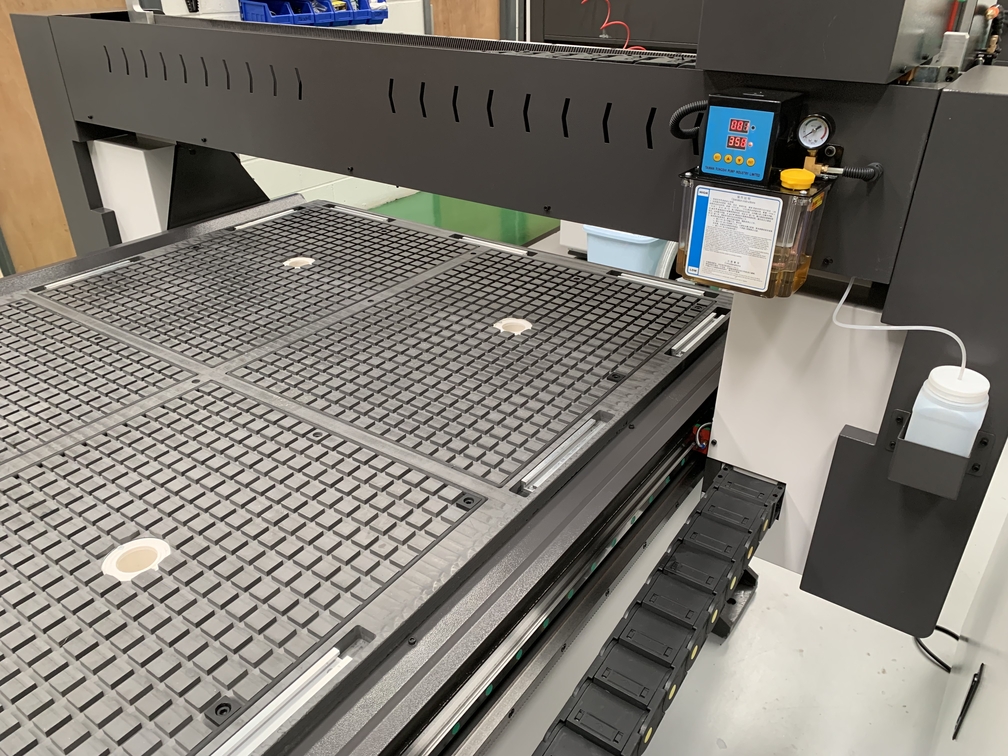

Lubrication
Automatic lubrication
Software
Ucancam
Warranty
12 months as standard

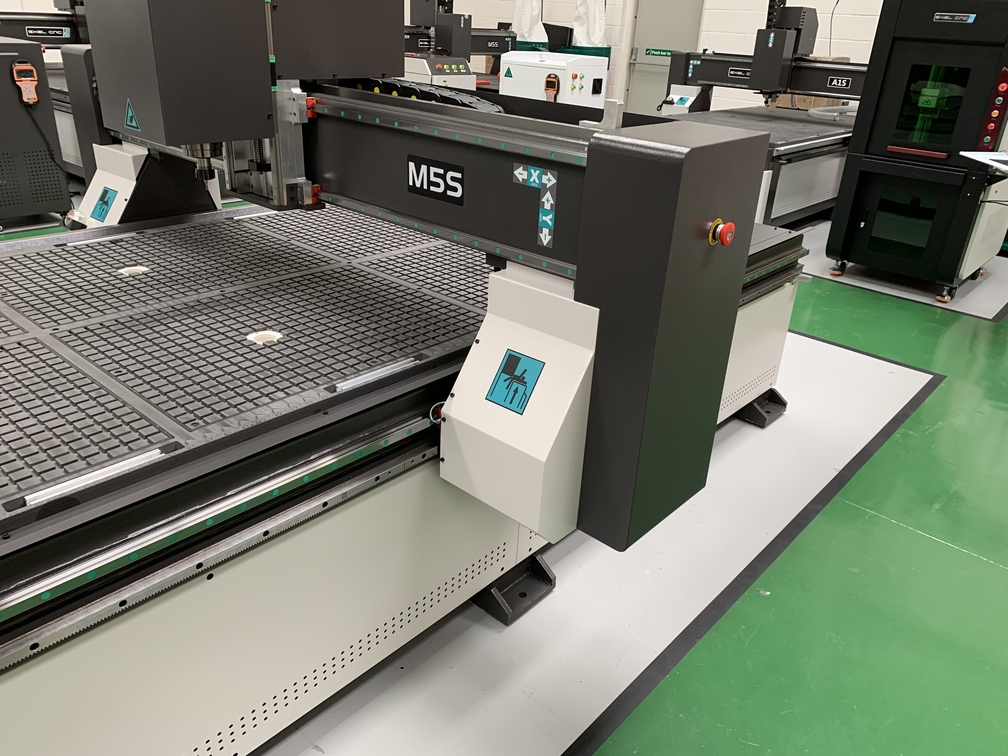

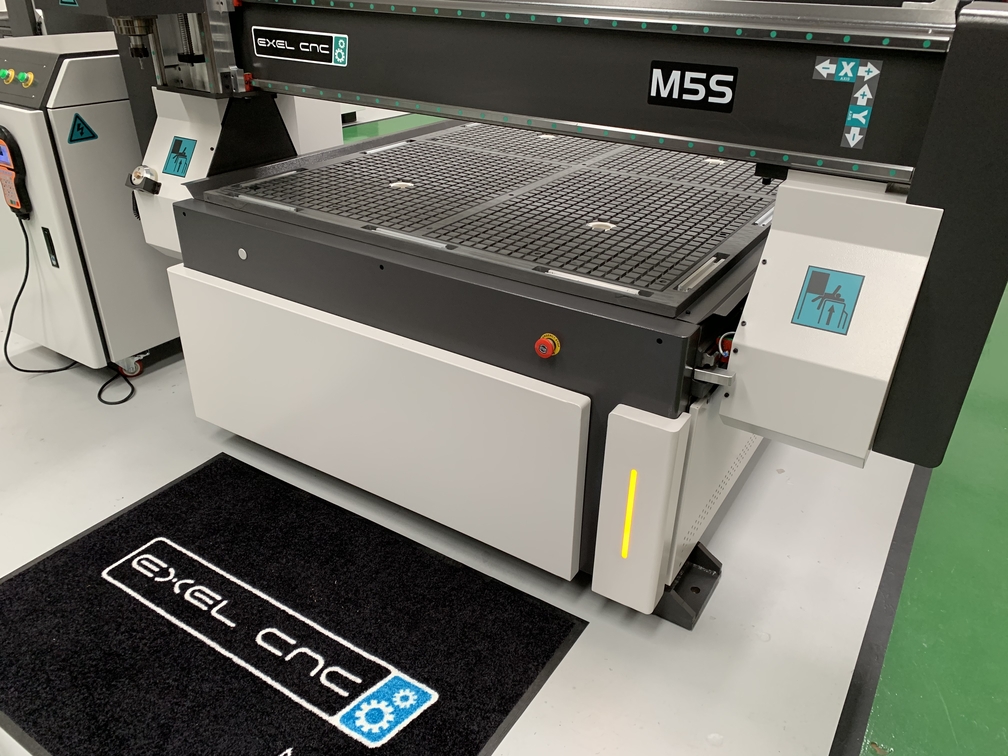

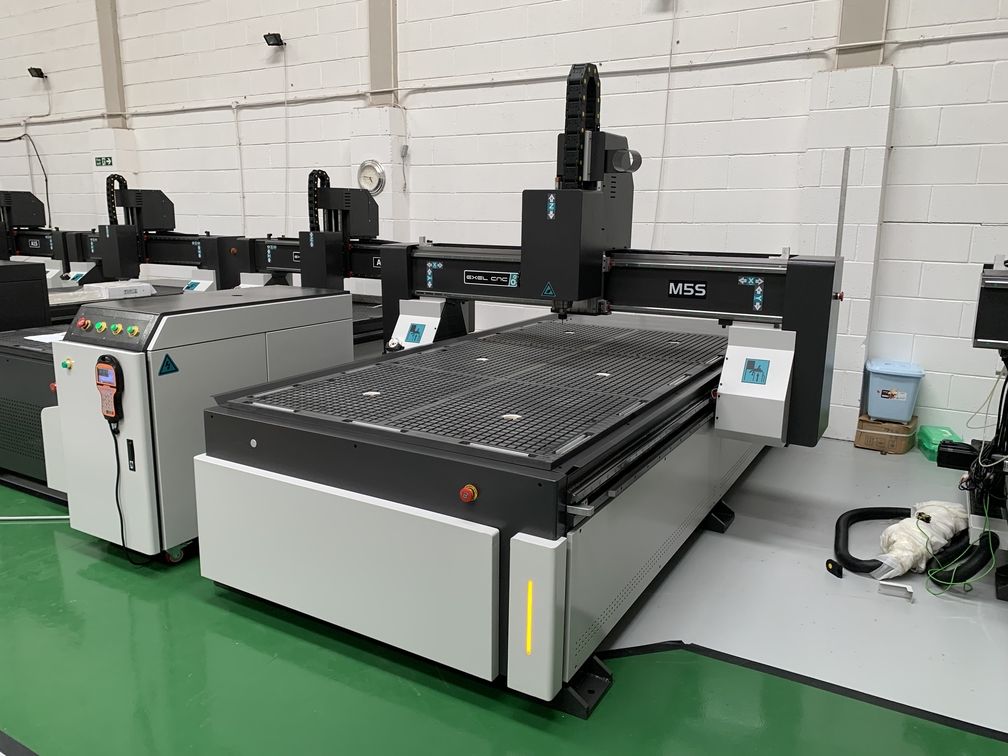

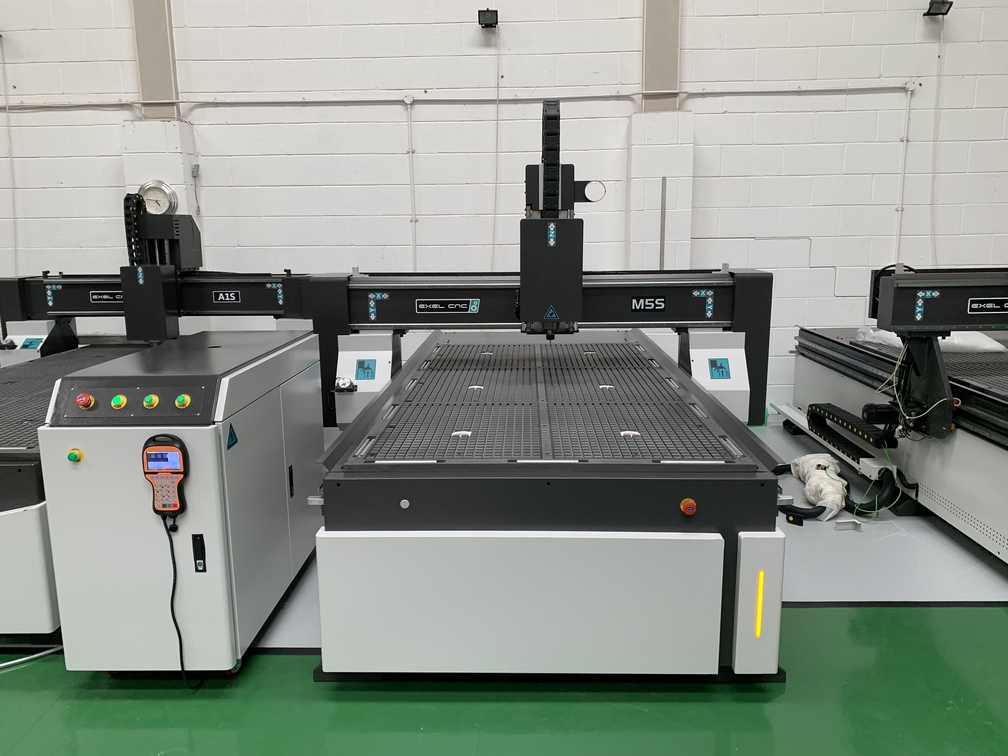

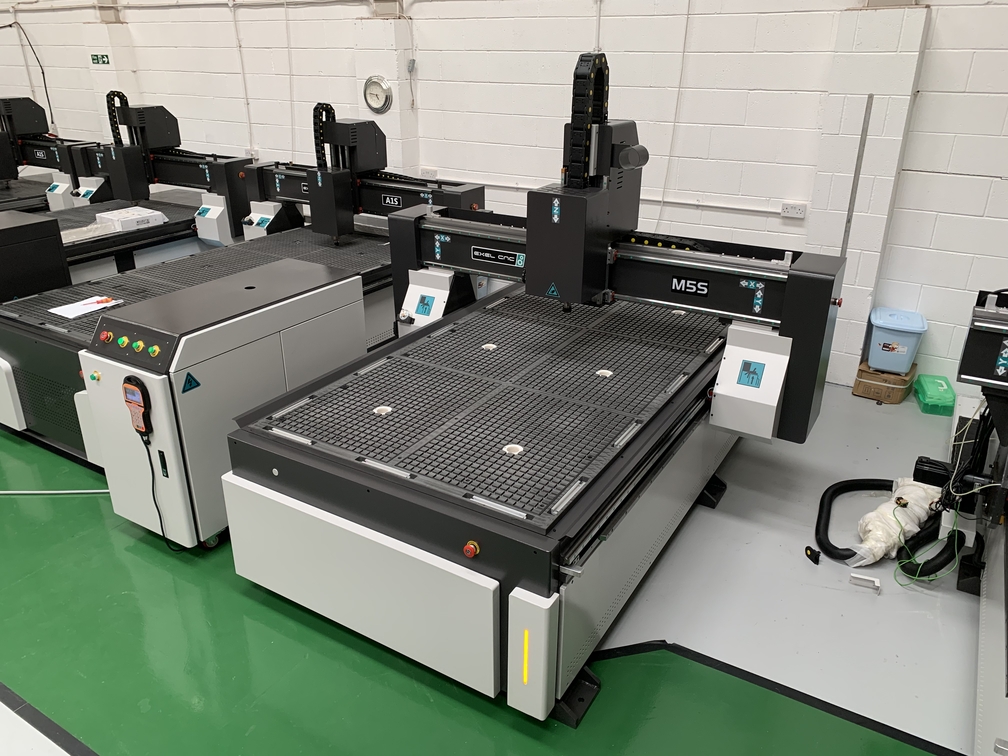

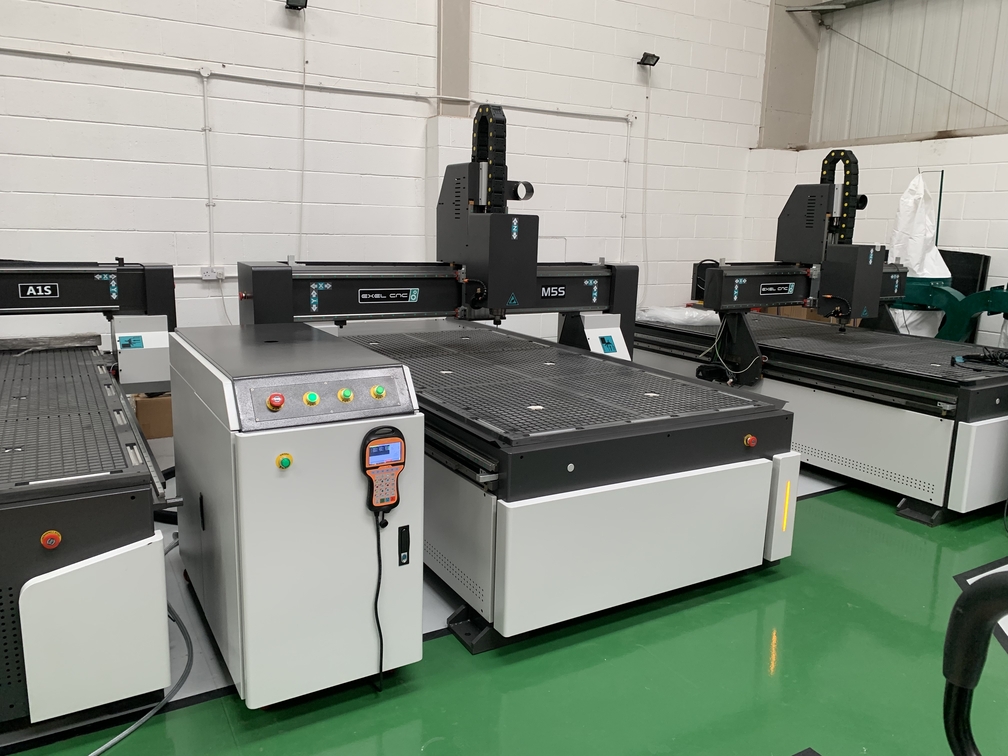

M5S CNC Router
Our M5S series CNC router is a seriously capable machine. It fits between our A1S entry level machine and flagship M1S machine. It can cut any material with ease up to aluminium and copper and is a fast accurate machine. It comes with a range of options that can be added to suit your application
Media
Have a question?
The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.
Our M5S UK CNC routers are a high performance cost effective machine. Designed to fit between our A1S and M1S range they can handle all materials from PVC, acrylic, wood, up to copper and aluminium. In standard format the M5S comes with a powerful 5,5kw spindle, hybrid servo motors, vacuum bed with 5.5Kw pump and much more. You can upgrade several options as required. Our M5S is available in 3 sizes, 1.2×2.4m, 1.5x3m, 2mx3m. ATC is also available in any of these.
