A1S

CNC Router


Exel CNC SPINDLE
quiet 3.5kw water cooled spindle
CONTROLLER
Latest generation
4.3" full colour
display
HELICAL
rack and pinion
on X and Y axis
WORKING AREA
1220x2440mm bed with 5.5kw
vacuum pump
A1S Features

Specification

Machine Dimensions LxWxH

3000mm x 1900mm x 1750mm


Working Area X Y Z

1220mm x 2440mm x 200mm


Weight

1200Kg


Construction

Steel frame, steel gantry


Max Rapid speed

25m/min


Max cutting speed

15m/min


Acuracy

0.05mm (0.002")


Controller

Handheld Industrial 4.3" colour screen


Data transfer

USB


Linear guides

20mm Linear square rail


Vacuum bed

Yes, with integrated t-slots


Vacuum pump

5.5Kw side channel


Vacuum pump filter

Yes, included


Vac bed + dust on/off

Yes, located on side console


X/Y drive system

helical rack and pinion


Z drive system

ballscrew


Motors

stepper motors 8.7Nm, nema34


Spindle

3.5Kw water cooled, 24k rpm ER20


Spindle inverter

Delta drive MS


Spindle chiller

Yes, CW3000


Spindle brake resistor

Yes, spindle stop within 2 seconds


Tool height sensor

option


Power supply

3ph, 400v, 14.5Kw


Levelling

Levelling damping feet


Dust foot

Yes, included


Dust extractor

option


Lubrication

option


Software

option


Warranty

12 months as standard

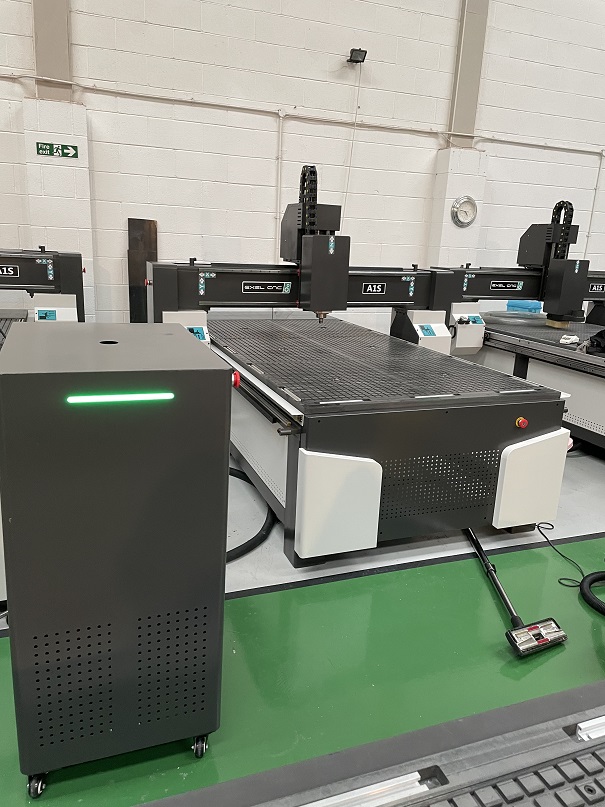

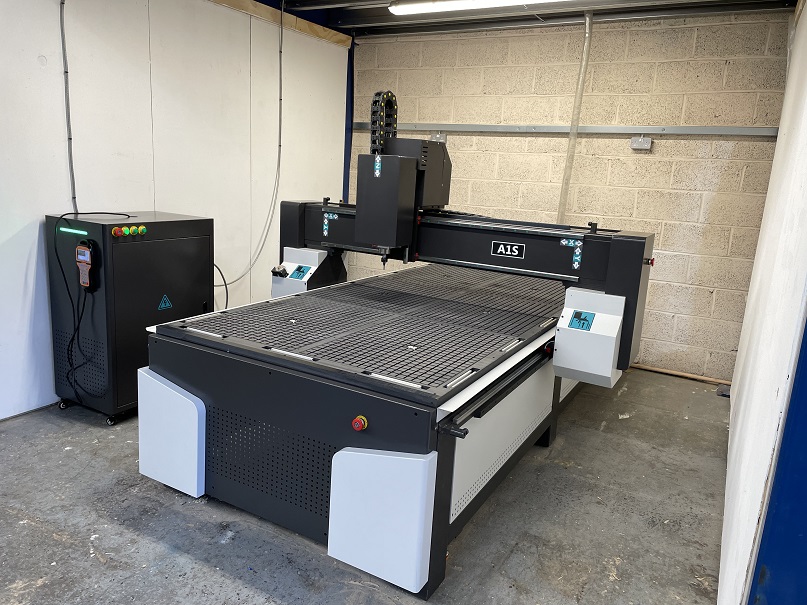

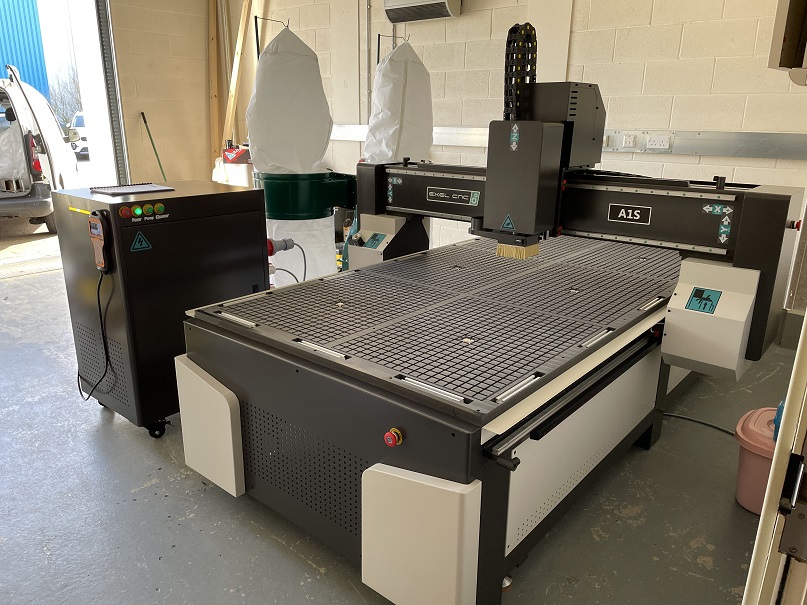

A1S CNC Router

Our A1S are our entry level 8ftx4ft CNC routers. Even though the A1S is our most economically priced CNC in this size we still spec them above and beyond any others, with delta MS series inverters, spindle brake, additional e-stops, damping levelling feet, colour screen controller, console starters for vac pump/extraction, omron sensors, upgraded 8.7Nm motors and more. These are incredible value for money.

Read more


A1S CNC Router

CNC Router

Download Datasheet

Media

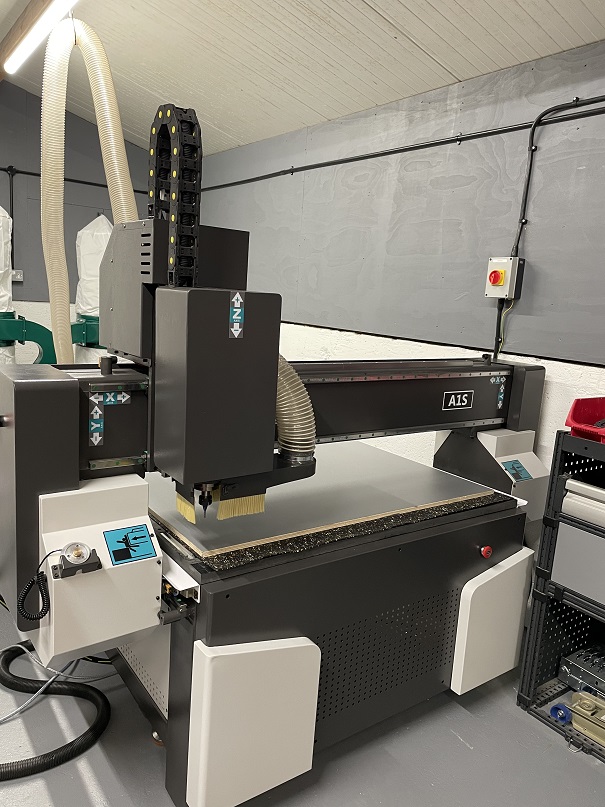

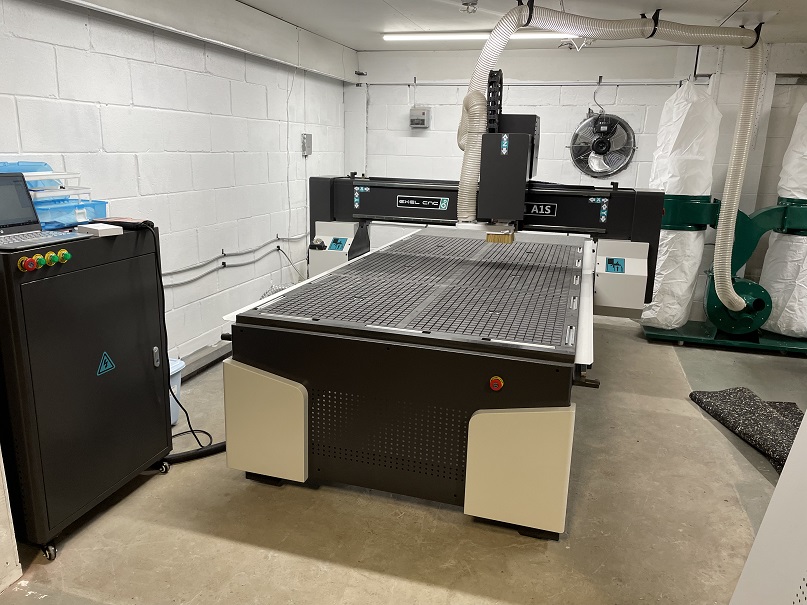

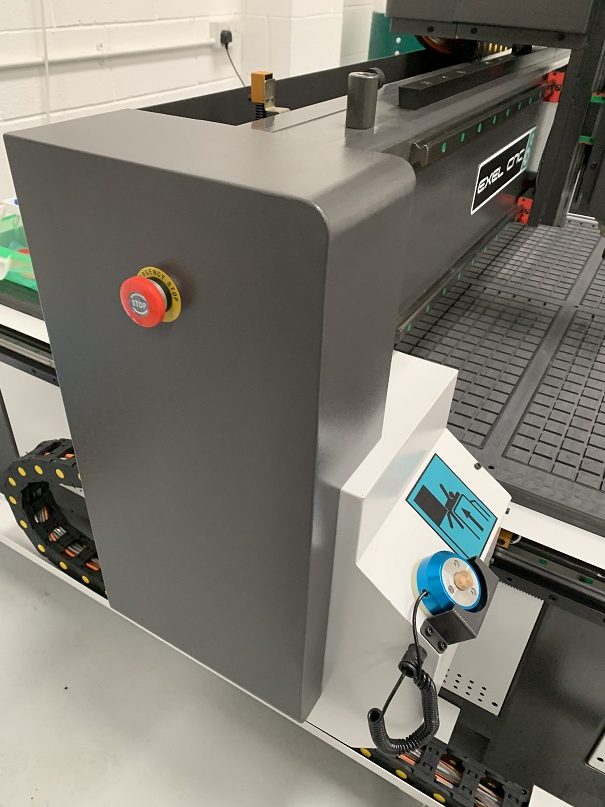

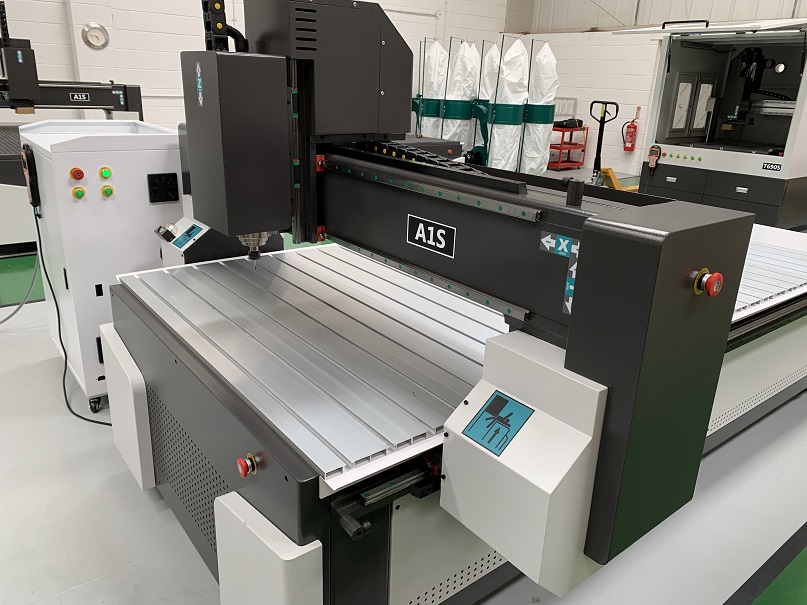

  • compact CNC machine
  • compact CNC machine
  • compact CNC machine
  • compact CNC machine

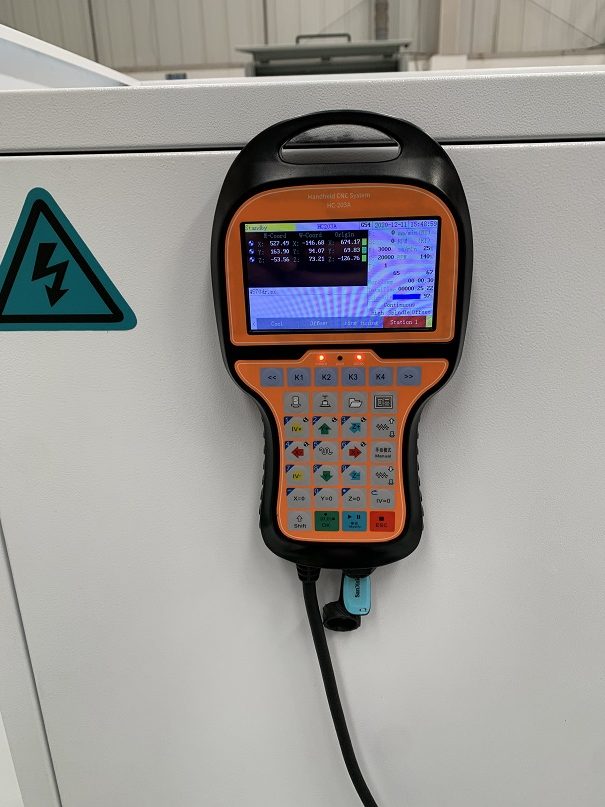

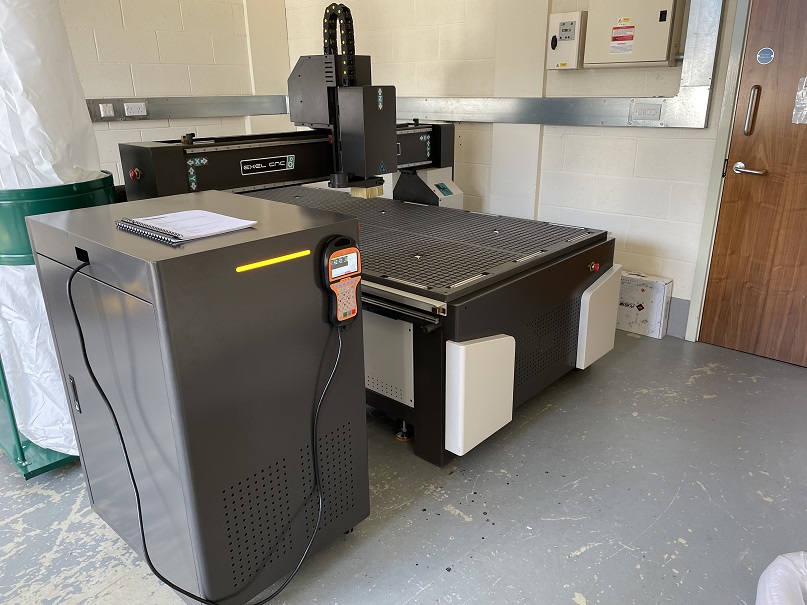

  • CNC controller

Have a question?


The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

Our A1S CNC routers are our entry level large format machines. Designed to accept 8ftx4ft boards and larger they are very capable machines with a host of options and upgrades as standard. You get peace of mind with comprehensive parts and Labour warranty and free training.
