1313A

CNC Router

1 Year Warranty

MOTORS
Servo motors for smooth powerful operation SPINDLE
2.2kw air cooled.
1800rpm CONTROLLER
Latest generation
4.3" full colour
display STORAGE
Drawers to store away tools/collets etc SAFETY
Door interlock fitted 1313M Features

Compact. Enclosed. Professional.

Configured to our UK specification, the Exel CNC 1313A is a fully enclosed 6-station automatic tool change CNC router designed to accept a full 4ft × 4ft sheet of material. The interlocked enclosure contains dust and debris while significantly reducing cutting noise, making it ideal for cleaner environments, education settings and restricted-access workshops using a compact CNC router solution.

▾ Read more

Despite its compact footprint, the 1313A is comprehensively specified as standard, featuring 305mm Z-axis clearance, servo motors, precision ballscrew drives on all axes and a fully integrated ATC system. The result is a compact but capable production router delivering precision, safety and professional performance in a contained format.

  • Plastic fabrication and acrylics
  • Woodworking and MDF
  • Signage manufacture
  • Advertising materials
  • Engraving applications
  • Medical and orthotic components
  • Education and training environments
  • Automotive components
  • Foam processing and flight cases
  • Vacuum forming trimming and tooling
  • 1313A enclosed CNC router with steel frame and aluminium gantry
  • Fully enclosed cabinet with gas strut door and safety interlock
  • 6-station automatic tool changer (side-mounted rack)
  • 2.2kW water-cooled ATC spindle (24,000rpm)
  • Spindle chiller unit included
  • Servo motors on all axes
  • Ballscrew drive on X, Y and Z axes
  • Vacuum bed with integrated T-slots

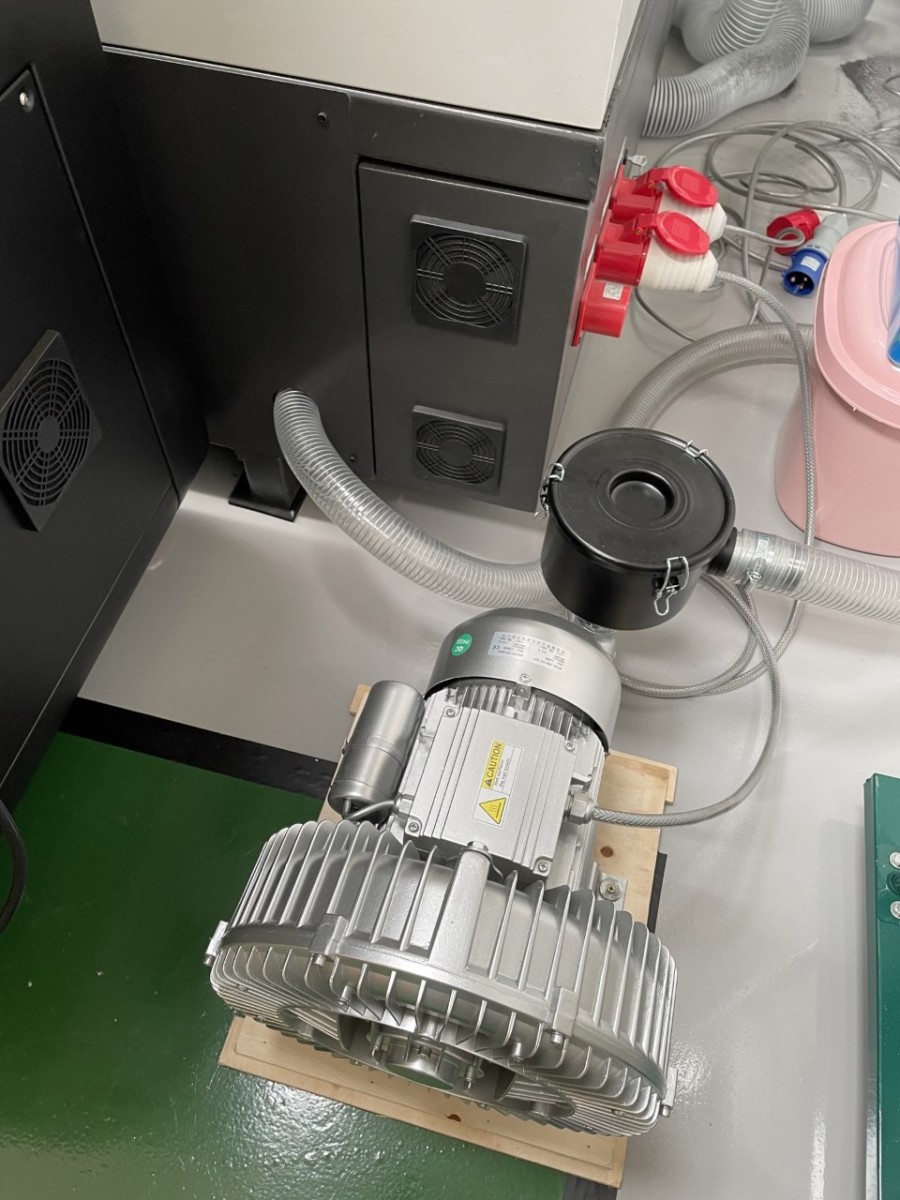

  • 2.2kW side channel vacuum pump with filter
  • Automatic tool height sensor
  • Auto rise/fall dust foot
  • Internal LED lighting
  • Manual lubrication system
  • Ucancam software included
  • 12-month parts and labour warranty

Specifications based on the 1300 x 1300mm working area model.

Machine Size & Capacity
Machine Dimensions (L x W x H)
2163 x 2100 x 2017mm
Working Area (X x Y x Z)
1300 x 1300 x 305mm
Weight
1400kg
Performance
Max Rapid Speed
20m/min
Max Cutting Speed
10m/min
Accuracy
0.025mm (0.001")
Build & Motion System
Construction
Steel frame with aluminium gantry
X/Y Drive System
TBI ballscrews
Z Drive System
TBI ballscrew
Linear Guides
20mm linear square rail
Motors
Servo motors
Cutting System
Spindle
2.2kW water-cooled, 24,000rpm, ER20 (chiller included)
Tool Capacity
6 station ATC rack (ISO20 tool holders included)
Spindle Inverter
Delta drive
Spindle Brake Resistor
Included
Tool Height Sensor
Dual sensor
Workholding & Extraction
Vacuum Bed
Yes, with integrated T-slots
Vacuum Pump
2.2kW side channel
Vacuum Pump Filter
Included
Vac Bed + Dust On/Off
Yes, located on front of machine
Dust Foot
Auto rise & fall
Enclosure & Safety
Enclosure
Gas strut door with safety interlock
Internal Lighting
Twin LED light bars
Control & Operation
Control System
Handheld Industrial 4.3" colour screen (optional PC control)
Data Transfer
USB
Machine Systems
Lubrication
Manual central lubrication
Levelling
Self-levelling feet
Technical & Power
Power Supply
1-phase, 220V, 11.4kW
Air Supply
Required for ATC spindle tool change & dust foot
Software & Support
Warranty
1 Year as standard
Download Datasheet

Configure Your Machine

Optional Extras

TOTAL PRICE

£16,995 + VAT

Size: 1300 x 1300mm

Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.


    Includes delivery and final pricing based on your configuration.


    By submitting this form, you agree to be contacted by EXEL CNC about your quotation request and understand that delivery costs will be confirmed separately where applicable.


    By clicking send, I agree and consent to the Terms of Use and Privacy Policy, which explains how EXEL CNC use and collect personal information.


    Finance available from £409 per month*

    *Based on the machine price excluding VAT, with VAT payable upfront and a 60-month term.

    Finance is subject to status and eligibility. Terms and conditions apply.

    Get a finance quote

    Media

    Have a question?

    uk-icons

    The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.

    Contact Us

    Our 1313A enclosed industrial CNC router features a 6 station Auto tool changer. They are designed to accept a generous 4ft x 4ft stock piece of material with 305mm Z axis gantry clearance. The interlocked enclosure not only contains dust and debris but reduces cutting noise. The 1313A series are highly specced machines as standard with servos, vacuum bed and much more.
