March 17, 2026FL-1530N CNC
Enclosed Fiber Laser
Full-width vertical opening
Designed for safe, efficient operation.
Integrated sheet support
Simplifies material positioning.
CE-rated laser-safe glass
Clean, safe operation.
Choice of cutting heads 3kW - 12kW
21" Touchscreen with CypCut
Fast, intuitive machine control.
Full Size. High Speed. Production Ready.

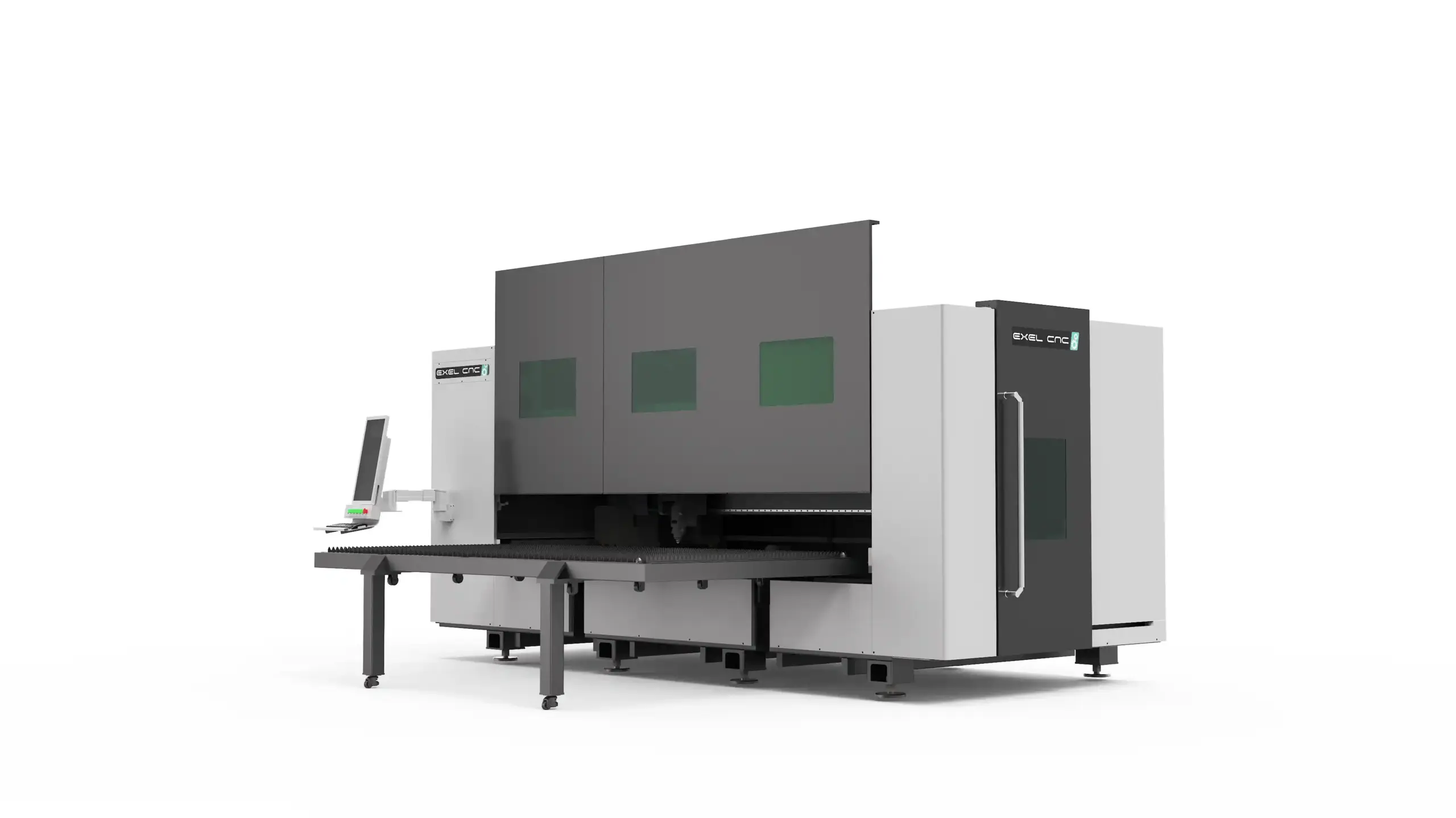

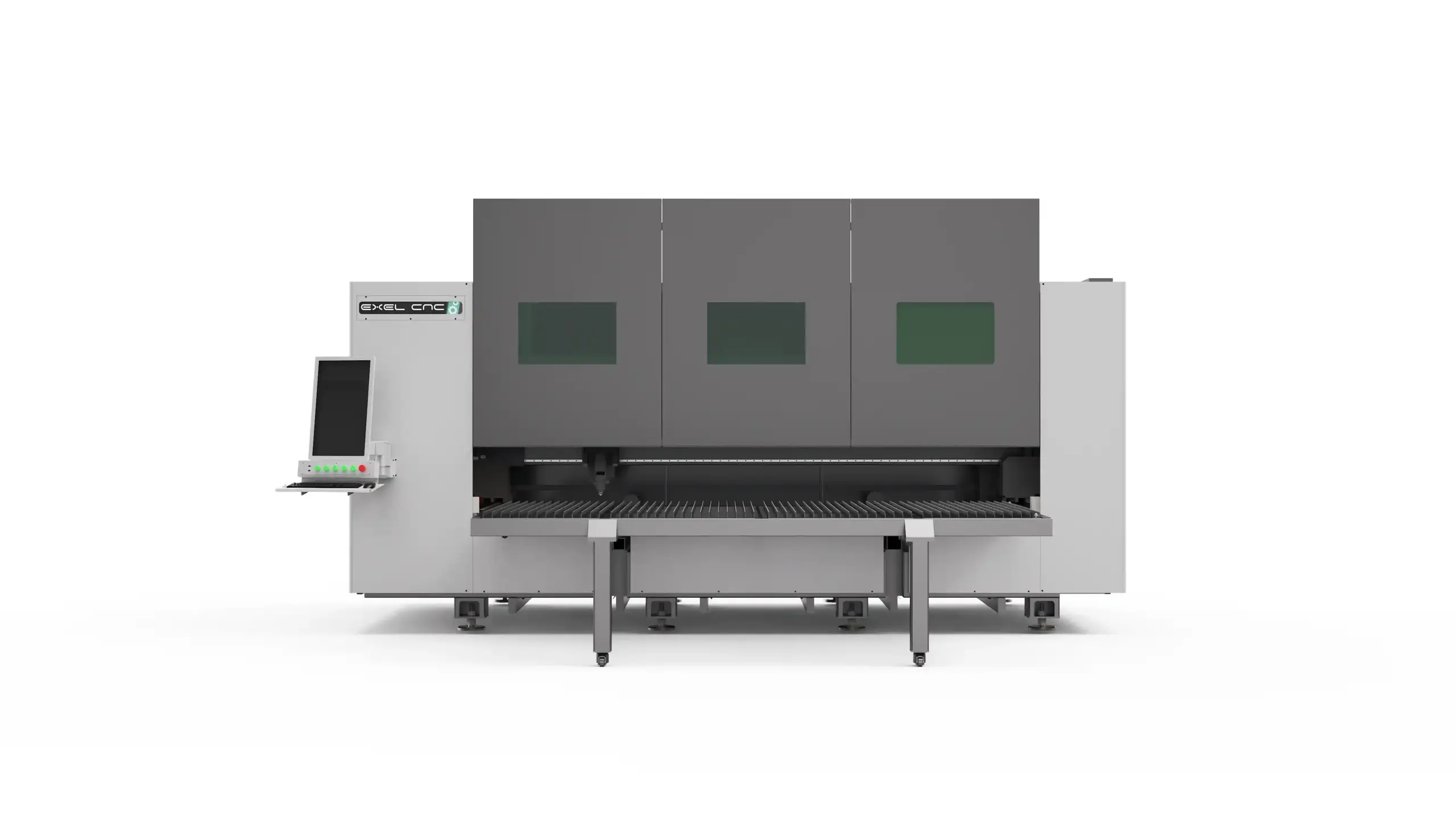

The FL-1530N is a full-size enclosed fiber laser cutting system built for serious sheet metal production. With a 3000 × 1500mm working area, high-speed servo-driven motion and laser power options up to 12kW, it delivers industrial cutting performance in a safe, fully enclosed platform.
Read more▾
Built on a heavy-duty welded tube chassis with full annealing and vibration stress relief, the FL-1530N is engineered for long-term structural stability. The gantry double-drive system, Delta servo motors and precision rack transmission ensure smooth motion and consistent cutting accuracy at speeds up to 105m/min.
A Raycus CE fiber source, XC3000S control system, Hanli water chiller, 5.5kW extraction system and automatic lubrication are included as standard, creating a powerful and reliable metal cutting platform ready for daily production use.
Suitable for cutting:
-
-
-
Stainless steel
-
Carbon steel
-
Manganese steel
-
Galvanized sheets
-
Alloy plates
-
Other metal sheets
-
-
Widely used in:
-
-
Engineering machinery
-
Aerospace
-
Automotive manufacturing
-
Electronics
-
Advertising & decorative industries
-
Household appliance production
-
-
FL 1530N Enclosed Fiber Laser (3000 × 1500mm)
-
Raycus CE Laser Source
-
XC3000S Control System
-
Delta Servo Motors & Drives
-
Hanli Water Chiller
-
5.5kW Exhaust / Extraction System
-
Electrical Cabinet Air Conditioning
-
Automatic Lubrication System
-
Free consumables (Nozzles & lenses ×10, ceramic rings ×3)
-

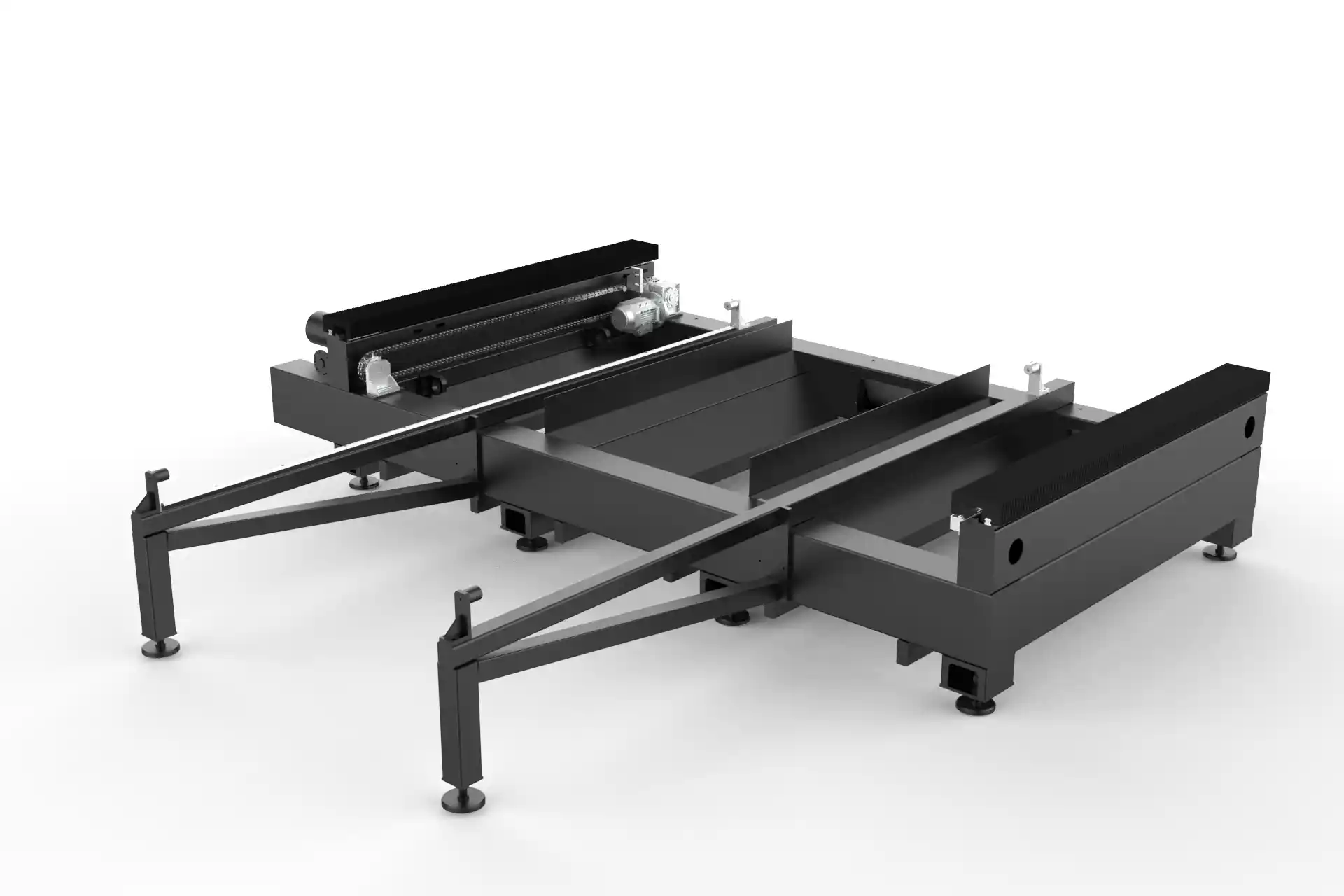

Heavy-duty welded tube chassis
-
Full annealing and vibration aging treatment to eliminate internal stress
-
Aviation-grade aluminium beam for improved dynamic performance
-
Gantry double-drive transmission structure
-
Fully automatic lubrication system
- Precision rack & pinion drive system
The rigid chassis and reinforced gantry design significantly reduce vibration during high-speed cutting, ensuring consistent precision.
The gantry double-drive structure improves motion stability at higher
speeds, while the aviation-grade aluminium beam reduces weight for
faster acceleration and smoother dynamic performance.

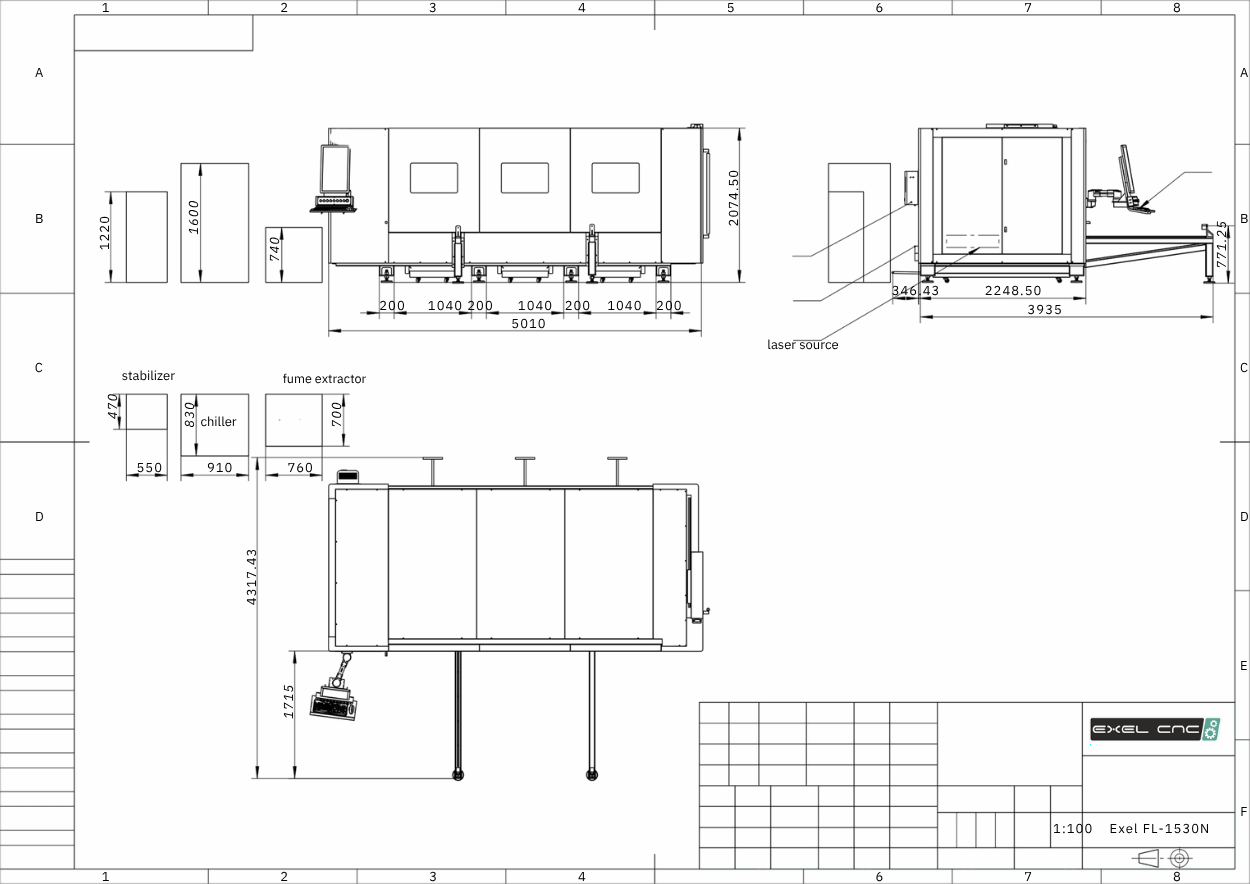

Specifications based on the 3000 x 1500mm model.
X: 850W | Y: 850W ×2 | Z: 400W
Configure Your Machine
Laser Power
Optional Extras
PRICE
Power: 1.5kW
Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.Finance available from £797 per month*
*Based on the 1.5kW machine price excluding VAT, with VAT payable upfront and a 60-month term.
Finance is subject to status and eligibility. Terms and conditions apply.
Get a finance quoteMedia
Ready to Upgrade Your Cutting Capability?
Speak to our team today for a tailored quote, material cutting advice, or to arrange a live machine demonstration.
Installation, training and support packages available.
The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.
The Exel CNC Fiber Laser FL-1530N is a high-performance 1530 fiber laser cutter with a full 3000 × 1500mm bed and power options from 1.5kW to 12kW. Driven by Delta servo motors, it delivers fast, precise and reliable sheet metal cutting for industrial production across the UK.
For a more compact option, view the FL-1313N, or compare with the open-bed FL-1530.
