FL 1313N

CNC Fiber Laser

DOOR
Vertical lift assist
door, CE laser glass WASTE REMOVAL
Swarf drawers to
catch waste cut outs CUTTING
Choice of cutting
heads from 2Kw
to 6Kw MATERIAL LOADING
Pull out drawer for
easy access CONTROLLER
Sleek 21" flat touch screen, easy
to use Cypcut software

Compact. Powerful. Production-Ready.

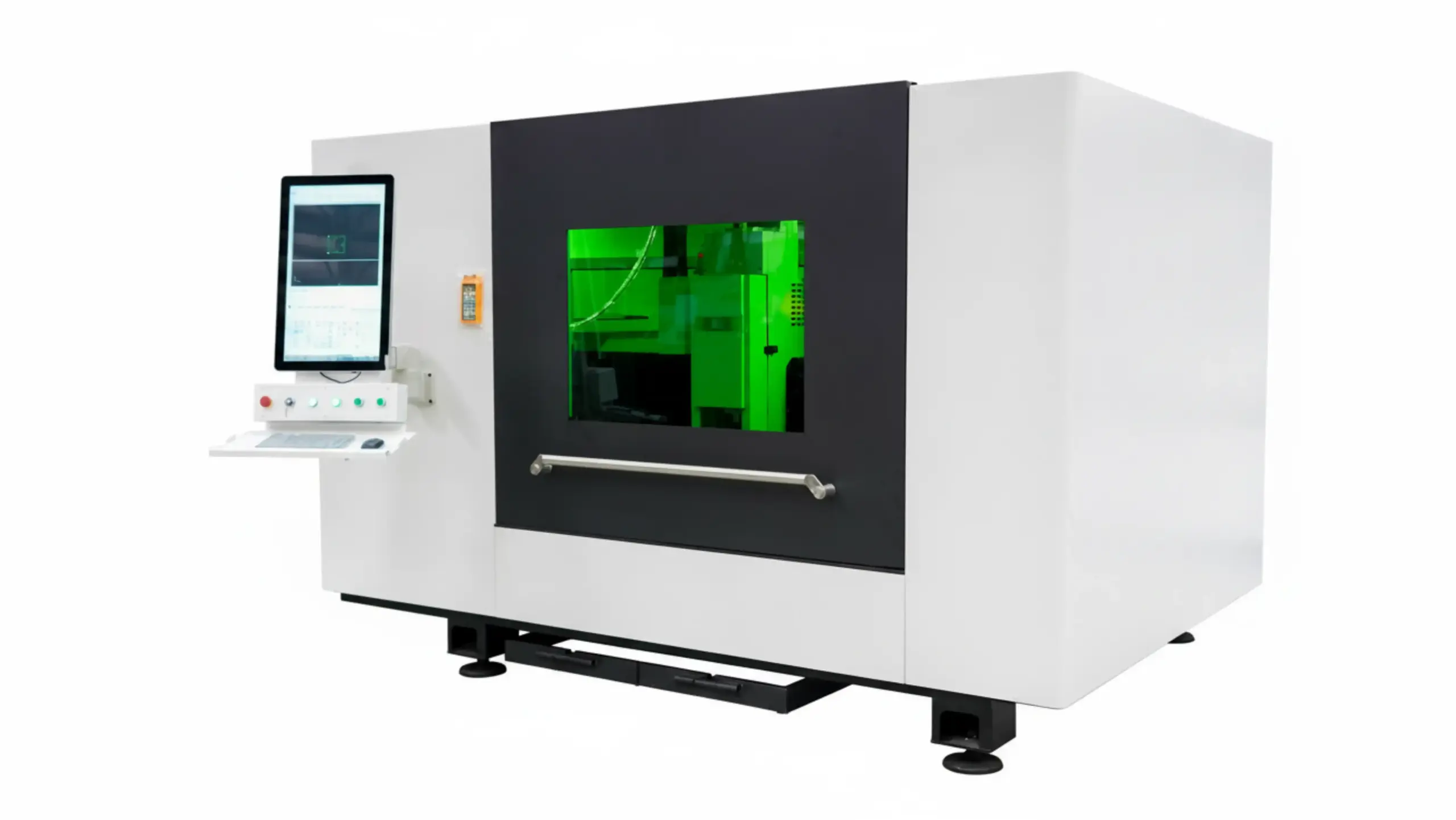

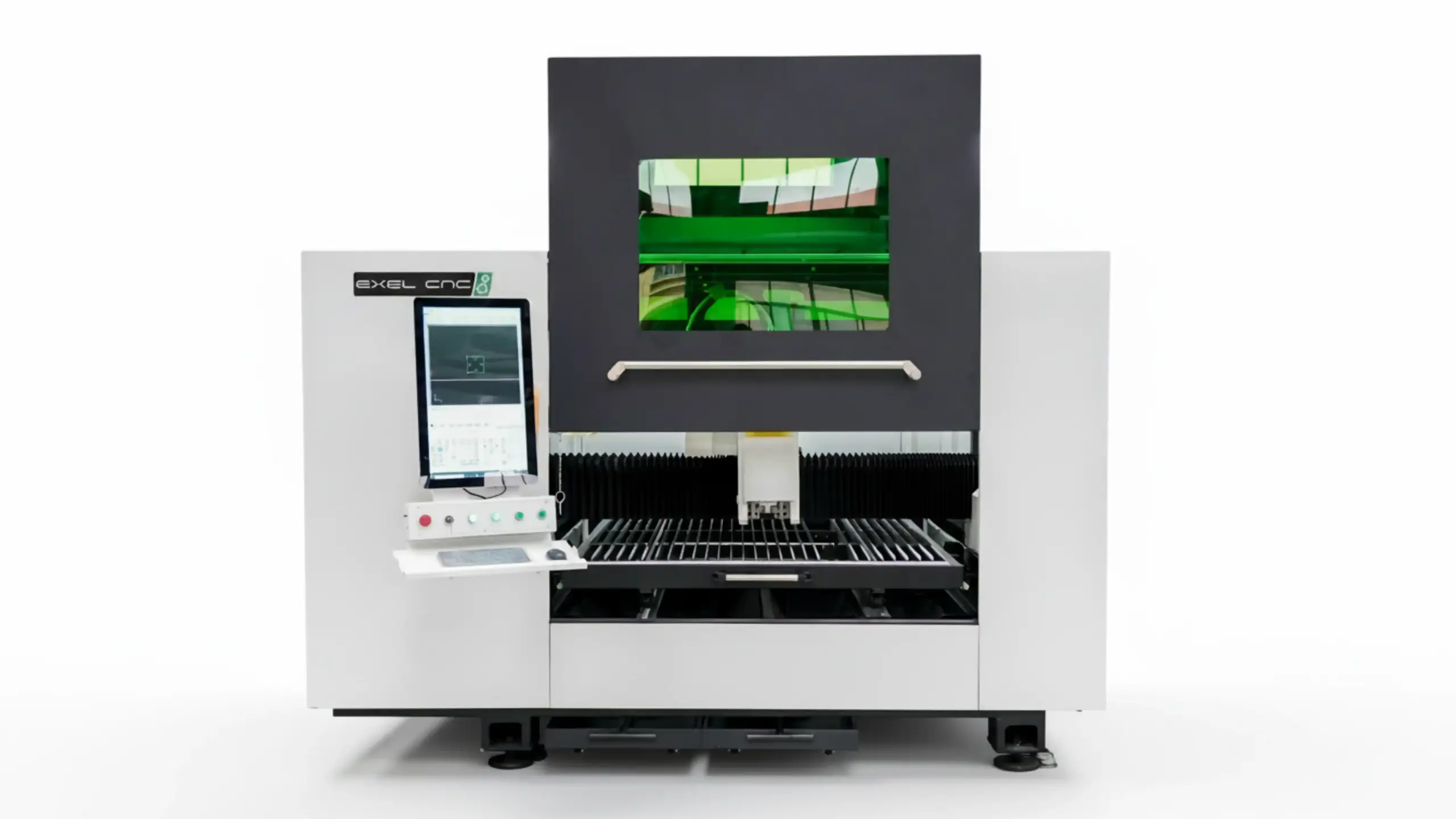

The FL-1313N enclosed fiber laser cutting machine is a compact, high-performance metal cutting platform designed for fast, accurate sheet processing in a space-efficient footprint. With a 1300 × 1300mm working area, servo drive motion and a rigid chassis, it’s ideal for workshops needing professional cutting capability without a full-size bed.

Read more▾

Built with an aviation-grade aluminium beam and gantry double-drive transmission, the 1313 is engineered for smooth motion and consistent results. A CypCut control system, Delta servo motors, automatic lubrication, integrated cooling and extraction complete a strong standard specification for day-to-day cutting work across stainless steel, carbon steel, galvanised sheet and alloy metals.

    • Suitable for cutting:

      • Stainless steel

      • Carbon steel

      • Manganese steel

      • Galvanized sheets

      • Alloy plates

      • Other metal sheets

      Widely used in:

      • Engineering machinery

      • Aerospace

      • Automotive manufacturing

      • Electronics

      • Advertising & decorative industries

      • Household appliance production

    • 1313 enclosed fiber laser cutting machine (1300 × 1300mm working area)

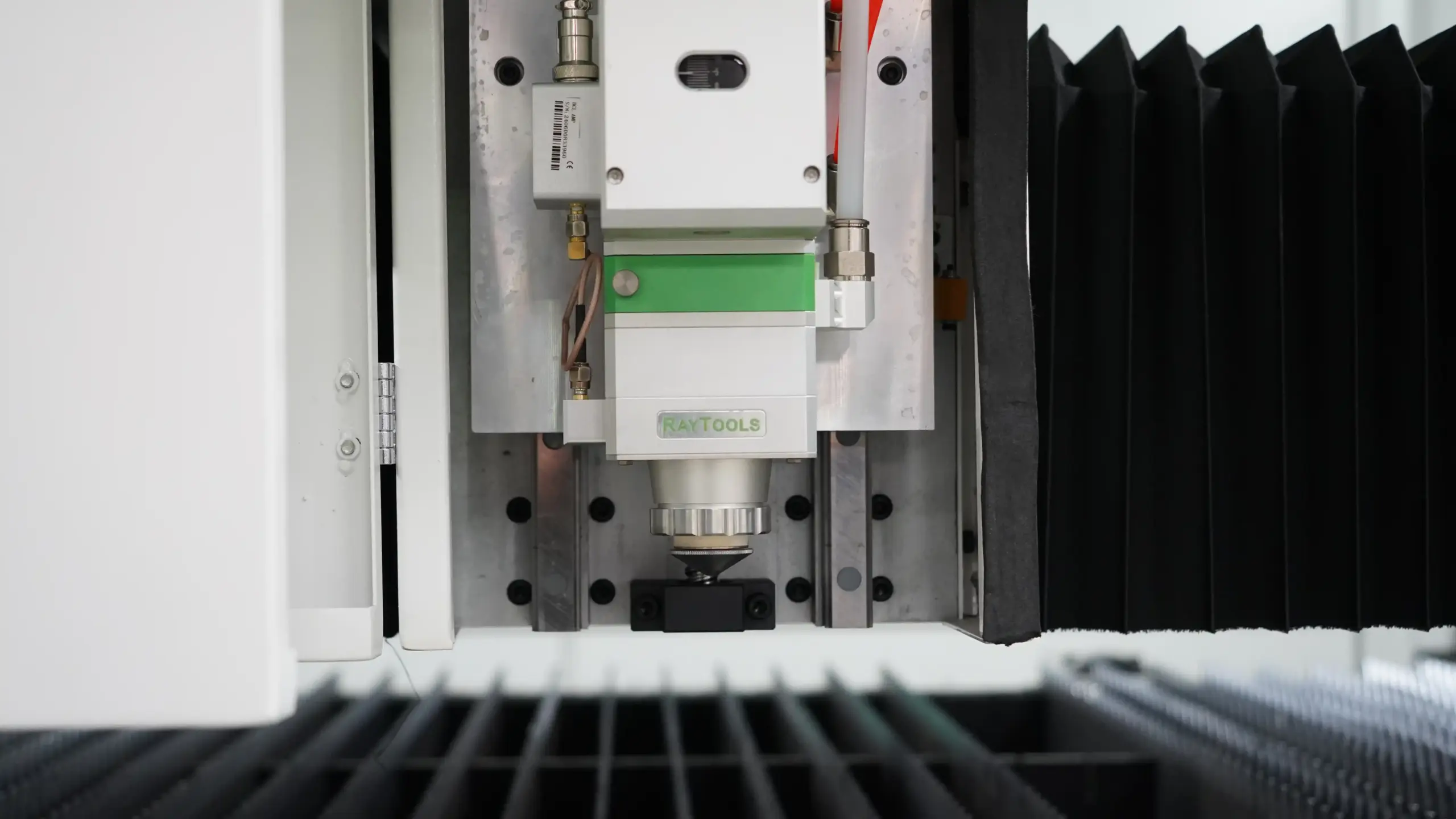

    • BOCI 310 laser cutting head
    • CypCut 2000E control system
    • Delta servo motors/drives (X 750W, Y 750W ×2, Z 400W)
    • Hanli water chiller (3–6kW)
    • 3kW exhaust / extraction fan
    • Air conditioner for electrical cabinet
    • Automatic lubrication system
    • Free consumables: Nozzles & protective lenses ×10, ceramic rings ×3

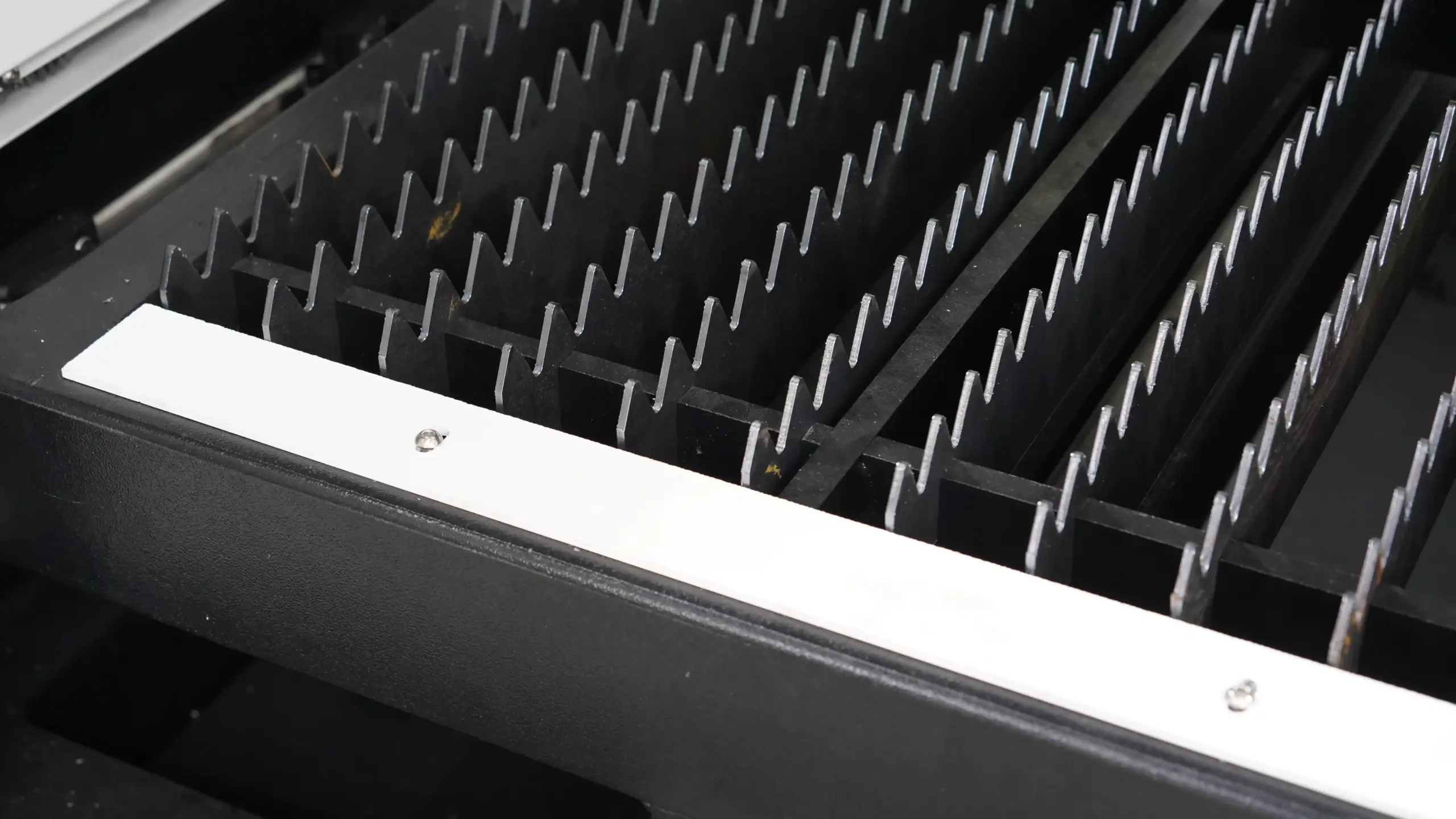

  • Honeycomb carbon steel welded bed

  • Full annealing and vibration aging treatment to eliminate internal stress

  • Aviation-grade aluminium beam for improved dynamic performance

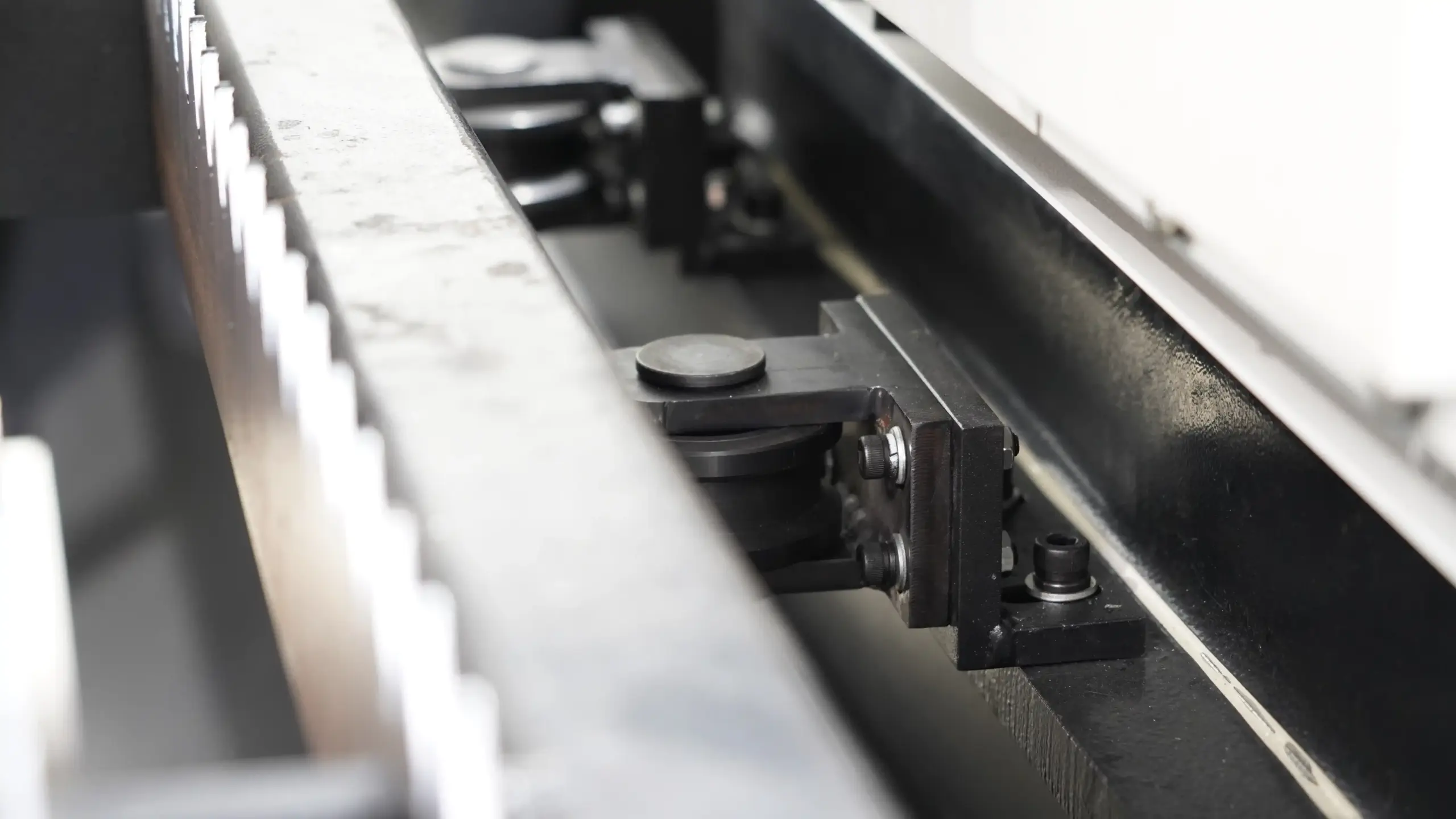

  • Gantry double-drive transmission structure

  • Fully automatic lubrication system

The rigid chassis and reinforced gantry design significantly reduce vibration during high-speed cutting, ensuring consistent precision.

Machine Size & Capacity

Machine Dimensions (L x W x H)
2000 × 2236 × 1600mm
Working Area (X x Y)
1300 × 1300mm
Weight
2550kg
Performance
Max Linkage Speed
70m/min
Max Acceleration
0.8G
Positioning Accuracy
±0.05mm / 1000mm
Repositioning Accuracy
±0.03mm / 1000mm
Build & Motion System
Drive System
Delta Servo Motors (X/Y/Z Axis)
Reducer
Japan Shimpo / France Motoreducer
Guide Rail
KINGTEC / PEK
Laser System
Laser Type
Fiber
Laser Power Options
2kW / 3kW / 6kW (model dependent)
Laser Head
BOCI 310
Laser Generator
Raycus
Control & Operation
Control System
Cypcut 2000E
Technical & Power
Total Power Consumption
12.3kW
Software & Support
Warranty
2 Years
Download Datasheet

Configure Your Machine

Laser Power
Optional Extras

PRICE

£29,000 + VAT

Power: 2kW

Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.


    Includes delivery and final pricing based on your configuration.


    By submitting this form, you agree to be contacted by EXEL CNC about your quotation request and understand that delivery costs will be confirmed separately where applicable.


    By clicking send, I agree and consent to the Terms of Use and Privacy Policy, which explains how EXEL CNC use and collect personal information.


    Finance available from £659 per month*

    *Based on the 2kW machine price excluding VAT, with VAT payable upfront and a 60-month term.

    Finance is subject to status and eligibility. Terms and conditions apply.

    Get a finance quote

    Media

    Compare Our Fiber Laser Cutting Machines

    Model Working Area Power Options Design Best For View
    FL 1313N 1300 × 1300mm 2kW / 3kW / 6kW Fully Enclosed Compact workshops & entry production View Machine →
    FL 1530 3000 × 1500mm 1.5kW / 3kW / 6kW Open Bed General fabrication & value production View Machine →
    FL 1530N 3000 × 1500mm 3kW / 6kW / 12kW Fully Enclosed Industrial & high-volume production View Machine →
