March 18, 2026TL-160 CNC
Tube Laser Cutter
User-friendly touchscreen interface with integrated cutting software.
Rigid steel structure for stability and consistent cutting accuracy.

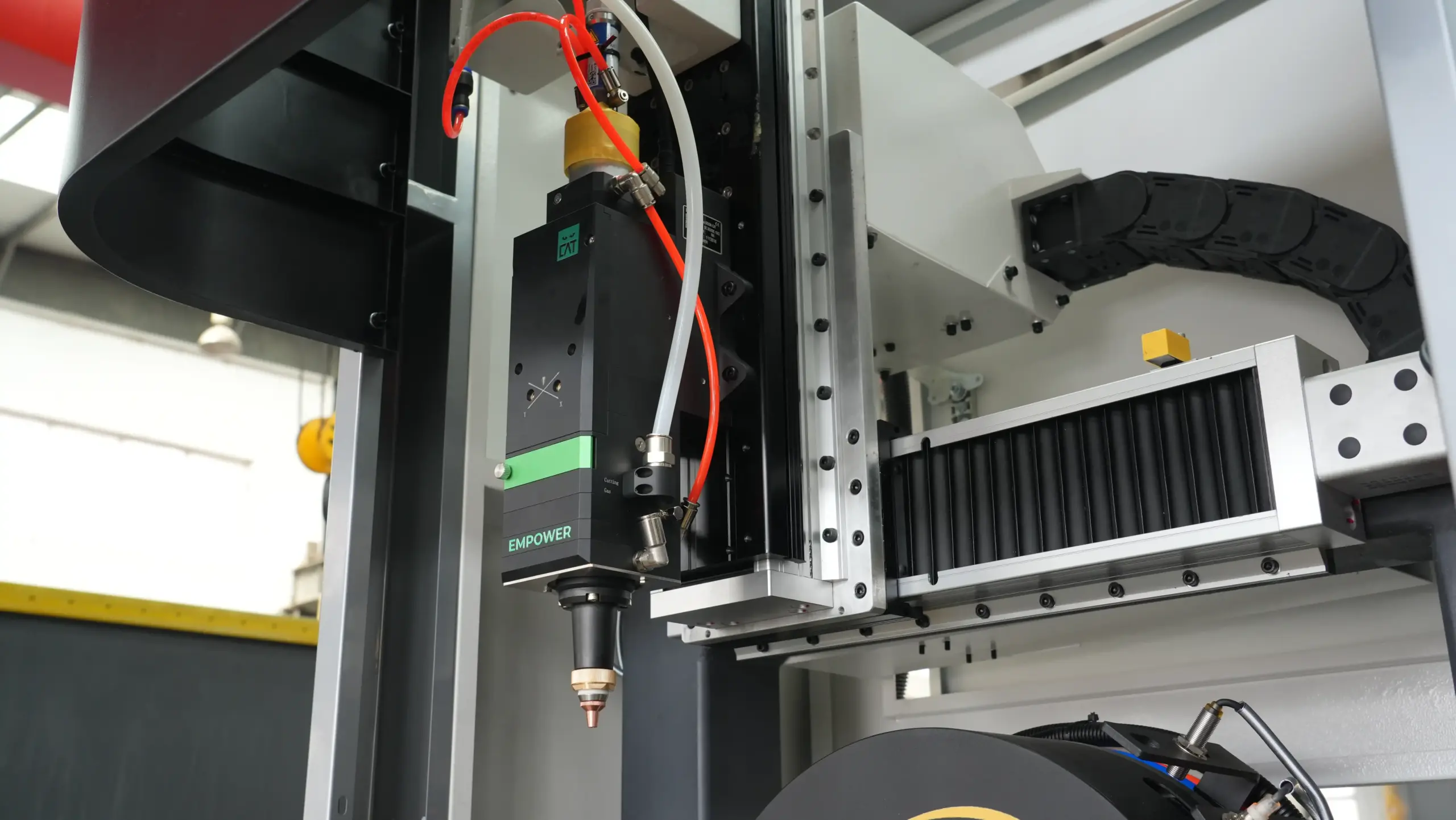

High-precision fiber laser head with automatic focus adjustment.

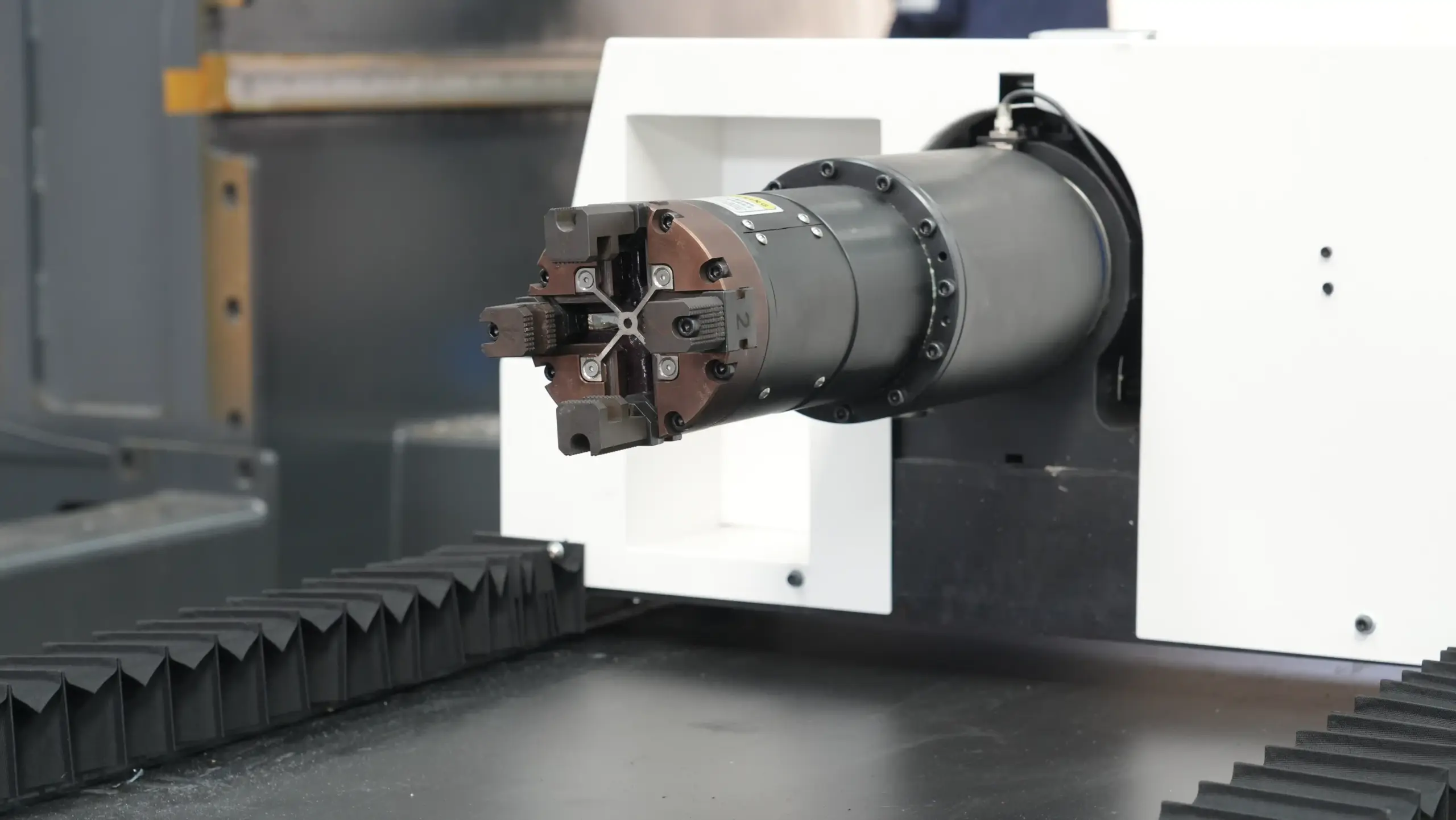

Securely grips and rotates tube for accurate cutting.
Supports long tube to prevent sagging during processing.
Precision Tube Cutting. High Speed. Production Ready.

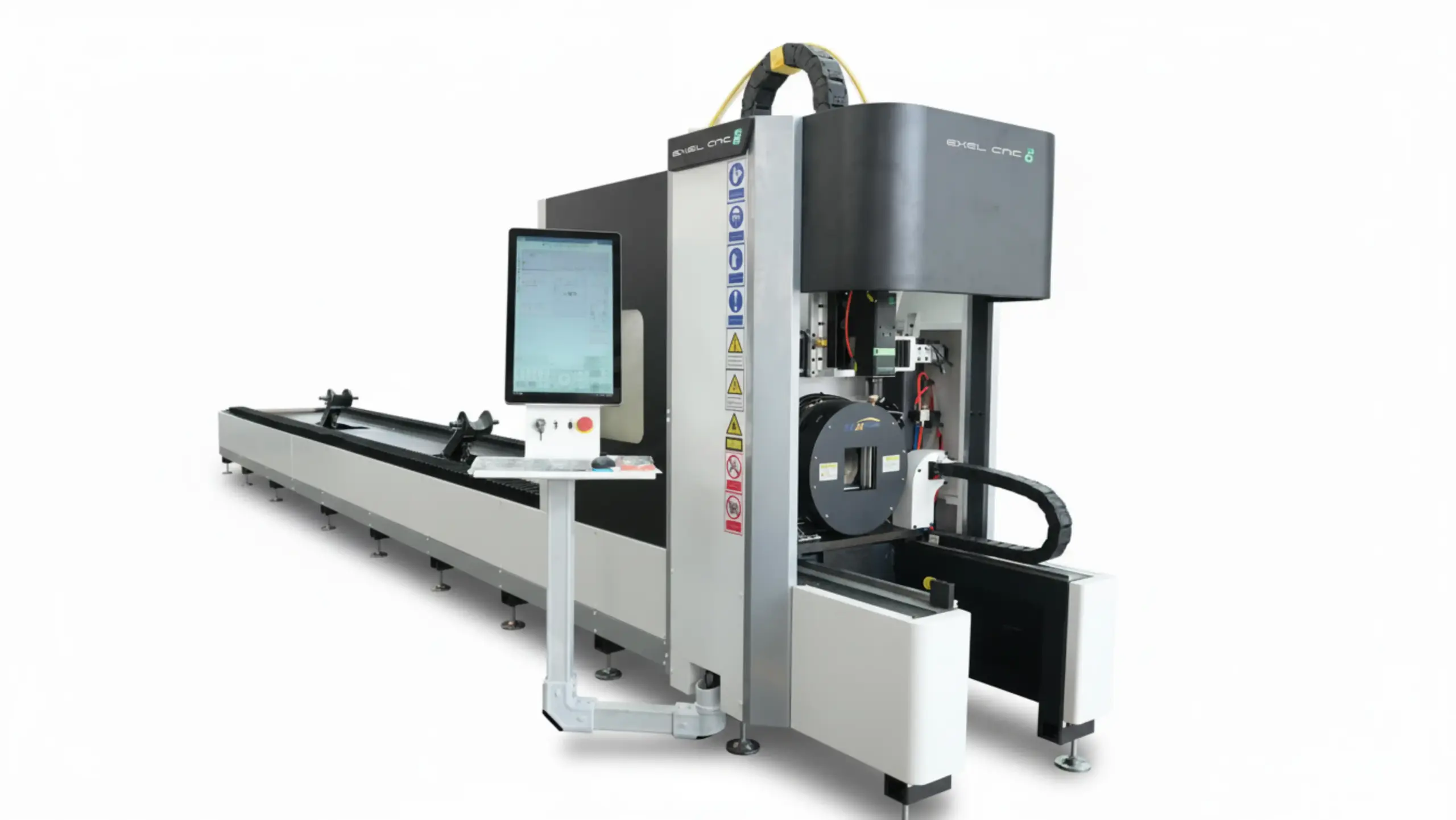

The Exel CNC TL-160 is a high-performance tube laser cutting machine designed for accurate processing of round, square and rectangular tube. Built on a rigid welded machine bed with a high-precision servo motion system, it delivers fast, repeatable cutting for modern metal fabrication environments.
Read more▾
With a maximum tube length capacity of up to 6 metres and support for profiles up to Ø160mm, the TL-160 is ideal for manufacturers producing structural components, frames, furniture and fabrication parts. The integrated rotary chuck system securely holds and rotates tube during cutting, allowing complex profiles, slots, holes and end cuts to be produced with exceptional accuracy.
Powered by a fiber laser source from 1kW to 3kW, the machine offers high cutting efficiency with low operating costs. Combined with advanced CNC control software, automatic laser head focusing and intelligent cutting process databases, the TL-160 ensures consistent cutting performance across a wide range of materials and tube sizes.
Designed for reliability and ease of operation, the TL-160 combines industrial-grade construction with modern control technology to provide a dependable solution for high-volume tube processing.
-
Raycus Fiber Laser Source (CE Certified)
-
Raytools Automatic Focusing Laser Head
-
Delta Servo Motor Drive System
-
Dual Pneumatic Rotary Chuck System
-
Heavy-Duty Welded Machine Bed
-
Rack & Pinion Transmission with Linear Guide Rails
-
Industrial CNC Control System with 21" Display
-
High-Speed Tube Cutting Process Database
-
Automatic Tube Centre Finding & Edge Detection
-
Automatic Cutting Gas Pressure Regulation
-
Integrated Electrical Control Cabinet
-
Water Chiller Cooling System
-
Safety Door Interlock System
-
Heavy-Duty Welded Steel Machine Bed
-
Dual Pneumatic Rotary Chuck System
-
High Precision Linear Guide Rails
-
Rack & Pinion Transmission System
-
Industrial Servo Motor Drive System
- Integrated Electrical Control Cabinet
The TL-160 is built for demanding industrial environments where stability and precision are essential.
Its rigid welded frame, precision motion components and high-quality drive system work together to ensure smooth operation, accurate tube positioning and reliable performance during continuous production.
This robust construction helps maintain cutting accuracy while supporting high-speed tube processing across a wide range of materials.
Tube laser cutting machines are widely used across many manufacturing industries where accurate tube processing is required.
Typical applications include:
-
Metal Furniture Manufacturing
-
Architectural & Structural Steelwork
-
Automotive Components & Frames
-
Agricultural Machinery Parts
-
Fitness Equipment Manufacturing
-
Metal Fabrication & Engineering Workshops
-
Signage & Display Structures
-
Handrails, Gates & Balustrades

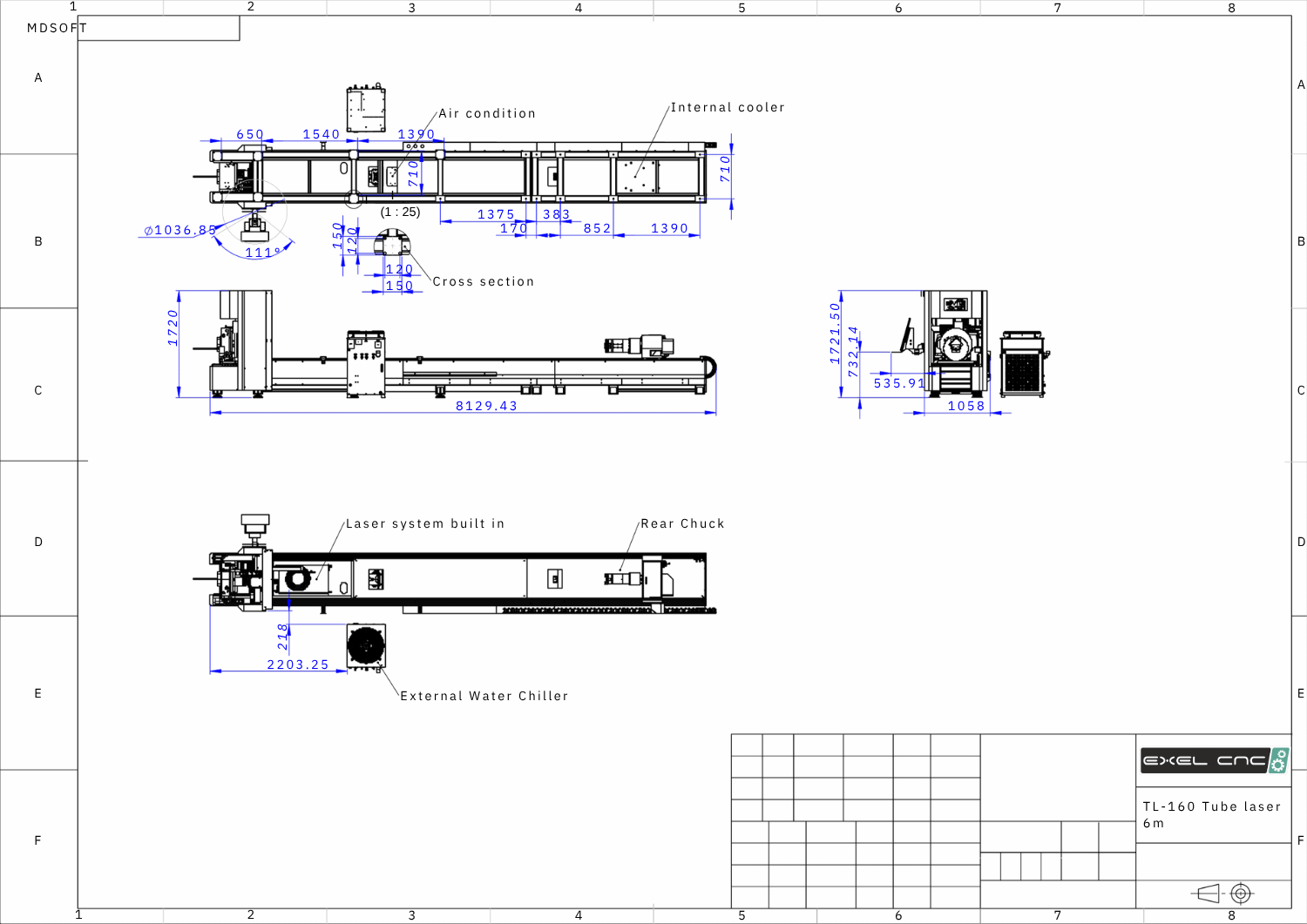

Specifications based on the 6m model.
Square: 160 × 160mm
Max Circumscribed Diameter: Ø165mm
X: 850W | Y: 1.3kW | Z: 400W
Front Chuck: 1.3kW | Rear Chuck: 1.3kW
Optional: MAX / IPG
Configure Your Machine
Machine Length
Laser Power
Optional Extras
PRICE
Length: 3m | Power: 1.5kW
Delivery Information
Final delivery cost is quoted separately based on your machine specification, location and site access. We only charge the actual delivery cost.Finance available from £797 per month*
*Based on the price excluding VAT, with VAT payable upfront and a 60-month term.
Finance is subject to status and eligibility. Terms and conditions apply.
Get a finance quoteMedia
Ready to Upgrade Your Cutting Capability?
Speak to our team today for a tailored quote, material cutting advice, or to arrange a live machine demonstration.
Installation, training and support packages available.
The class leading designs and tailored solutions make Exel CNC automation the 1st choice for high quality machines. Please contact us if you have any questions about our products or services.
Compact. Powerful. Tube Processing Made Easy. The TL-160 CNC Tube Laser Cutter delivers fast, accurate cutting of round, square and rectangular tube up to Ø160mm diameter and 6m length. Built on a rigid welded machine bed with precision servo motion control, it provides stable, repeatable cutting for structural fabrication and industrial production.
For sheet metal cutting, view our CNC fiber laser cutters such as the FL-1530N fiber laser cutter.
